30575 - Toro 72" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G CRANKSHAFT AND FLYWHEEL Parts Diagram

72" Side-Discharge Mower Deck

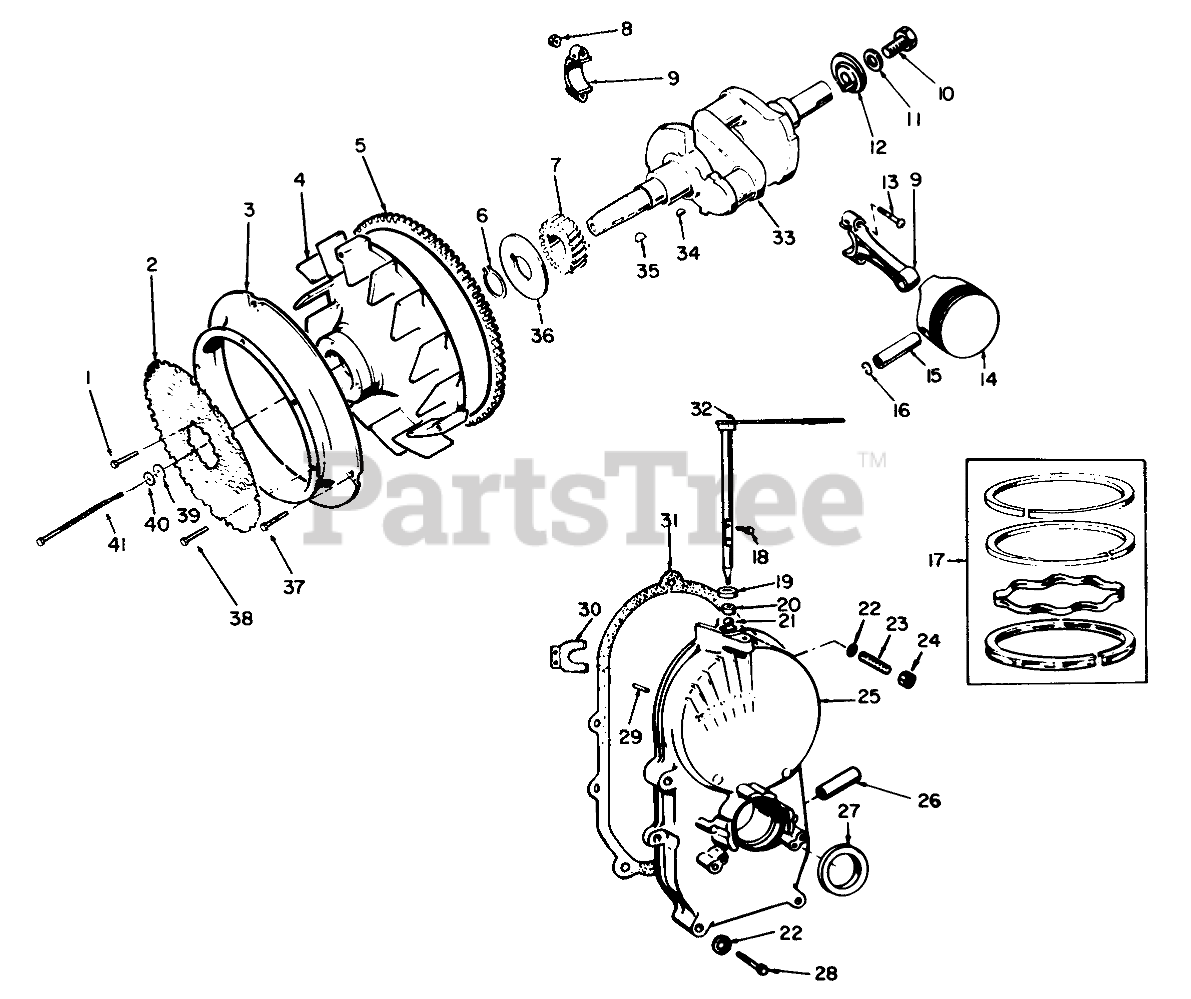

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G CRANKSHAFT AND FLYWHEEL Parts Diagram

  • Title

1

Toro 59-1120

HX HD LOCK CAPSCREW

$

$

Not available

2

Toro 57-8650

SCREW W/INLET

$

$

Not available

3

Toro 57-8610

BLOWER VENTURI

$

$

Not available

4

Toro 57-8630

Flywheel (Incl. Ref. #5)

$

$

Not available

5

Toro 57-8180

GEAR

$

$

Not available

6

Toro 57-9710

RING

$

$

Not available

7

Toro 57-8130

GEAR

$

$

Not available

8

Toro 57-9790

NUT

$

$

Not available

9

Toro 57-8420

Rod, Connecting-Standard (Incl. Ref. #8 & 13)

$

$

Not available

Toro 57-8430

Rod, Connecting (.010 Undersize)(Incl. Ref. #8 & 13)

Note: Not illustrated

$

$

Not available

Toro 57-8440

Rod, Connecting (.020 Undersize)(Incl. Ref. #8 & 13)

Note: Not illustrated

$282.99

$

Usually ships in 3-6 days

0

Toro 59-0250

Rod, Connecting (.030 Undersize)(Incl. Ref. #8 & 13)

Note: Not illustrated

$

$

Not available

10

Toro 59-1160

HX HD CAPSCREW

$

$

Not available

11

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

12

Toro 57-8190

Weight, Balance

$

$

Not available

13

Toro 57-8410

BOLT

$

$

Not available

14

Toro 57-8350

Piston & Pin-Standard (Incl. Ref. #15 & 16)
(Superseded to 82-1800)

$

$

Not available

Toro 59-0190

Piston & Pin (.005 Oversize)(Incl. Ref. #15 & 16)

Note: Not illustrated

$

$

Not available

Toro 57-8360

Piston & Pin (.010 Oversize)(Incl. Ref. #15 & 16)
(Superseded to 92-0902)

Note: Not illustrated

$

$

Not available

Toro 57-8370

Piston & Pin (.020 Oversize)(Incl. Ref. #15 & 16)
(Superseded to 92-0903)

Note: Not illustrated

$

$

Not available

Toro 59-0200

Piston & Pin (.030 Oversize)(Incl. Ref. #15 & 16)
(Superseded to 92-0904)

Note: Not illustrated

$

$

Not available

Toro 59-0210

Piston & Pin (.040 Oversize)(Incl. Ref. #15 & 16)

Note: Not illustrated

$

$

Not available

15

Toro 57-8340

PIN

$

$

Not available

16

Toro 57-9720

Piston Pin

$

$

Not available

17

Toro 57-8380

RING SET

$

$

Not available

Toro 59-0220

Piston Ring Set .005" Oversize

Note: Not illustrated

$

$

Not available

Toro 57-8390

RING SET

Note: Not illustrated

$129.99

$

Usually ships in 3-6 days

0

Toro 57-8400

Piston Ring Set .020" Oversize

Note: Not illustrated

$

$

Not available

Toro 59-0230

RING SET .030 OS

Note: Not illustrated

$

$

Not available

Toro 59-0240

Ring Set-Piston .040" oversize

Note: Not illustrated

$

$

Not available

18

Toro 59-0950

SCREW-PAN HD

$

$

Not available

19

Toro 57-9630

BALL

$

$

Not available

20

Toro 57-9650

BEARING

$

$

Not available

21

Toro 57-9570

SEAL

$

$

Not available

22

Toro 57-9750

WASHER

$

$

Not available

23

Toro 59-0790

STUD-GEAR COVER

$

$

Not available

24

Toro 59-1130

NUT-GEAR COVER

$

$

Not available

25

Toro 57-8120

Gear Case Assembly (Incl. Ref. #18-21, 23-24, 27-28 & 30)
(Superseded to 71-6350)

$1779.99

$

Usually ships in 3-6 days

0

26

Toro 59-0360

TUBE-PORT, VACUUM

$

$

Not available

27

Toro 57-9580

SEAL

$

$

Not available

28

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

29

Toro 59-0740

PIN-DOWEL

$6.49

$

In Stock, only 1 left!

0

30

Toro 59-0420

YOKE

$

$

Not available

31

Toro 57-8110

Ring Gear
(Superseded to 71-6360)

$

$

Not available

32

Toro 59-0440

SHAFT/ARM-GOVERNOR

$

$

Not available

33

Toro 57-8200

CRANKSHAFT

$

$

Not available

34

Toro 57-9660

KEY

$7.99

$

Usually ships in 3-6 days

0

35

Toro 57-9670

KEY KIT

$

$

Not available

36

Toro 57-8140

WASHER

$

$

Not available

37

Toro 59-1100

SCREW-HWH

$

$

Not available

38

Toro 59-1040

Screw, Tapping Hex Washer Hd.

$

$

Not available

39

Toro 59-0810

WASHER-FLAT

$

$

Not available

40

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

41

Toro 57-8150

SCREW

$

$

Not available
