30575 - Toro 72" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) CUTTING UNIT MODEL NO. 30555 Parts Diagram

72" Side-Discharge Mower Deck

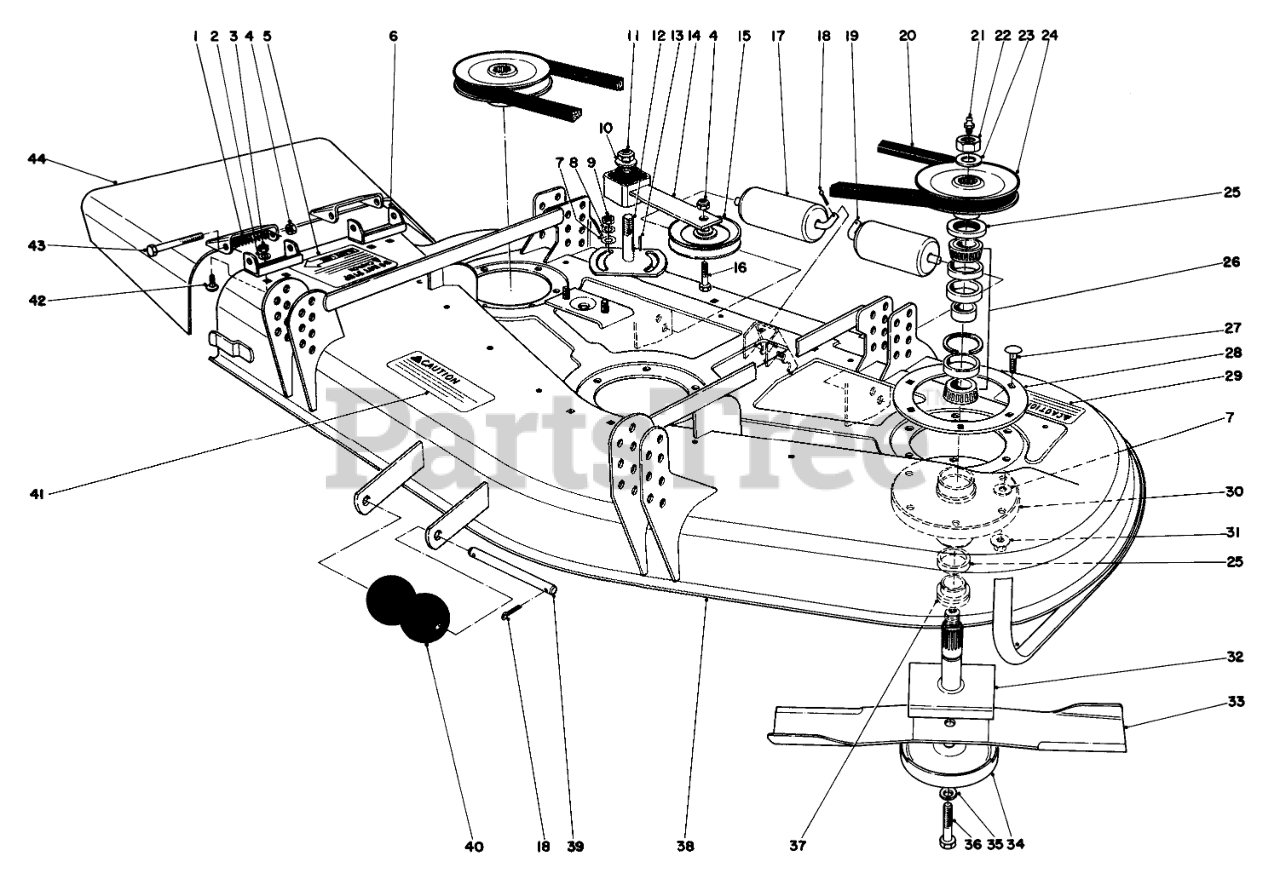

CUTTING UNIT MODEL NO. 30555 Parts Diagram

  • Title

1

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

4

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

5

Toro 40-5730

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 3 left!

0

6

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

9

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

10

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

11

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

12

Toro 28-9060

PLATE-IDLER

$179.99

$

Usually ships in 3-6 days

0

13

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, Qty 12

0

14

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$160.99

$

In Stock, only 3 left!

0

15

Toro 52-4580

Pulley
(Superseded to 99-5678)

$65.99

$

Usually ships in 3-6 days

0

16

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

17

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

18

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

19

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

20

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 4 left!

0

21

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

22

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

23

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

24

Toro 27-0970

PULLEY AND HUB ASM
(Superseded to 27-0970-03)

$53.99

$

Usually ships in 3-6 days

0

25

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 11

0

26

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, Qty 7

0

27

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

28

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

29

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

30

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

31

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

32

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

33

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, Qty 8

0

34

Toro 27-1000

Cup-Scalp
(Superseded to 72-9361)

$42.99

$

Usually ships in 3-6 days

0

35

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

36

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

37

Toro 27-0950

SPACER

$31.99

$

In Stock, only 2 left!

0

38

Toro 40-0020

GM 52 DECK WA RO

$

$

Not available

39

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

40

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

41

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

42

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

43

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

44

Toro 40-6200

Deflector
(Superseded to 13-3949)

$

$

Not available

Toro 44-5480

BLADE-HIGH SAIL

Note: Not illustrated

$25.99

$

Usually ships in 3-6 days

0
