30575 - Toro 72" Side-Discharge Mower Deck (SN: 006000001 - 006999999) (1986) DEFLECTOR & COVER ASSEMBLY Parts Diagram

72" Side-Discharge Mower Deck

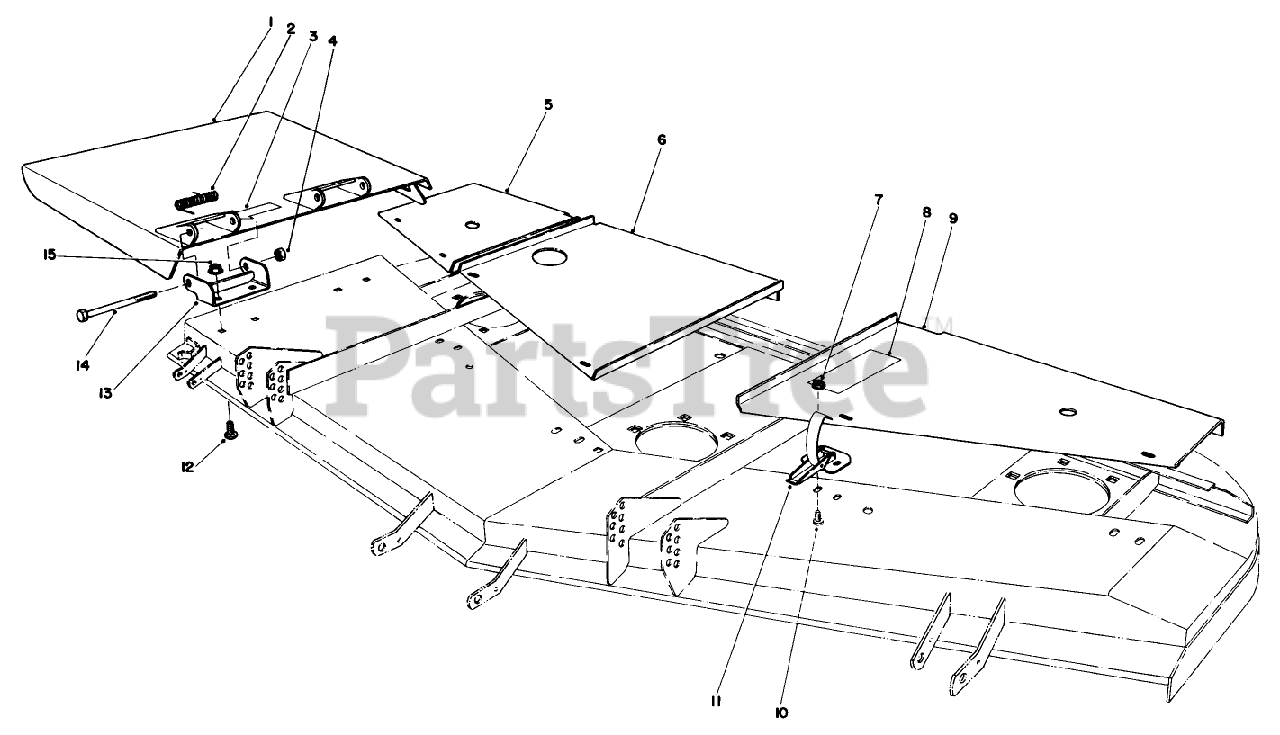

DEFLECTOR & COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 52-5790

Deflector
(Superseded to 14-0909)

$403.99

$

Usually ships in 3-6 days

0

2

Toro 51-1550

SPRING

$13.99

$

In Stock, only 2 left!

0

3

Toro 26-7120

DECAL - BLADE LINE

$

$

Not available

4

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

5

Toro 57-0230

Cover R.H.
(Superseded to 98-7928-01)

$

$

Not available

6

Toro 57-0210

Cover-Center
(Superseded to 57-0210-01)

$

$

Not available

7

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 18

0

8

Toro 42-6860

DECAL

$

$

Not available

9

Toro 57-0220

Cover L.H
(Superseded to 98-7930-01)

$

$

Not available

10

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

11

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

12

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

13

Toro 51-1530

Bracket-Hinge
(Superseded to 51-1530-01)

$40.99

$

Usually ships in 3-6 days

0

14

Toro 325-17

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

15

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
