30575 - Toro 72" Side-Discharge Mower Deck (SN: 000000001 - 000099999) (1990) TRANSMISSION ASSEMBLY 49-7910 Parts Diagram

72" Side-Discharge Mower Deck

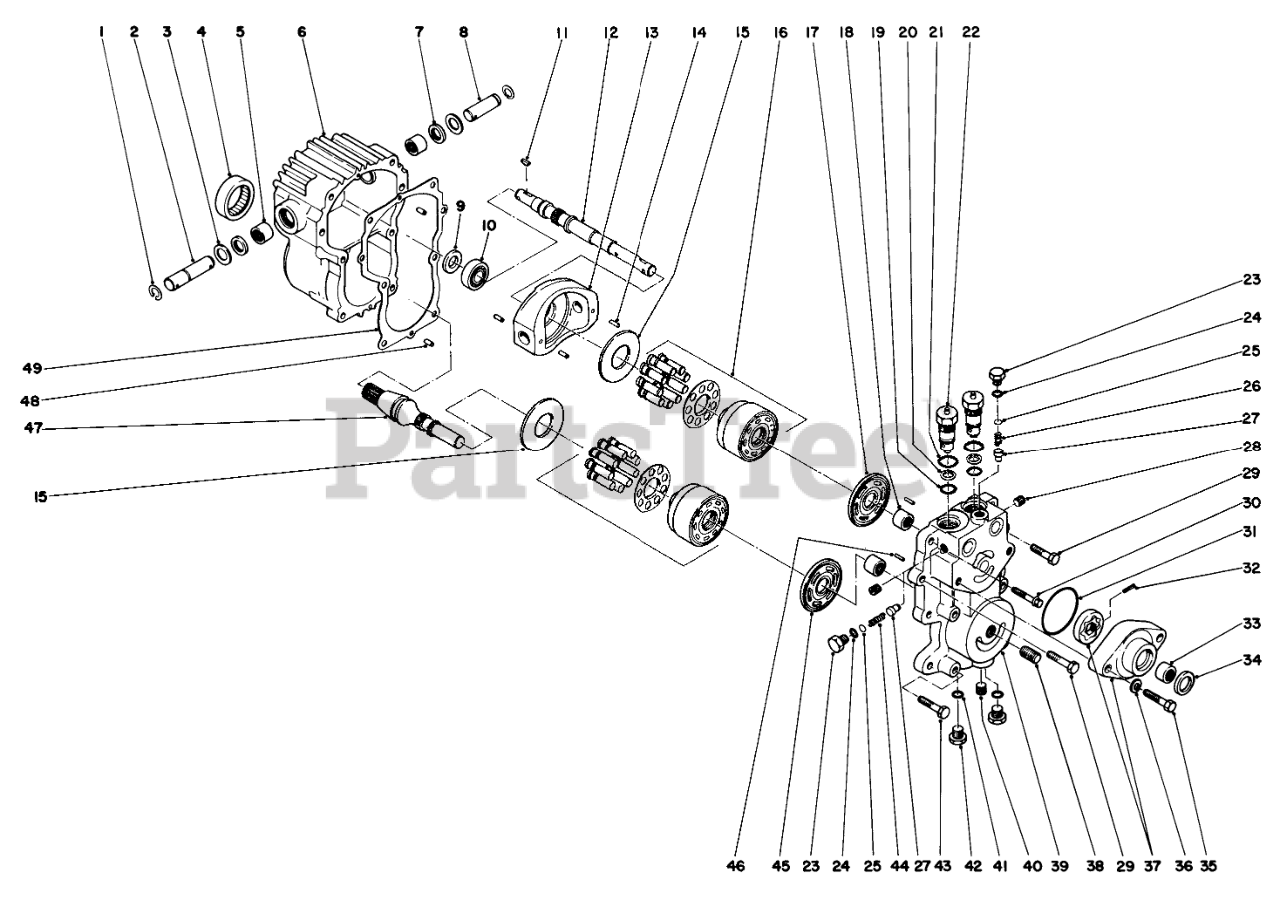

TRANSMISSION ASSEMBLY 49-7910 Parts Diagram

  • Title

1

Toro 32151-46

RING-RETAINING

$9.49

$

Usually ships in 3-6 days

0

2

Toro 25-2500

SHAFT-TRUNNION

$231.99

$

Usually ships in 3-6 days

0

3

Toro 25-2510

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

4

Toro 28-3300

BEARING-ROLLER

$190.99

$

Usually ships in 3-6 days

0

5

Toro 28-3310

Bearing-Needle
(Superseded to 252-82)

$55.99

$

Usually ships in 3-6 days

0

6

Toro 49-7870

Housing
(Superseded to 92-5709)

$

$

Not available

7

Toro 25-3210

SEAL-LIP

$24.99

$

In Stock, only 2 left!

0

8

Toro 28-3670

SHAFT-TRUNNION

$178.99

$

Usually ships in 3-6 days

0

9

Toro 28-3660

Up Seal
(Superseded to 93-4133)

$44.99

$

Usually ships in 3-6 days

0

10

Toro 28-3650

BEARING-BALL
(Superseded to 251-8)

$32.99

$

Usually ships in 3-6 days

0

11

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

12

Toro 28-3640

SHAFT-PUMP

$1259.99

$

Usually ships in 3-6 days

0

13

Toro 49-7820

Swashplate-Variable
(Superseded to 25-2450)

$1215.99

$

Usually ships in 3-6 days

0

14

Toro 32121-91

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

15

Toro 25-2380

PLATE-THRUST

$36.99

$

Usually ships in 3-6 days

0

16

Toro 48-1800

CYLINDER BLOCK KIT

$2632.99

$

Usually ships in 3-6 days

0

17

Toro 46-7320

PLATE-VALVE, PUMP

$

$

Not available

18

Toro 25-3300

BEARING-NEEDLE

$127.99

$

Usually ships in 3-6 days

0

19

Toro 28-3590

O-RING

$5.99

$

Usually ships in 3-6 days

0

20

Toro 28-3580

RING-BACK UP

$24.99

$

Usually ships in 3-6 days

0

21

Toro 28-3570

O-RING

$7.49

$

Usually ships in 3-6 days

0

22

Toro 49-7830

Check Valve Assembly (Incl. Ref. #19-21)

$375.99

$

Usually ships in 3-6 days

0

23

Toro 25-2460

PLUG-HH

$44.99

$

Usually ships in 3-6 days

0

24

Toro 28-3400

O-RING

$7.99

$

Usually ships in 3-6 days

0

25

Toro 25-2470

PACK-SHIM

$59.99

$

Usually ships in 3-6 days

0

26

Toro 46-7310

SPRING

$25.99

$

Usually ships in 3-6 days

0

27

Toro 28-3420

Cone-Charge Relief
(Superseded to 83-7260)

$68.99

$

Usually ships in 3-6 days

0

28

Toro 285-17

PLUG-PIPE

$3.49

$

Usually ships in 3-6 days

0

29

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 28-3530

CAPSCREW

$5.49

$

Usually ships in 3-6 days

0

31

Toro 28-3520

O-RING

$10.99

$

Usually ships in 3-6 days

0

32

Toro 38-2680

PIN

$26.99

$

Usually ships in 3-6 days

0

33

Toro 28-3480

BEARING

$89.99

$

Usually ships in 3-6 days

0

34

Toro 28-3470

SEAL-LIP

$46.99

$

Usually ships in 3-6 days

0

35

Toro 324-23

SCREW-HH
(Superseded to 92-1773)

$4.49

$

Usually ships in 3-6 days

0

36

Toro 28-3450

WASHER

$

$

Not available

37

Toro 38-2670

Charge Pump Kit (Incl. Ref. #31-34)
(Superseded to 117-6988)

$2266.99

$

Usually ships in 3-6 days

0

38

Toro 25-2660

UNION-FILTER

$

$

Not available

39

Toro 49-7850

CENTER SECTION
(Superseded to 92-5716)

$3350.99

$

Usually ships in 3-6 days

0

40

Toro 46-7280

PIPE PLUG

$

$

Not available

41

"O" Ring

$

$

Not available

42

Toro 28-3440

Threaded Plug (Incl. Ref. #41)

$

$

Not available

43

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Toro 25-2480

SPRING-VALVE

$5.99

$

Usually ships in 3-6 days

0

45

Toro 28-3380

PLATE-VALVE, MOTOR

$635.99

$

Usually ships in 3-6 days

0

46

Toro 25-2430

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

47

Toro 49-8200

SHAFT-MOTOR

$1119.99

$

Usually ships in 3-6 days

0

48

Toro 28-3350

Pin
(Superseded to 353-599)

$3.99

$

Usually ships in 3-6 days

0

49

Toro 28-3340

GASKET

$20.99

$

Usually ships in 3-6 days

0
