30573 - Toro 48" Snow Thrower Adapter Kit for GMT (SN: 000090001 - 000099999) (1979) CROSS FRAME & PULLEY ASSEMBLIES Parts Diagram

48" Snow Thrower Adapter Kit for GMT

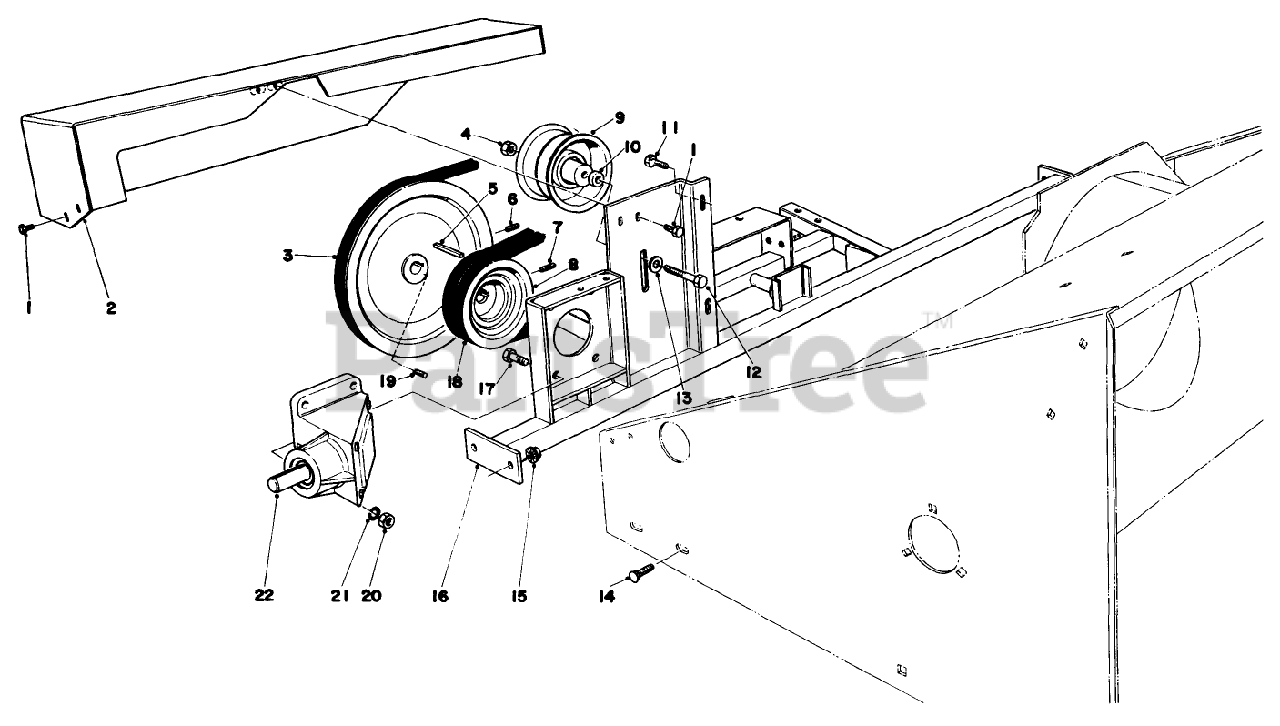

CROSS FRAME & PULLEY ASSEMBLIES Parts Diagram

  • Title
1

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

2

Toro 37-5510

BELT SHIELD WA

$

$

Not available

3

Toro 32-4480

SHEAVE 60014

$

$

Not available

4

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

5

$

$

Not available

6

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

7

Toro 3242-6

SCREW-SET, SQH

$4.49

$

Usually ships in 3-6 days

0

8

Toro 37-5090

PULLEY

$

$

Not available

9

Toro 37-5760

Idler Pulley
(Superseded to 37-5760-03)

$239.99

$

Usually ships in 3-6 days

0

10

Toro 37-5210

IDLER SPACER

$6.99

$

Usually ships in 3-6 days

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

15

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Toro 37-5400

Cross Brace

$

$

Not available

17

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 37-5670

V-BELT

$

$

Not available

19

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

20

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

21

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

22

Toro 37-5410

Gear Box Assembly

$

$

Not available
