30572 - Toro 48" Snow Thrower Adapter Kit for Groundsmaster 52 (SN: 000090001 - 000099999) (1979) ADAPTER KIT MODEL NO. 30572 Parts Diagram

48" Snow Thrower Adapter Kit for Groundsmaster 52

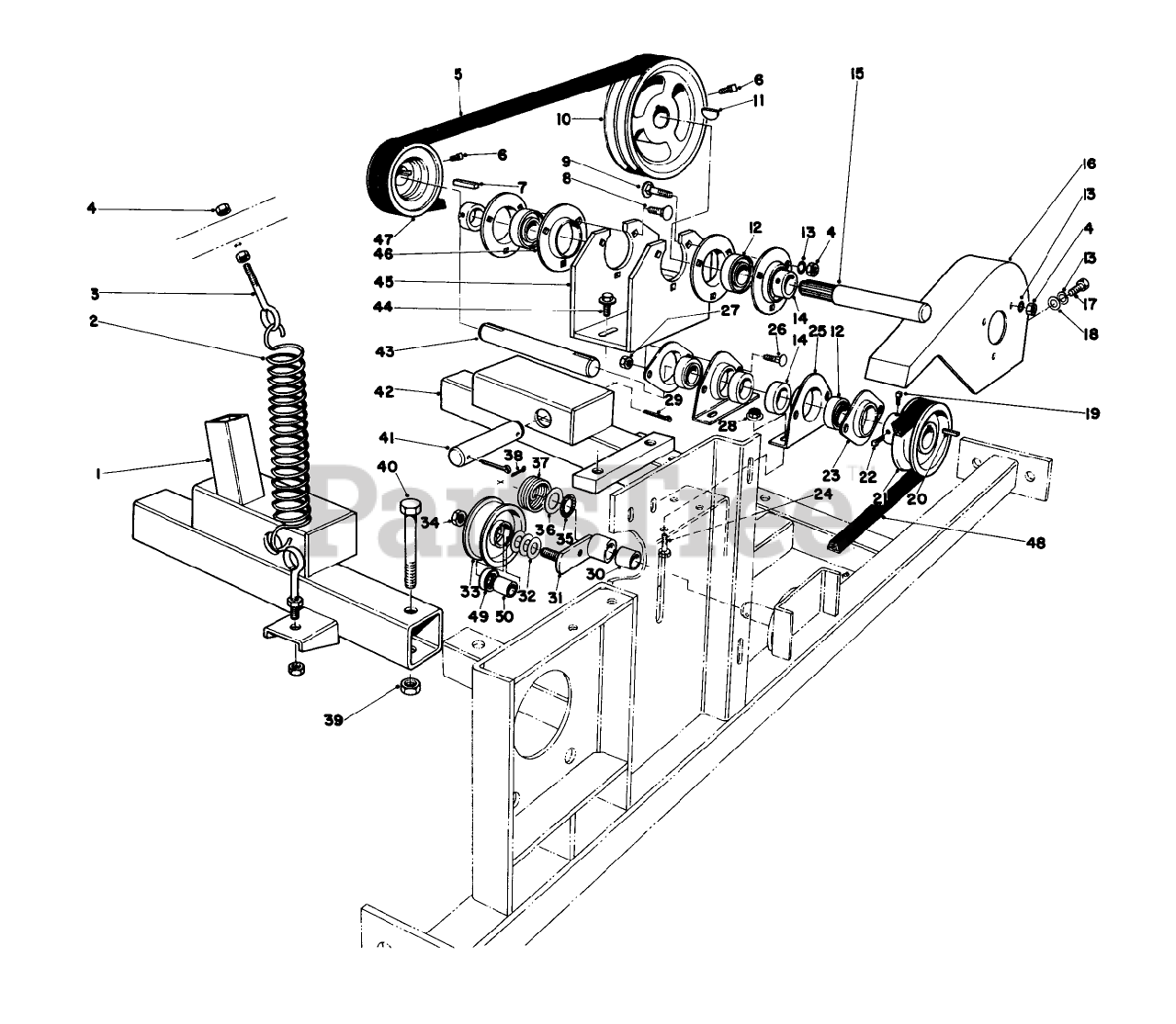

ADAPTER KIT MODEL NO. 30572 Parts Diagram

  • Title

1

Toro 37-5600

Adapter R.H.

$

$

Not available

2

Toro 30-1020

Extension Spring

$

$

Not available

3

Toro 30-0980

Eyebolt

$

$

Not available

4

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

5

Toro 37-5650

V-BELT

$

$

Not available

6

Toro 3242-6

SCREW-SET, SQH

$4.49

$

Usually ships in 3-6 days

0

7

Toro 3-3267

KEY

$

$

Not available

8

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

9

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

10

Toro 37-5340

JACKSHAFT PULLEY

$

$

Not available

11

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 6

0

12

Toro 251-253

Bearing (Incl. Ref. #14)

$24.99

$

Usually ships in 3-6 days

0

13

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

14

Toro 251-77

COLLAR-LOCK, BEARING

$11.99

$

Usually ships in 3-6 days

0

15

Toro 39-4370

JACKSHAFT

$705.99

$

Usually ships in 3-6 days

0

16

Toro 37-5580

Belt Shield

$

$

Not available

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3242-1

5/16-18 X 1/2 SQ HD

$3.99

$

Usually ships in 3-6 days

0

20

Toro 5-7280

KEY

$5.49

$

In Stock, only 1 left!

0

21

Toro 32-1790

SHEAVE 60103

$

$

Not available

22

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

23

Toro 251-285

Flange
(Superseded to 251-286)

$34.99

$

Usually ships in 3-6 days

0

24

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

25

Toro 251-286

FLANGE

$34.99

$

Usually ships in 3-6 days

0

26

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Toro 3272-52

3/32 X 1-3/4 LG COTTER

$

$

Currently unavailable

30

Toro 31-0680

BUSHING 16162

$

$

Not available

31

Toro 37-5470

Idler Arm (Incl. Ref. #30)

$

$

Not available

32

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

33

Toro 32-1450

Idler Pulley

$

$

Not available

34

Toro 30-8670

LOCKNUT 6239

$

$

Not available

35

Toro 31-7620

Felt Washer

$

$

Not available

36

Toro 31-0210

Washer

$

$

Not available

37

Toro 31-9500

Spring-Torsion

$

$

Not available

38

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

39

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

40

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Toro 37-5160

Pin

$

$

Not available

42

Toro 37-5620

Adapter L.H.

$

$

Not available

43

Toro 37-5250

JACKSHAFT

$

$

Not available

44

Toro 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

45

Toro 37-5610

JACKSHAFT SUPPORT

$

$

Not available

46

Toro 251-287

FLANGE

$

$

Not available

47

Toro 37-5070

JACKSHAFT PULLEY

$

$

Not available

48

Toro 37-5660

V-BELT

$

$

Not available

49

Toro 31-0530

Bearing
(Superseded to 109842)

$26.99

$

Usually ships in 3-6 days

0

50

Toro 30-5440

Sleeve

$

$

Not available

Toro 32-2820

Idler Assembly (Incl. Ref. #33 & 49-50)

Note: Not Illustrated.

$

$

Not available

Toro 37-5790

Reflector

Note: Not Illustrated.

$

$

Not available

Toro 32104-42

1/4-20 X 3/4 THDG SCR
(Superseded to 32104-95)

Note: Not Illustrated.

$0.99

$

Usually ships in 3-6 days

0

Toro 2112-9

CLAMP

Note: Not Illustrated.

$9.49

$

Usually ships in 3-6 days

0
