30569 - Toro 62" Guardian Recycler Lawn Walk-Behind Mower (SN: 250000001 - 250999999) (2005) COVER ASSEMBLY Parts Diagram

62" Guardian Recycler Lawn Walk-Behind Mower

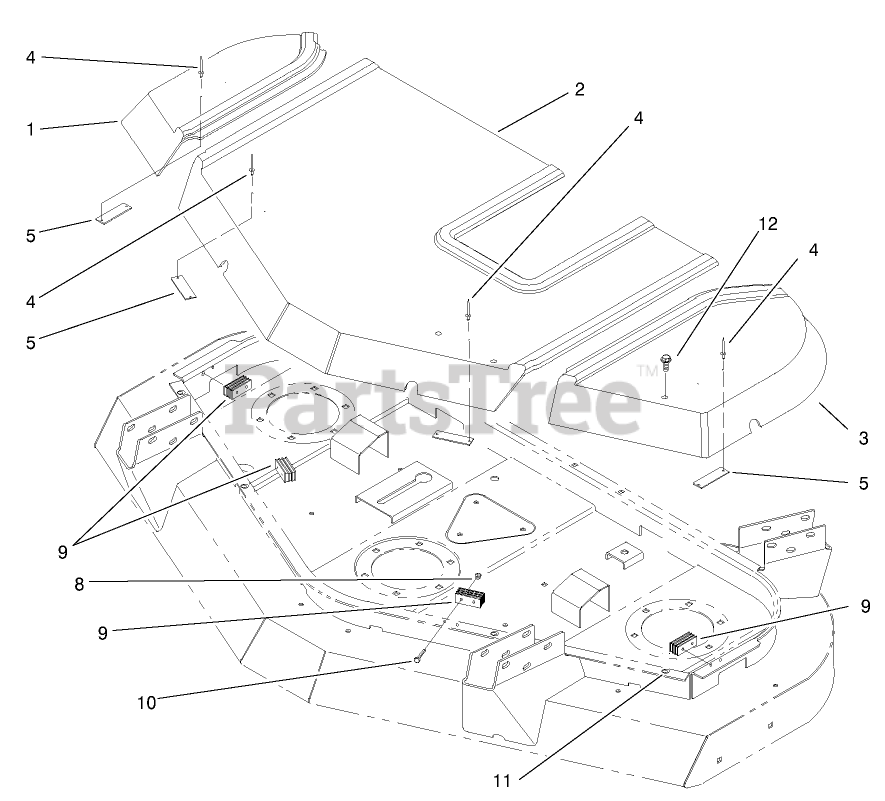

COVER ASSEMBLY Parts Diagram

  • Title
1

Toro 92-5619

COVER-RH

$241.99

$

Usually ships in 3-6 days

0

2

Toro 92-5620

COVER-CENTER

$

$

Not available

3

Toro 92-5618

COVER-LH

$241.99

$

Usually ships in 3-6 days

0

4

Toro 3269-25

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

5

Toro 69-6870

PLATE-MAGNET

$7.99

$

Usually ships in 3-6 days

0

8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 69-6260

MAGNET

$70.99

$

Usually ships in 3-6 days

0

10

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

11

Toro 32148-7

NUT-INSERT

$3.99

$

Usually ships in 3-6 days

0

12

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0
