30569 - Toro 62" Guardian Recycler Lawn Walk-Behind Mower (SN: 240000001 - 240999999) (2004) GEARBOX INSTALLATION ASSEMBLY Parts Diagram

62" Guardian Recycler Lawn Walk-Behind Mower

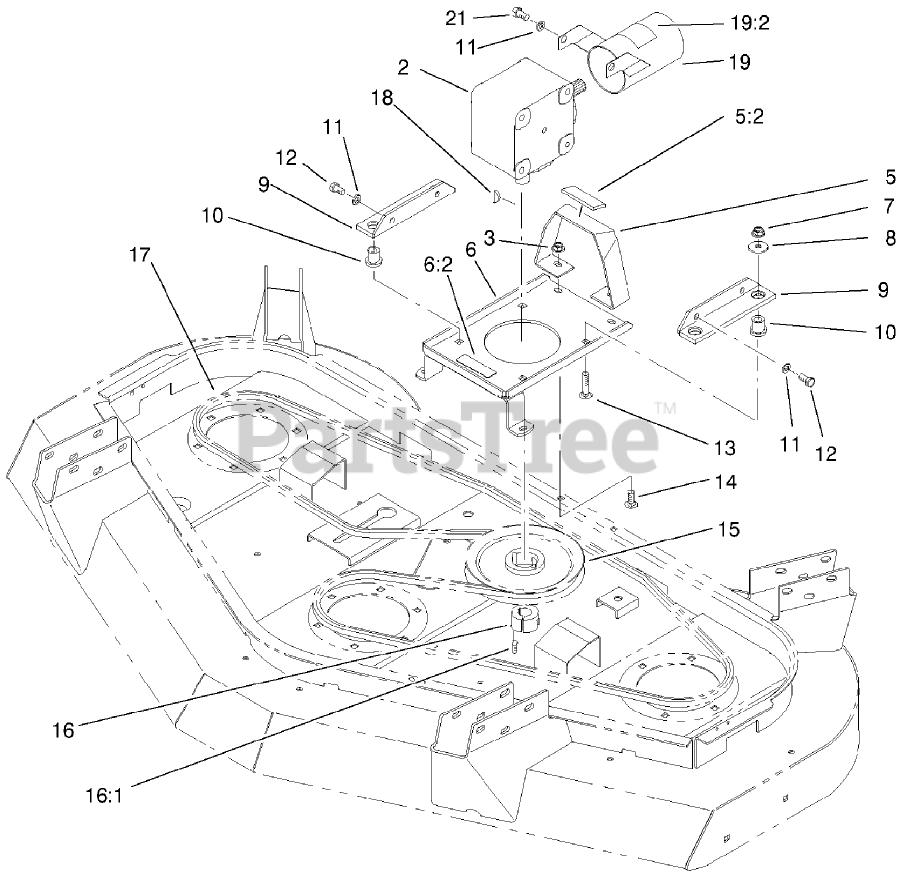

GEARBOX INSTALLATION ASSEMBLY Parts Diagram

  • Title

2

Toro 106-4355

GEARBOX ASM
(Superseded to 108-1370)

$1052.99

$

Usually ships in 3-6 days

0

3

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

5

Toro 92-5644

GEARBOX STAND ASM

$

$

Not available

5:2

Toro 74-0342

CUSHION-RUBBER

$

$

Not available

6

Toro 92-5609

GEARBOX PLATE ASM

$

$

Not available

6:2

Toro 93-6697

DECAL-LUBE

$15.99

$

Usually ships in 3-6 days

0

7

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

9

Toro 68-8560-03

BRACKET-GEARBOX

$56.99

$

Usually ships in 3-6 days

0

10

Toro 63-9750

MOUNT

$20.99

$

In Stock, only 3 left!

0

11

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

12

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

13

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

14

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

15

Toro 85-5860-03

Pulley-Gearbox

$

$

Currently unavailable

16

Toro 23-1640

BUSHING-TAPERLOCK

$85.99

$

Usually ships in 3-6 days

0

16:1

Toro 3247-4

SCREW-SET

$5.99

$

Usually ships in 3-6 days

0

17

Toro 92-5588

V-BELT

$73.99

$

In Stock, only 1 left!

0

18

Toro 3257-5

KEY-WOODRUFF

$5.99

$

Usually ships in 3-6 days

0

19

Toro 107-2904

PTO GUARD ASM

$206.99

$

Usually ships in 3-6 days

0

19:2

Toro 107-2915

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

21

Toro 323-2

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

99

Toro 95-3073

KIT-BLADE AND BELT

Note: Not illustrated

$222.99

$

Usually ships in 3-6 days

0
