30569 - Toro 62" Guardian Recycler Lawn Walk-Behind Mower (SN: 240000001 - 240999999) (2004) CUTTING CHAMBER ASSEMBLY Parts Diagram

62" Guardian Recycler Lawn Walk-Behind Mower

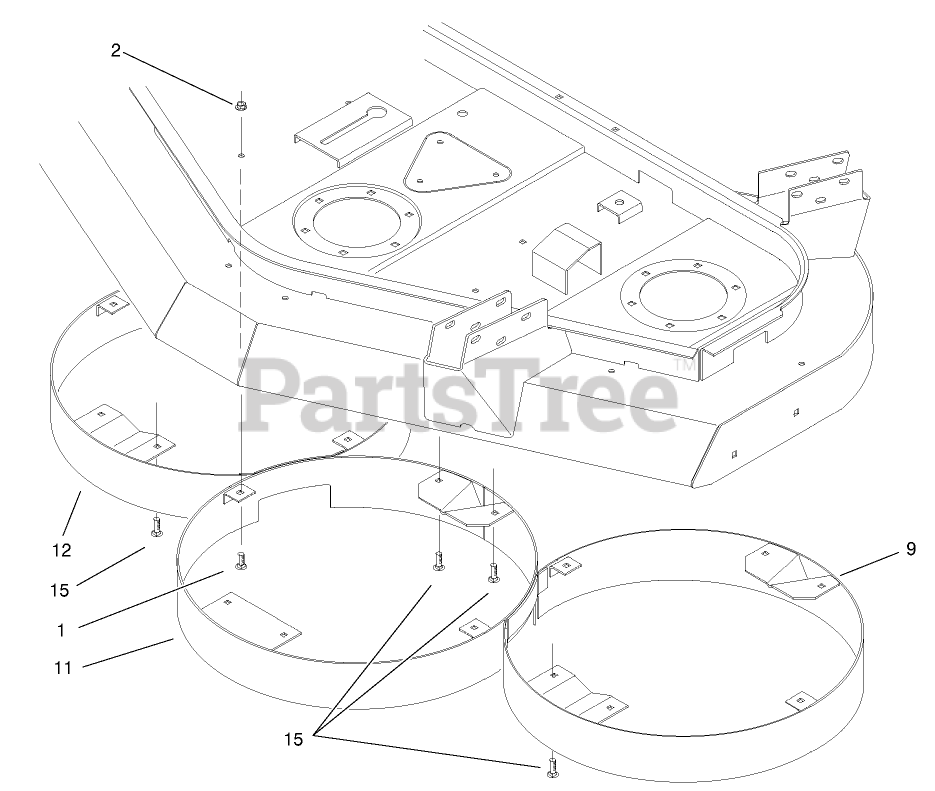

CUTTING CHAMBER ASSEMBLY Parts Diagram

  • Title
1

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

2

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

9

Toro 92-5594-01

LH CHAMBER ASM

$

$

Not available

11

Toro 92-5600-01

CENTER CHAMBER ASM
(Superseded to 92-5600-0P)

$

$

Not available

12

Toro 92-5602-01

RH CHAMBER ASM
(Superseded to 92-5602-0P)

$

$

Not available

15

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
