30569 - Toro 62" Guardian Recycler Lawn Walk-Behind Mower (SN: 230000001 - 230999999) (2003) HOUSING AND IDLER ASSEMBLY Parts Diagram

62" Guardian Recycler Lawn Walk-Behind Mower

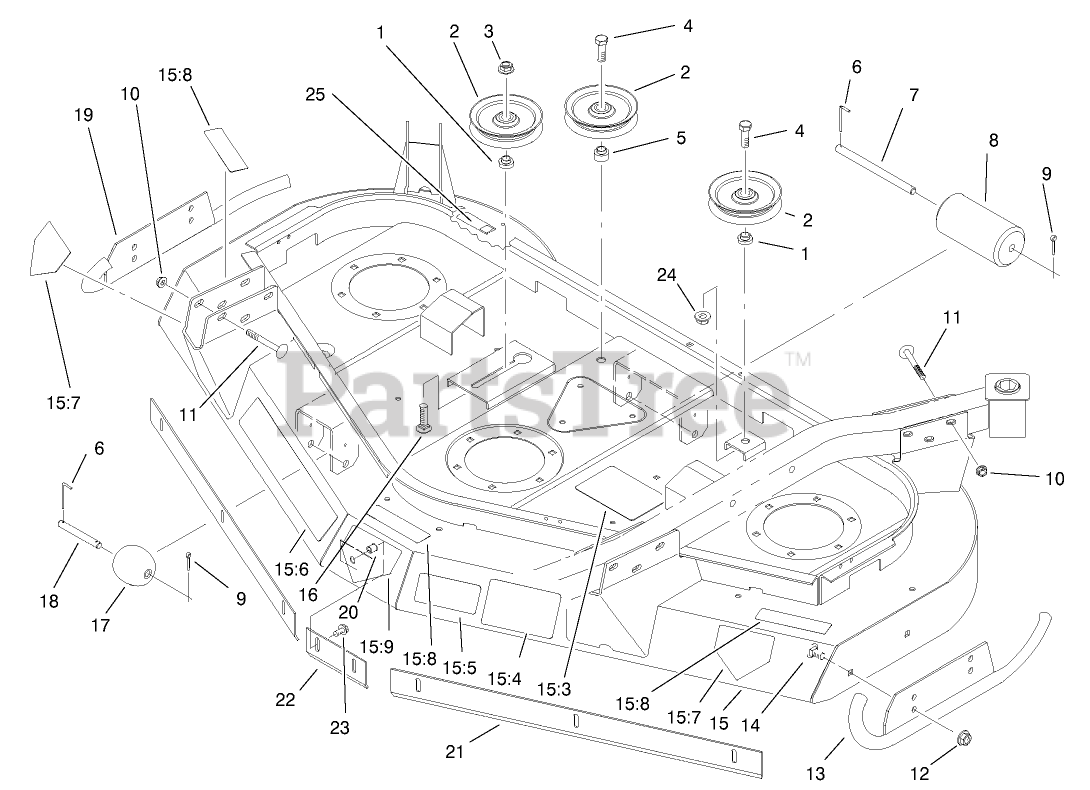

HOUSING AND IDLER ASSEMBLY Parts Diagram

  • Title
1

Toro 69-6960

SPACER-IDLER

$27.99

$

Usually ships in 3-6 days

0

2

Toro 63-1540-03

PULLEY-IDLER
(Superseded to 140-5848)

$67.99

$

In Stock, only 3 left!

0

3

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

4

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

5

Toro 69-6970

SPACER-IDLER, FLAT

$15.99

$

Usually ships in 3-6 days

0

6

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

7

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

8

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

9

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

10

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3231-10

SCREW-CARR

$4.49

$

In Stock, only 4 left!

0

12

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 92-5589-01

LH SKID ASM

$

$

Not available

14

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

15

Toro 92-5571

DECK ASM

$

$

Not available

15:3

Toro 92-4092

DECAL-ROUTING, BELT

$13.99

$

Usually ships in 3-6 days

0

15:4

Toro 105-9552

Decal-Warning

$

$

Not available

15:5

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

15:6

Toro 92-4088

DECAL-GUARDIAN 62

$

$

Not available

15:7

Toro 100-6582

DECAL-DANGER, CE

$15.99

$

Usually ships in 3-6 days

0

15:8

Toro 100-6578

DECAL-DANGER

$16.99

$

Usually ships in 3-6 days

0

15:9

Toro 100-6583

DECAL-DANGER

$

$

Not available

16

Toro 3233-30

SCREW-CARR

$9.99

$

Usually ships in 3-6 days

0

17

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

18

Toro 57-0680

SHAFT-ROLLER

$

$

Not available

19

Toro 92-5592-01

RH SKID ASM

$254.99

$

Usually ships in 3-6 days

0

20

Toro 32148-7

NUT-INSERT

$3.99

$

Usually ships in 3-6 days

0

21

Toro 93-4388-01

BAFFLE-SIDE

$

$

Not available

22

Toro 93-4389-01

BAFFLE-CENTER

$

$

Not available

23

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

24

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

25

Toro 104-0131

Decal-Ansi

$

$

Not available
