30564 - Toro 62" Walk-Behind Mower (SN: 039000001 - 039999999) (1993) CARRIER FRAME ASSEMBLY Parts Diagram

62" Walk-Behind Mower

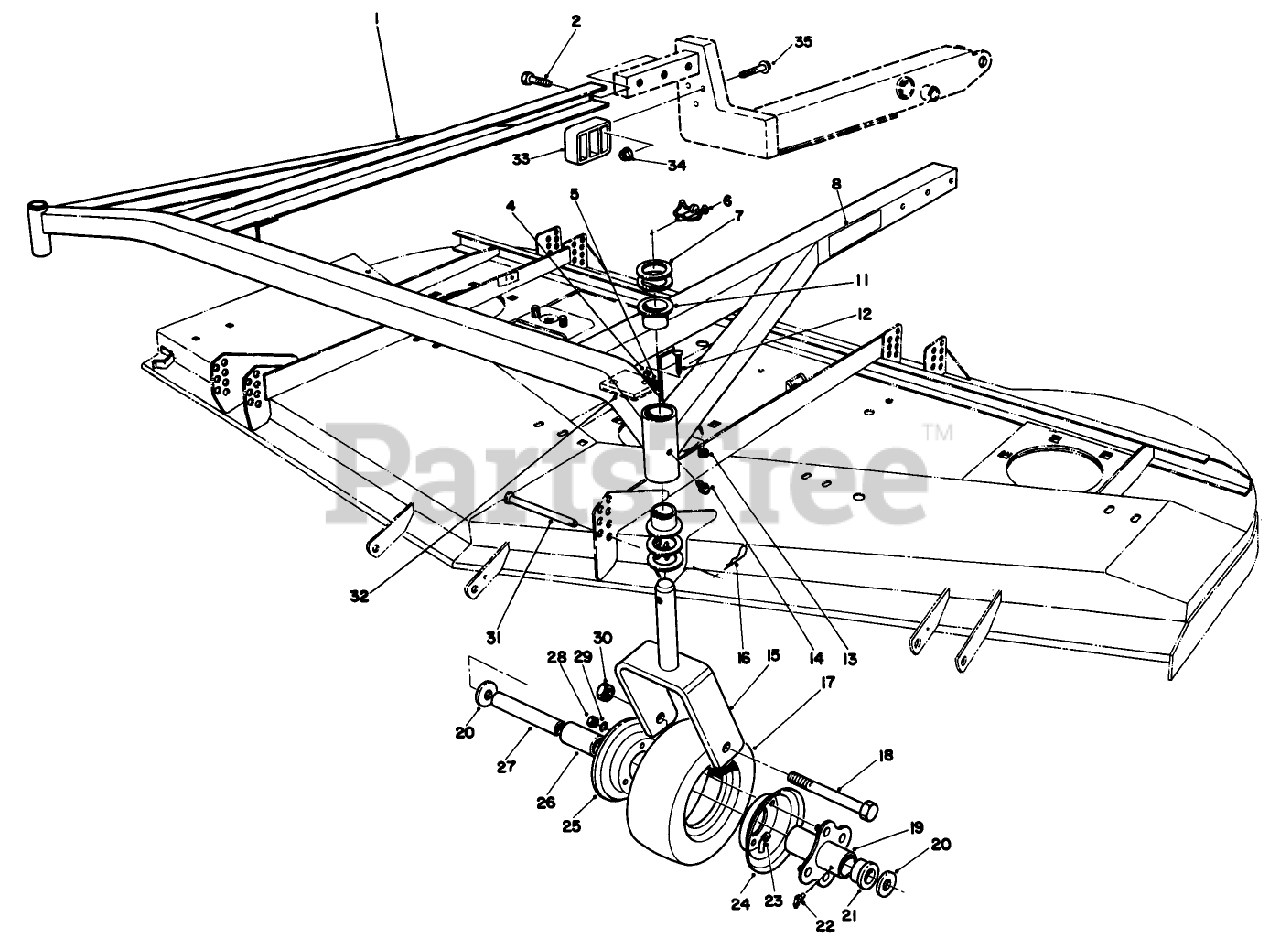

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 83-4560

Frame (Incl. Ref. #9 & 10)

$

$

Not available

2

Toro 325-32

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

4

Toro 40-9520

SPACER

$0.99

$

Usually ships in 3-6 days

0

5

Toro 40-0330

CUSHION-RUBBER

$10.99

$

Usually ships in 3-6 days

0

6

Toro 3290-384

PIN-LYNCH

$21.99

$

Usually ships in 3-6 days

0

7

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

8

Toro 68-8360

DECAL-HOC, LH

$23.99

$

Usually ships in 3-6 days

0

11

Toro 28-9290

Bushing
(Superseded to 94-1291)

$10.99

$

In Stock, Qty 11

0

12

Toro 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 68-8900

Castor Fork
(Superseded to 68-8900-01)

$113.99

$

Usually ships in 3-6 days

0

16

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

17

Toro 68-8960

TIRE

$64.99

$

In Stock, only 1 left!

0

18

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

19

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

20

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, only 2 left!

0

22

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

23

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

24

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

25

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

26

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

27

Toro 68-8980

SPANNER-TIRE

$8.99

$

In Stock, Qty 12

0

28

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

31

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

32

Toro 42-6200

SHIM-CUSHION

$11.99

$

Usually ships in 3-6 days

0

33

Toro 83-4520

Cradle-Rear
(Superseded to 83-4520-01)

$88.99

$

Usually ships in 3-6 days

0

34

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

35

Toro 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

Toro 13-3869

Assembly-Caster Wheel (Incl. Ref. #17,19, 21-26 & 28-29)
(Superseded to 68-8970)

Note: Not illustrated

$127.99

$

Usually ships in 3-6 days

0
