30564 - Toro 62" Walk-Behind Mower (SN: 010000001 - 019999999) (1991) VALVE AND LEVER ASSEMBLY Parts Diagram

62" Walk-Behind Mower

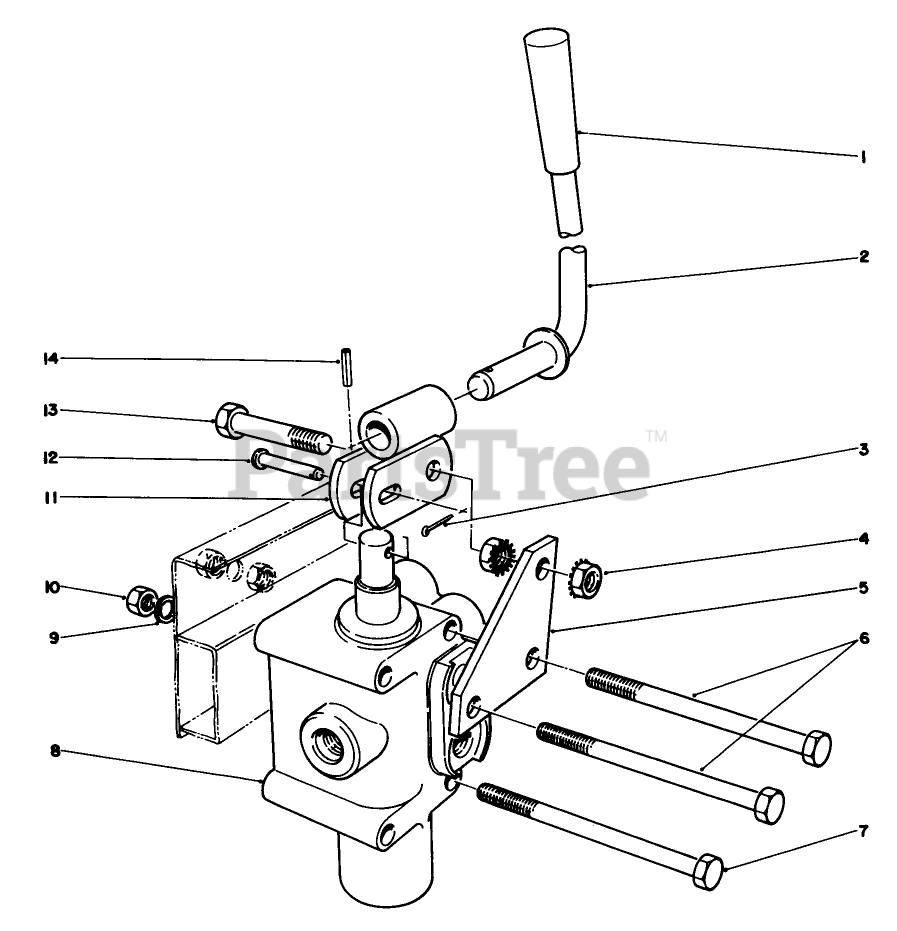

VALVE AND LEVER ASSEMBLY Parts Diagram

  • Title
1

Toro 233-39

KNOB-CONTROL

$17.99

$

Usually ships in 3-6 days

0

2

Toro 27-4200

Lever-Valve
(Superseded to 27-4200-03)

$

$

Not available

3

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

4

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

5

Toro 27-4230

Wheel Bolt
(Superseded to 27-4230-03)

$

$

Not available

6

Toro 321-34

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 321-24

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 43-1700

VALVE ASM

$

$

Not available

9

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

11

Toro 27-4220

Valve Lever Link
(Superseded to 27-4220-03)

$

$

Not available

12

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

13

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0
