30564 - Toro 62" Walk-Behind Mower (SN: 010000001 - 019999999) (1991) OIL BASE & FUEL PUMP-ENGINE, ONAN MODEL NO. P220G, TYPE NO. 1/10808C Parts Diagram

62" Walk-Behind Mower

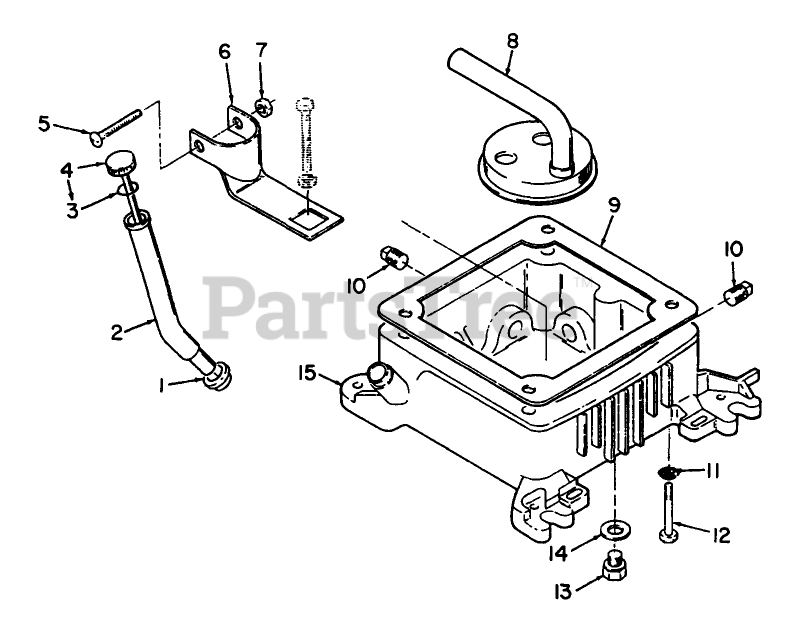

OIL BASE & FUEL PUMP-ENGINE, ONAN MODEL NO. P220G, TYPE NO. 1/10808C Parts Diagram

  • Title

1

Toro 71-6170

SEAL-OIL FILL TUBE

$13.99

$

In Stock, only 1 left!

0

2

Toro 71-5860

Tube-Oil Fill
(Superseded to NN10854)

$

$

Not available

3

Toro 57-9610

SEAL 0-RING

$6.99

$

In Stock, only 1 left!

0

4

Toro 71-5880

Cap (Includes Ref. #3)

$

$

Not available

5

Toro 3250-23

SCREW-PPH

$2.99

$

Usually ships in 3-6 days

0

6

Toro 71-5870

Bracket
(Superseded to NN10854)

$

$

Not available

7

Toro 3290-277

NUT-SPEED

$0.99

$

Usually ships in 3-6 days

0

8

Toro 57-8490

OIL CUP ASM

$143.99

$

Usually ships in 3-6 days

0

9

Toro 57-8090

GASKET

$35.99

$

Usually ships in 3-6 days

0

10

Toro 281-2

PLUG-PIPE, SQH

$2.49

$

Usually ships in 3-6 days

0

11

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

13

Toro 57-8080

PLUG-OIL

$17.99

$

Usually ships in 3-6 days

0

14

Toro 57-8070

GASKET

$4.99

$

Usually ships in 3-6 days

0

15

Toro 71-5730

Base (Includes Items Ref. #9, 10, 13 & 14)

$

$

Not available
