30564 - Toro 62" Walk-Behind Mower (SN: 010000001 - 019999999) (1991) GRASS COLLECTOR MODEL 30561 (OPTIONAL) Parts Diagram

62" Walk-Behind Mower

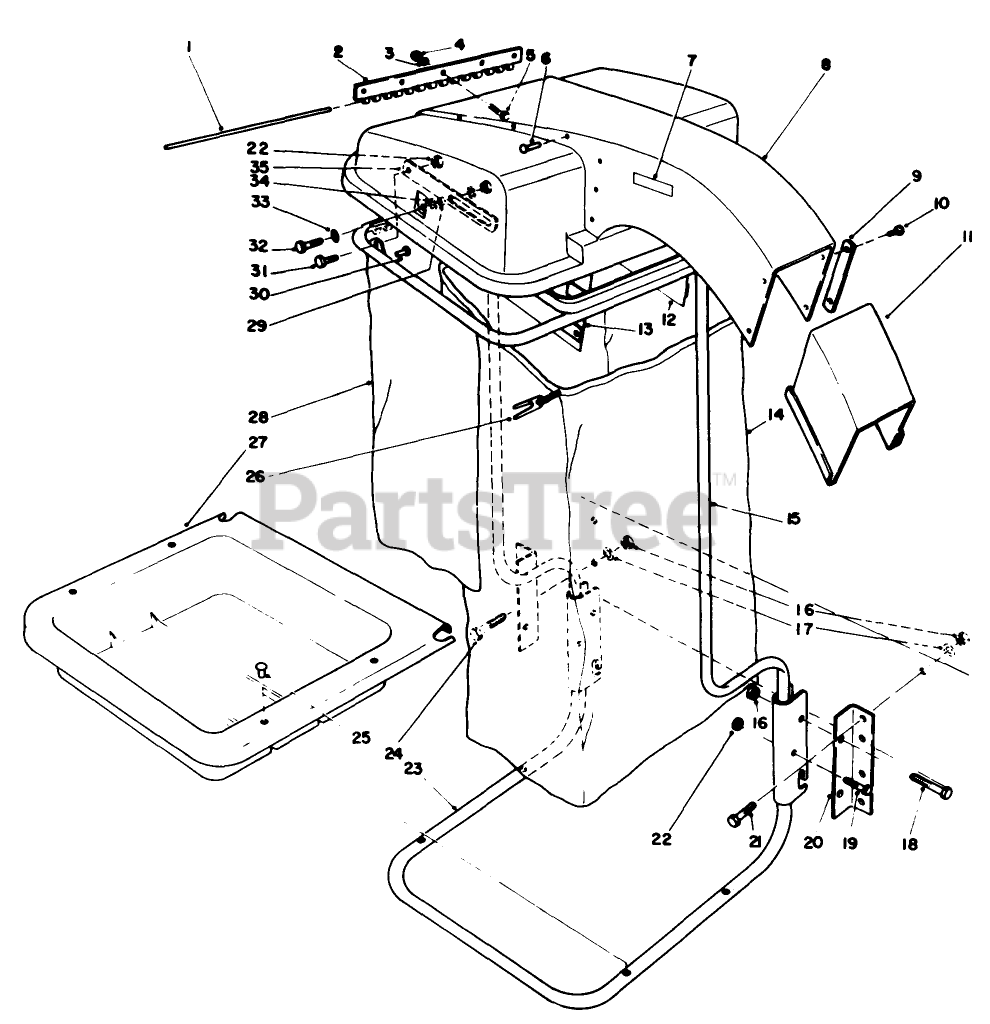

GRASS COLLECTOR MODEL 30561 (OPTIONAL) Parts Diagram

  • Title
1

Toro 43-1000

HOOD HINGE PIN

$

$

Not available

2

Toro 43-0610

Hinge Half
(Superseded to 43-0610-03)

$

$

Not available

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

$0.99

$

In Stock, Qty 20+

0

6

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

7

Toro 43-1100

Decal-Caution

$17.99

$

Usually ships in 3-6 days

0

8

Toro 67-7110

Hood Assembly (Incl. Ref. #2-7 & 12-13)
(Superseded to 13-1649)

$922.99

$

Usually ships in 3-6 days

0

9

Toro 67-1730

PLATE-NUT B

$

$

Not available

10

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

11

Toro 67-1740

Snout Extension
(Superseded to 67-1740-03)

$

$

Not available

12

Toro 43-0600

Screen Left Hand
(Superseded to 43-0600-03)

$

$

Not available

13

Toro 43-0570

Screen Right Hand
(Superseded to 43-0570-03)

$

$

Not available

14

Toro 43-0990

BAG-CLOTH, 32"

$

$

Not available

Toro 43-0980

BAG-CLOTH, 38"

$

$

Not available

15

Toro 67-7500

Support Tube Assembly-(Upper (Incl. Ref. #25 & 28)

$

$

Not available

16

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

20

Toro 43-1010

BRKT-FRAME B

$

$

Not available

21

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

23

Toro 43-0720

Support Tube Assembly-Lower (Incl. Ref. #25 & 27)

$1023.99

$

Usually ships in 3-6 days

0

24

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3-2781

BAG CORD FASTENER

$

$

Not available

Toro 36-7770

RETAINER CORD

$

$

Not available

27

Tray-Lower

$

$

Not available

28

Skirt-Bagging Frame

$

$

Not available

29

Toro 43-1020

SPACER - PIVOT ARM

$

$

Not available

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3256-56

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

33

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

34

Toro 43-1050

Stop-Hood

$

$

Not available

Toro 44-9720

Template Bracket

$

$

Not available
