30564 - Toro 62" Walk-Behind Mower (SN: 000900001 - 000999999) (1989) CUTTING UNIT MODEL NO. 30555 Parts Diagram

62" Walk-Behind Mower

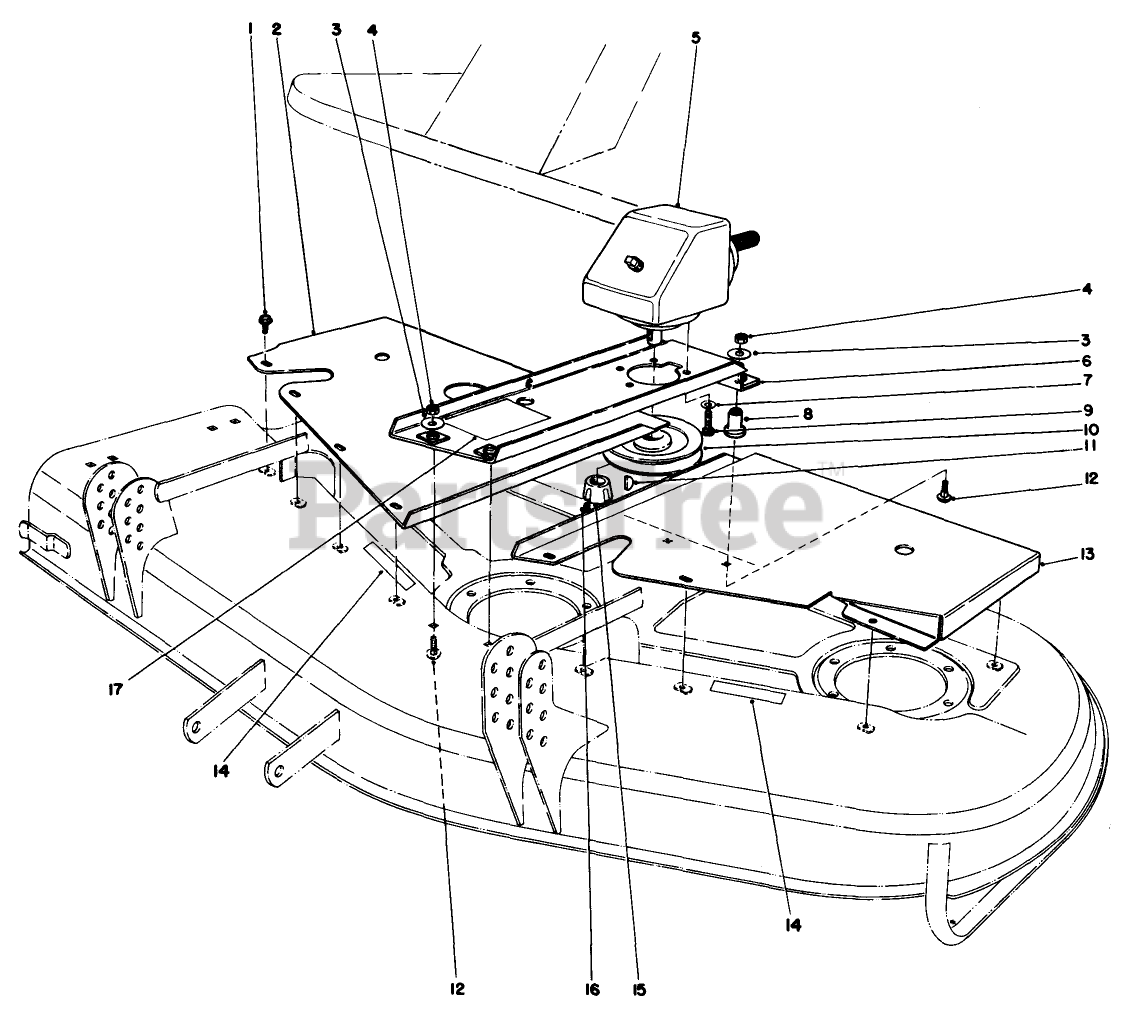

CUTTING UNIT MODEL NO. 30555 Parts Diagram

  • Title

1

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

2

Toro 40-0410

RH COVER WA R

$

$

Not available

3

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

4

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

5

Toro 8-0909

GEAR BOX ASM

$

$

Not available

6

Toro 63-9760

GEARBOX BASE WA R

$

$

Not available

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

8

Toro 63-9750

MOUNT

$20.99

$

In Stock, only 3 left!

0

9

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

10

Toro 63-9900

PULLEY

$164.99

$

Usually ships in 3-6 days

0

11

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

12

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

13

Toro 40-0390

LH COVER WA R

$221.99

$

Usually ships in 3-6 days

0

14

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

15

Toro 27-6140

Bushing-Taper Lock (Incl. Ref. #16)

$103.99

$

Usually ships in 3-6 days

0

16

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

17

Toro 51-3960

DECAL

$27.99

$

Usually ships in 3-6 days

0
