30564 - Toro 62" Walk-Behind Mower (SN: 000800001 - 000899999) (1988) CUTTING UNIT MODEL NO. 30564 Parts Diagram

62" Walk-Behind Mower

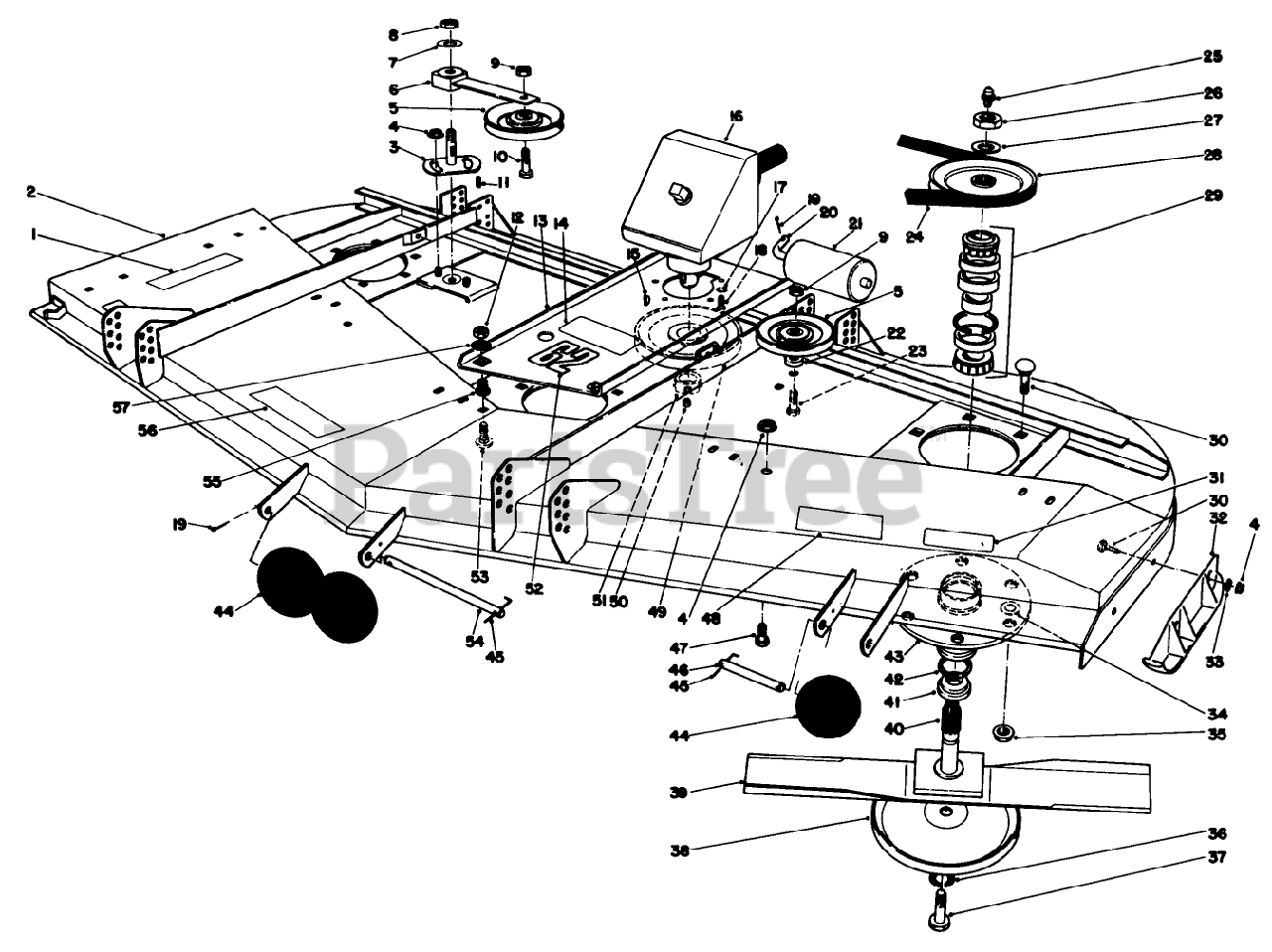

CUTTING UNIT MODEL NO. 30564 Parts Diagram

  • Title

1

Toro 51-1560

WARNING DECAL

$

$

Not available

2

Toro 63-9840

Cutting Deck
(Superseded to 92-8764)

$

$

Not available

3

Toro 44-6300

PLATE-IDLER

$139.99

$

Usually ships in 3-6 days

0

4

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

6

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$160.99

$

In Stock, only 1 left!

0

7

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

8

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

10

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

11

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

12

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

13

Toro 63-9780

GEARBOX BASE WA R

$

$

Not available

14

Toro 44-6470

Decal-Caution
(Superseded to 55-4300)

$14.99

$

Usually ships in 3-6 days

0

15

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

16

Toro 8-0909

GEAR BOX ASM

$

$

Not available

17

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

18

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

19

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

20

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

21

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

22

Toro 44-6390

SPACER

$23.99

$

Usually ships in 3-6 days

0

23

Toro 3211-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

24

Toro 44-6260

V-BELT

$68.99

$

In Stock, only 3 left!

0

25

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

26

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

27

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

28

Toro 44-6340

PULLEY AND HUB ASM

$70.99

$

In Stock, only 1 left!

0

29

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

30

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

31

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

32

Toro 57-0570

Skid
(Superseded to 57-0570-01)

$

$

Not available

33

Toro 3290-224

LOCKWASHER-PYRAMID

$38.99

$

Usually ships in 3-6 days

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

35

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

36

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

37

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

38

Toro 27-1000

Cup-Scalp
(Superseded to 72-9361)

$42.99

$

Usually ships in 3-6 days

0

39

Toro 44-6250

Blade
(Superseded to 44-6250-03)

$26.99

$

In Stock, only 3 left!

0

40

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

41

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

42

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

43

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

44

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

45

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

46

Toro 57-0680

SHAFT-ROLLER

$

$

Not available

47

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

48

Toro 52-1430

Decal-Rear Weight
(Superseded to 68-7260)

$

$

Not available

49

Toro 63-9900

PULLEY

$164.99

$

Usually ships in 3-6 days

0

50

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

51

Toro 27-6140

BUSHING-LOCK, TAPER

$103.99

$

Usually ships in 3-6 days

0

52

Toro 66-1630

DECAL

$17.99

$

Usually ships in 3-6 days

0

53

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

54

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

55

Toro 63-9750

MOUNT

$20.99

$

In Stock, only 3 left!

0

56

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

57

Toro 63-4810

Washer
(Superseded to 63-8410)

$1.99

$

In Stock, Qty 14

0
