30563 - Toro 52" Rear-Discharge Shield Kit for Groundsmaster 220 TRACTOR SHIELD ASSEMBLY Parts Diagram

52" Rear-Discharge Shield Kit for Groundsmaster 220

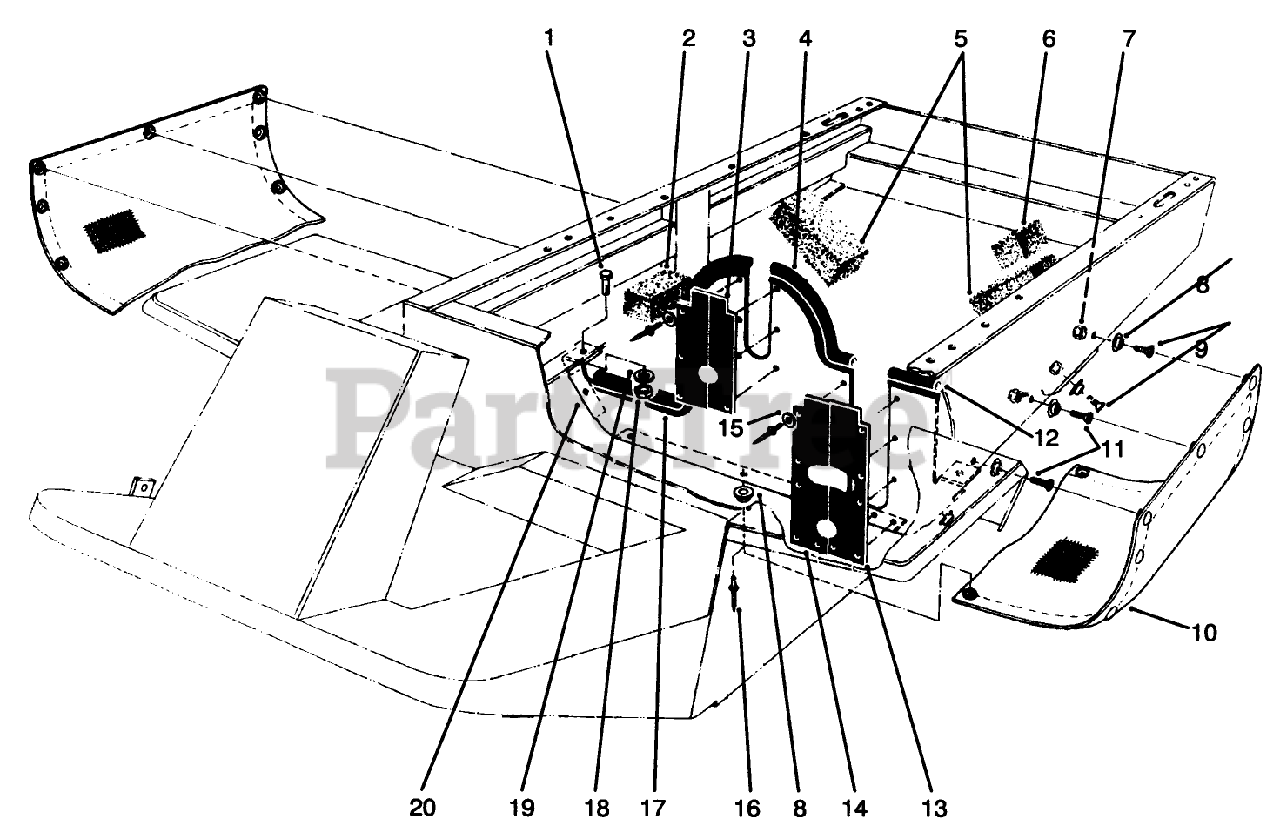

TRACTOR SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

2

Toro 46-8130

SIDE FOAM

$

$

Not available

3

Toro 46-8170

FLAP

$

$

Not available

4

Toro 46-8200

TRIM SEAL

$

$

Not available

5

Toro 46-8110

REAR FOAM

$

$

Not available

6

Toro 46-8120

LH REAR FOAM

$

$

Not available

7

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

8

Toro 41-9060

SNAP STUD

$

$

Not available

9

Toro 32108-99

6-32 X 5/8 FLAT HD SCR

$

$

Not available

10

Toro 41-8921

GRASS SCREEN BAG

$

$

Not available

11

Toro 32144-18

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

12

Toro 46-8190

TRIM SEAL

$

$

Not available

13

Toro 46-8150

LH FLAP

$

$

Not available

14

Toro 46-8160

RH FLAP

$

$

Not available

15

Toro 5-1254

WASHER

$

$

Not available

16

Toro 3290-55

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

17

Toro 46-8210

TRIM SEAL

$

$

Not available

18

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-29

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

20

Toro 46-8180

Front Shield Assembly (Incl. Ref. #3, 4, 8 &12-17)

$

$

Not available
