30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 007000001 - 007999999) (1987) Transmission And Drive Coupling Assembly Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

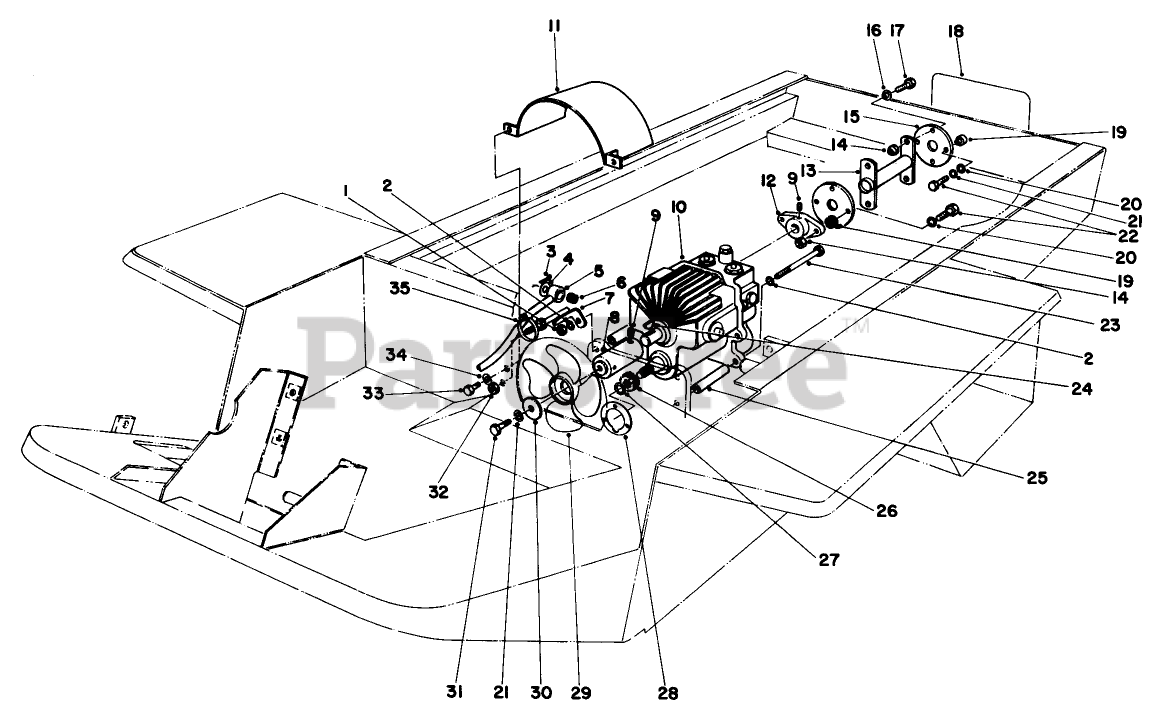

Transmission And Drive Coupling Assembly Parts Diagram

  • Title
1

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

3

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 27-4160

PUMP CONTROL TUBE WA

$243.99

$

Usually ships in 3-6 days

0

6

Toro 23-2270

BUSHING-RUBBER

$20.99

$

Usually ships in 3-6 days

0

7

Toro 27-5310

See Supercession: 27-5310-03
(Superseded to 27-5310-03)

$

$

Not available

8

Toro 27-4340

See Supercession: 27-4340-03
(Superseded to 27-4340-03)

$

$

Not available

9

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

10

Toro 49-7910

See Supercession: 99-5677
(Superseded to 99-5677)

$5966.99

$

Usually ships in 3-6 days

0

11

Toro 27-3270

See Supercession: 27-3270-03
(Superseded to 27-3270-03)

$

$

Not available

12

Toro 27-4370

HUB-PUMP

$84.99

$

Usually ships in 3-6 days

0

13

Toro 44-8720

See Supercession: 44-8720-03
(Superseded to 44-8720-03)

$

$

Not available

14

Toro 32152-5

NUT-HEX

$3.99

$

In Stock, only 2 left!

0

15

Toro 44-2230

See Supercession: 115-4523
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

16

Toro 27-6600

See Supercession: 125-9249
(Superseded to 125-9249)

$2.99

$

In Stock, only 3 left!

0

17

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 5

0

18

Toro 43-5120

See Supercession: 62-7400
(Superseded to 62-7400)

$26.99

$

Usually ships in 3-6 days

0

19

Toro 33-2020

DISCONTINUED

$

$

Not available

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

22

Toro 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

23

Toro 323-38

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

24

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

25

Toro 27-3680

SPACER-MOUNTING

$8.99

$

Usually ships in 3-6 days

0

26

Toro 23-4810

See Supercession: 86-7220
(Superseded to 86-7220)

$110.99

$

Usually ships in 3-6 days

0

27

Toro 32120-72

RING-SNAP

$2.49

$

In Stock, Qty 20+

0

28

Toro 27-3690

GASKET-TRANSMISSION

$9.49

$

Usually ships in 3-6 days

0

29

Toro 27-3740

DISCONTINUED

$

$

Not available

30

Toro 27-4360

WASHER

$

$

Not available

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

33

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

34

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

35

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
