30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 007000001 - 007999999) (1987) Cutting Unit Model No. 30575 Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

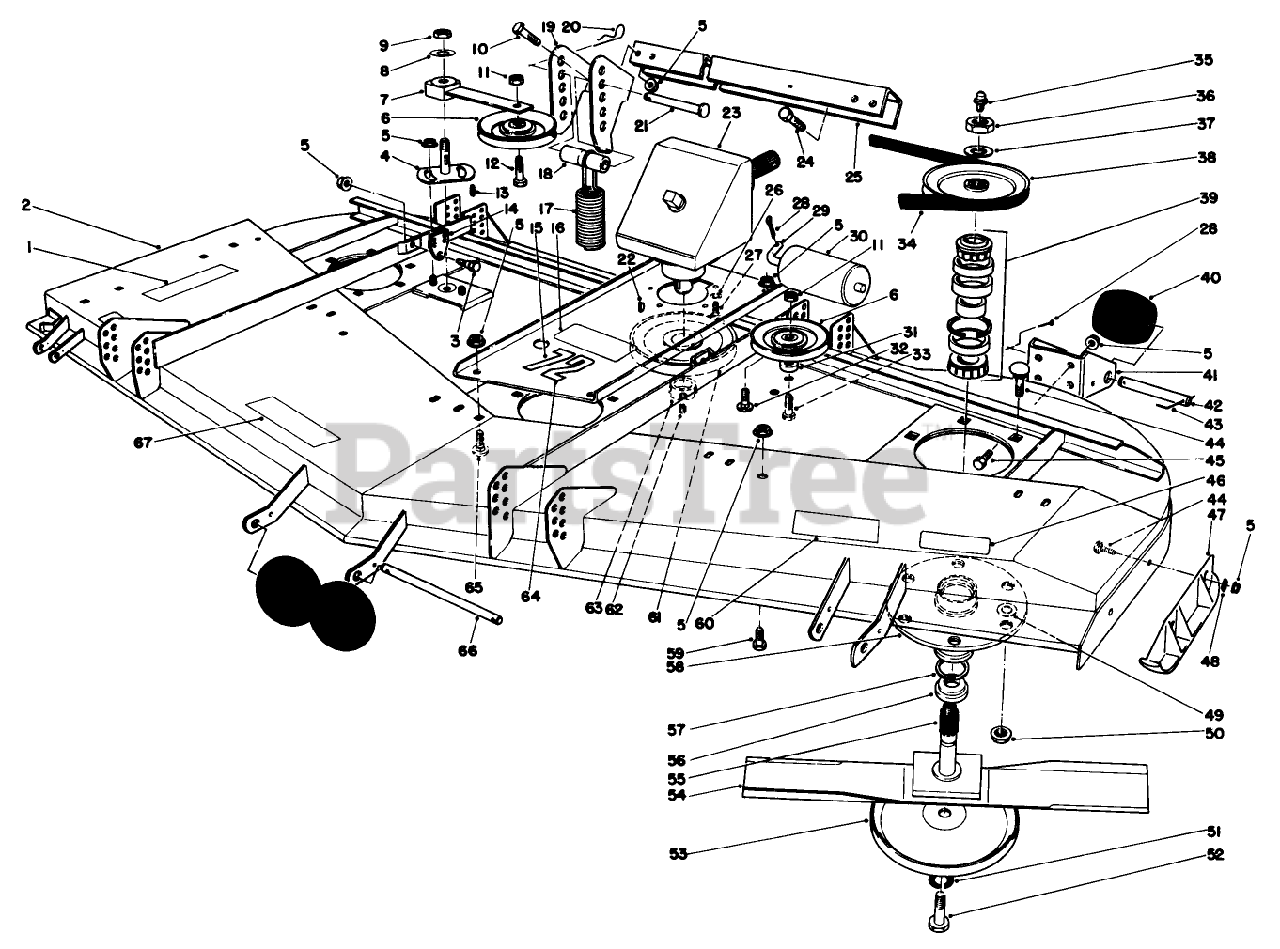

Cutting Unit Model No. 30575 Parts Diagram

  • Title

1

Toro 26-7980

DISCONTINUED

$

$

Not available

2

Toro 57-0300

DISCONTINUED
(Superseded to 92-8766)

$

$

Not available

3

Toro 46-3380

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

4

Toro 44-6300

PLATE-IDLER

$139.99

$

Usually ships in 3-6 days

0

5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

6

Toro 52-4580

See Supercession: 99-5678
(Superseded to 99-5678)

$65.99

$

Usually ships in 3-6 days

0

7

Toro 27-8580

See Supercession: 99-1297
(Superseded to 99-1297)

$160.99

$

In Stock, only 1 left!

0

8

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

9

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

12

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

13

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

14

Toro 46-3190

DISCONTINUED

$

$

Not available

15

Toro 57-0540

DISCONTINUED

$

$

Not available

16

Toro 44-6470

See Supercession: 55-4300
(Superseded to 55-4300)

$14.99

$

Usually ships in 3-6 days

0

17

Toro 46-3200

See Supercession: 46-3200-01
(Superseded to 46-3200-01)

$99.99

$

Usually ships in 3-6 days

0

18

Toro 40-0300

SPACER

$

$

Not available

19

Toro 46-2620

SPRING BRACKET *R

$106.99

$

Usually ships in 3-6 days

0

20

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

21

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

22

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

23

Toro 8-0909

DISCONTINUED

$

$

Not available

24

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 57-0550

DISCONTINUED

$

$

Not available

26

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

27

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

28

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

29

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

30

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

31

Toro 44-6390

SPACER

$23.99

$

Usually ships in 3-6 days

0

32

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

33

Toro 321-19

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

34

Toro 57-0240

V-BELT

$98.99

$

In Stock, only 3 left!

0

35

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

36

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

37

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

38

Toro 57-0560

PULLEY & HUB ASM, WELDED

$90.99

$

In Stock, only 3 left!

0

39

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

40

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

41

Toro 57-0580

See Supercession: 57-0580-01
(Superseded to 57-0580-01)

$70.99

$

Usually ships in 3-6 days

0

Toro 57-0590

See Supercession: 57-0590-01
(Superseded to 57-0590-01)

Note: Not illustrated

$

$

Not available

42

Toro 57-0680

SHAFT-ROLLER

$

$

Not available

43

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

44

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

45

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

46

Toro 26-7970

CAUTION DECAL (BLADE)

$

$

Not available

47

Toro 57-0570

See Supercession: 57-0570-01
(Superseded to 57-0570-01)

$

$

Not available

48

Toro 3290-224

LOCKWASHER-PYRAMID

$38.99

$

Usually ships in 3-6 days

0

49

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

50

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

51

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

52

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

53

Toro 27-1000

See Supercession: 72-9361
(Superseded to 72-9361)

$42.99

$

Usually ships in 3-6 days

0

54

Toro 57-0250

See Supercession: 94-1861-03
(Superseded to 94-1861-03)

$44.99

$

In Stock, Qty 19

0

55

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

56

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

57

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

58

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

59

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

60

Toro 57-0770

DISCONTINUED

$

$

Not available

61

Toro 27-6110

DISCONTINUED

$

$

Not available

62

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 20+

0

63

Toro 27-6140

BUSHING-LOCK, TAPER

$103.99

$

Usually ships in 3-6 days

0

64

Toro 57-0280

DECAL

$14.99

$

Usually ships in 3-6 days

0

65

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

66

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

67

Toro 57-0270

DISCONTINUED

$

$

Not available
