30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 006000001 - 006999999) (1986) Valve Assembly No. 43-1700 Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

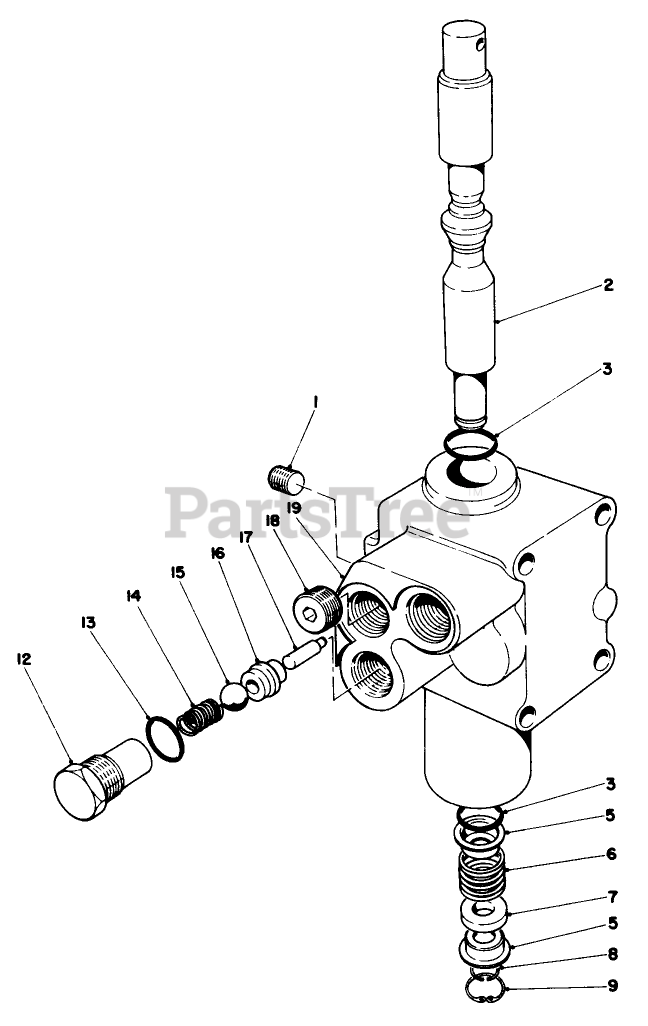

Valve Assembly No. 43-1700 Parts Diagram

  • Title
1

$

$

Not available

2

Toro 27-5210

SPOOL

$

$

Not available

3

Toro 22-8500

O-RING

$20.99

$

Usually ships in 3-6 days

0

5

Toro 22-8380

RETAINER

$24.99

$

Usually ships in 3-6 days

0

6

Toro 22-8410

SPRING

$21.99

$

Usually ships in 3-6 days

0

7

Toro 27-5200

FLOAT SPACER

$

$

Not available

8

Toro 22-8480

RING-SNAP

$62.99

$

Usually ships in 3-6 days

0

9

Toro 22-8490

RING-SNAP

$8.99

$

Usually ships in 3-6 days

0

12

$63.99

$

Usually ships in 3-6 days

0

13

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

14

Toro 22-8340

SPRING

$22.99

$

Usually ships in 3-6 days

0

15

$14.99

$

Usually ships in 3-6 days

0

16

Toro 22-8370

SEAT-VALVE

$105.99

$

Usually ships in 3-6 days

0

17

$56.99

$

Usually ships in 3-6 days

0

18

Toro 28-1130

DISCONTINUED

$

$

Not available
