30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 006000001 - 006999999) (1986) Transmission Interlock Assembly Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

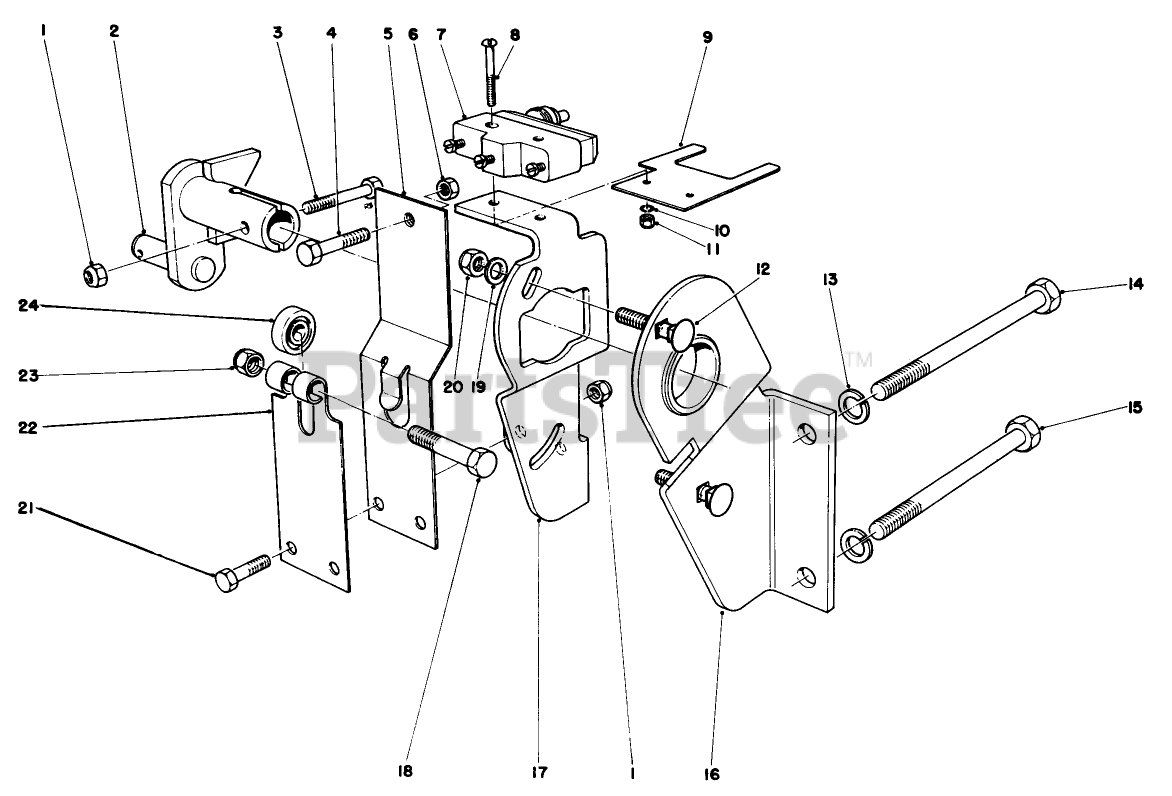

Transmission Interlock Assembly Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 29-9790

DISCONTINUED
(Superseded to 29-9790-03)

$

$

Not available

3

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

4

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 29-6170

EXTENDED LEAF SPRING ASM

$51.99

$

Usually ships in 3-6 days

0

6

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

7

Toro 29-6160

See Supercession: 29-6163
(Superseded to 29-6163)

$110.99

$

Usually ships in 3-6 days

0

8

Toro 3249-11

SCREW-MACHINE

$0.99

$

Usually ships in 3-6 days

0

9

Toro 46-8810

STOP-SPRING, LEAF

$

$

Not available

10

Toro 3254-9

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

11

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

14

Toro 27-9620

SCREW-HH

$22.99

$

Usually ships in 3-6 days

0

15

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

16

Toro 52-8890

See Supercession: 52-8890-03
(Superseded to 52-8890-03)

$

$

Not available

17

Toro 52-9070

PLATE-PUMP

$118.99

$

Usually ships in 3-6 days

0

18

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 29-6150

See Supercession: 110-9650
(Superseded to 110-9650)

$45.99

$

Usually ships in 3-6 days

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0
