30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 006000001 - 006999999) (1986) Engine, Onan Model No. B48g-Ga020 Type No. 4139f Camshaft And Flywheel Alternator Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

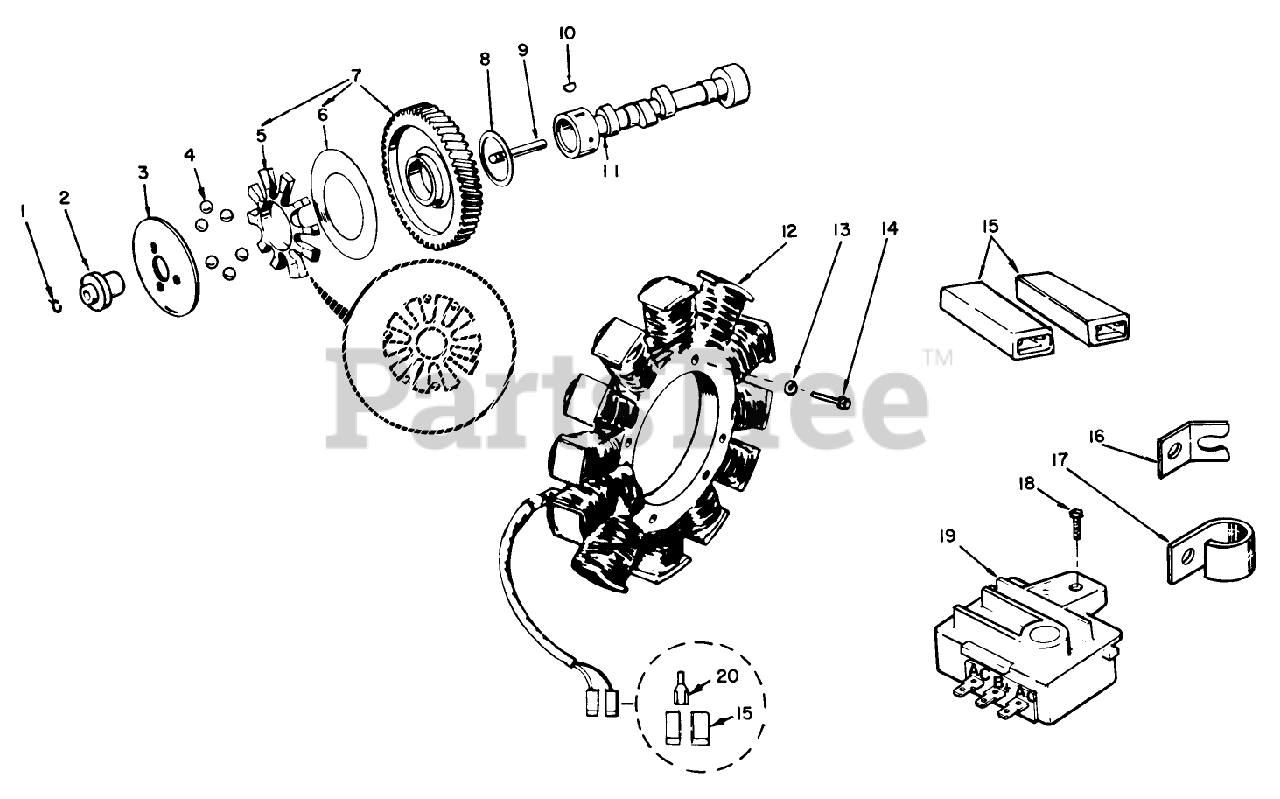

Engine, Onan Model No. B48g-Ga020 Type No. 4139f Camshaft And Flywheel Alternator Parts Diagram

  • Title
1

$

$

Not available

2

Toro 57-9130

HUB-GOVERNOR CUP

$

$

Not available

3

Toro 59-0450

CUP-GOVERNOR

$

$

Not available

4

Toro 57-9640

BEARING

$

$

Not available

5

Toro 57-9110

DISCONTINUED
(Superseded to 57-8210)

$

$

Not available

6

Toro 59-0410

DISCONTINUED
(Superseded to 57-8210)

$

$

Not available

7

Toro 57-8210

DISCONTINUED

$

$

Not available

8

Toro 57-8230

WASHER-THRUST

$

$

Not available

9

Toro 59-0400

PIN-CENTER

$

$

Not available

10

$7.99

$

Usually ships in 3-6 days

0

11

Toro 57-8220

See Supercession: 71-6320
(Superseded to 71-6320)

$1016.99

$

Usually ships in 3-6 days

0

12

Toro 57-9440

See Supercession: 92-0967
(Superseded to 92-0967)

$394.99

$

Usually ships in 3-6 days

0

13

Toro 325-32

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

14

Toro 3258-53

Screw

$

$

Currently unavailable

15

Toro 59-0570

TERMINAL CONN. BODY

$4.99

$

Usually ships in 3-6 days

0

16

Toro 59-0520

DISCONTINUED

$

$

Not available

17

Toro 59-0580

DISCONTINUED

$

$

Not available

18

Toro 59-1070

DISCONTINUED

$

$

Not available

19

Toro 57-9430

See Supercession: 117-2742
(Superseded to 117-2742)

$271.99

$

In Stock, only 2 left!

0

20

Toro 59-0590

TERMINAL

$

$

Not available
