30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 005000001 - 005999999) (1985) Grass Collectlon System Model No. 30557 (continued) (for Cutting Unit Model 30555) Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

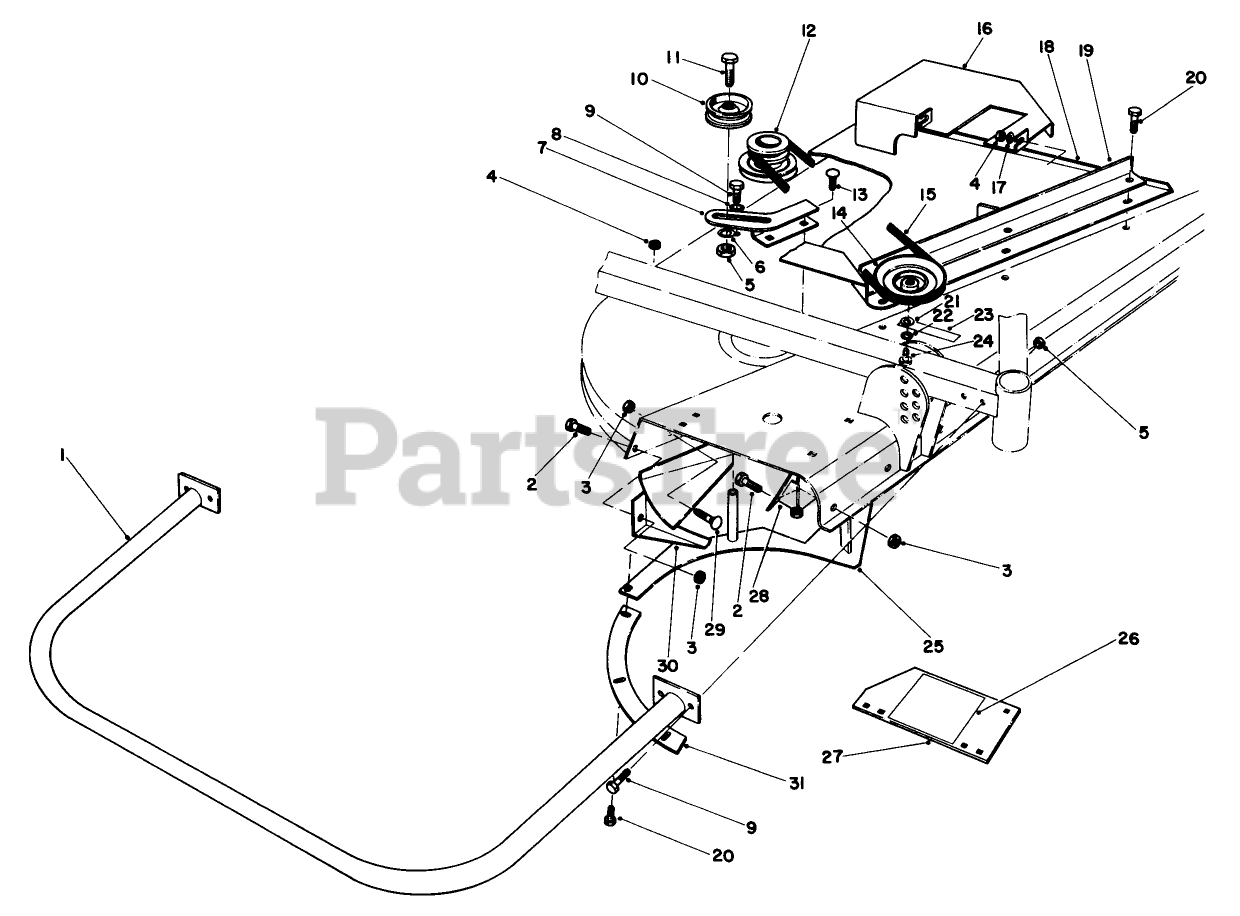

Grass Collectlon System Model No. 30557 (continued) (for Cutting Unit Model 30555) Parts Diagram

  • Title
1

Toro 44-7570

DISCONTINUED X-REF

$

$

Not available

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

4

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

5

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 43-0970

DISCONTINUED

$

$

Not available

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 43-1040

DISCONTINUED

$

$

Not available

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 43-0770

PULLEY WA *RO

$

$

Not available

13

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

14

Toro 44-5350

DISCONTINUED

$

$

Not available

15

Toro 43-1030

V-BELT

$52.99

$

Usually ships in 3-6 days

0

16

Toro 43-1200

DISCONTINUED

$

$

Not available

17

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 43-1160

DISCONTINUED

$

$

Not available

19

Toro 43-1130

DISCONTINUED

$

$

Not available

20

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 5-2958

Washer

$

$

Not available

22

Toro 325-33

SCREW-HH

$13.99

$

In Stock, only 4 left!

0

23

Toro 43-1120

WARNING DECAL

$

$

Not available

24

Toro 3235-18

1/4-20 X 5/8 CAPSCREW

$9.49

$

Usually ships in 3-6 days

0

25

Toro 44-7770

See Supercession: 44-7770-01
(Superseded to 44-7770-01)

$498.99

$

Usually ships in 3-6 days

0

26

Toro 40-5730

See Supercession: 66-1340
(Superseded to 66-1340)

$10.99

$

In Stock, only 1 left!

0

27

Toro 44-5750

DISCONTINUED

$

$

Not available

28

Toro 46-2350

See Supercession: 92-6297-01
(Superseded to 92-6297-01)

$138.99

$

Usually ships in 3-6 days

0

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

30

Toro 43-1060

See Supercession: 59-5350-01
(Superseded to 59-5350-01)

$254.99

$

Usually ships in 3-6 days

0

31

Toro 44-7780

See Supercession: 44-7780-01
(Superseded to 44-7780-01)

$32.99

$

Usually ships in 3-6 days

0

Toro 44-5480

BLADE-HIGH SAIL

Note: Not illustrated

$22.99

$

Usually ships in 3-6 days

0
