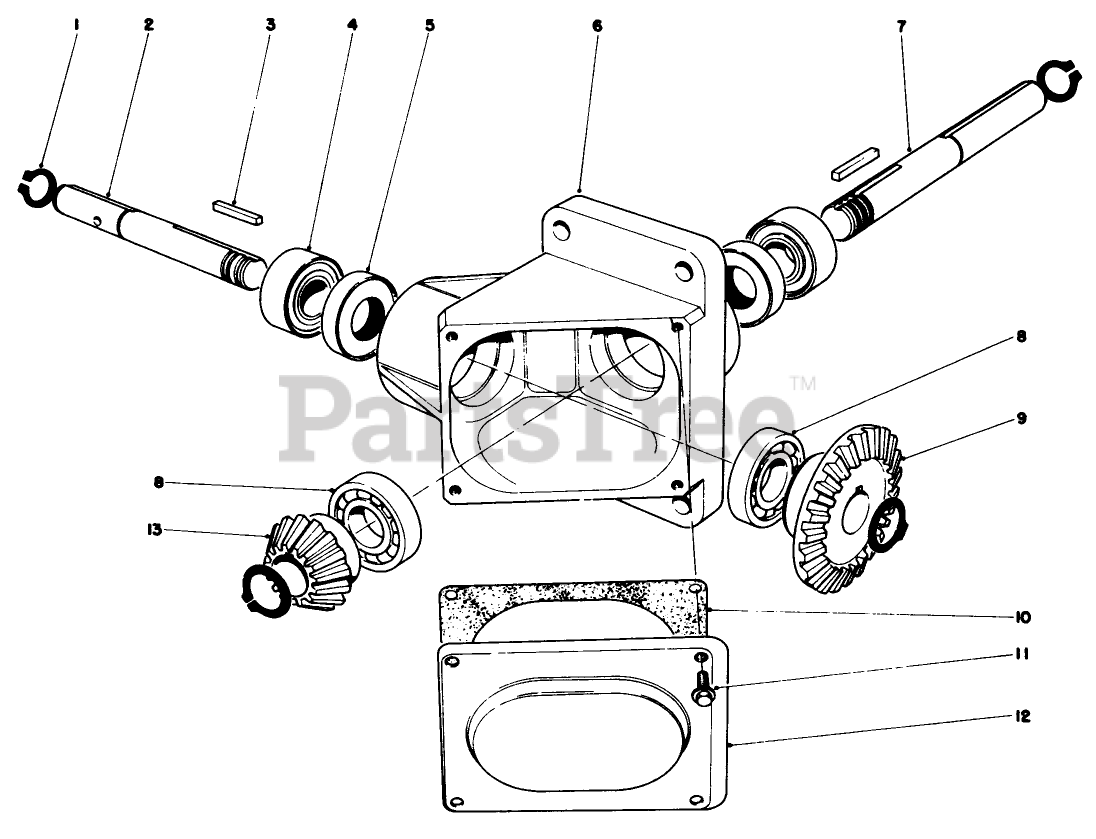

30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 000030001 - 000039999) (1983) 48" Snowthrower Model No. 30570 (optional) 4 Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

48" Snowthrower Model No. 30570 (optional) 4 Parts Diagram

  • Title
1

Toro 32120-72

RING-SNAP

$2.49

$

In Stock, Qty 20+

0

2

Toro 30-0590

DISCONTINUED

$

$

Not available

3

Toro 30-0660

See Supercession: 3257-5
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 20+

0

4

Toro 30-0630

DISCONTINUED

$

$

Not available

5

Toro 30-0640

See Supercession: 253-122
(Superseded to 253-122)

$7.49

$

Usually ships in 3-6 days

0

6

Toro 30-0650

GEAR BOX HSG

$

$

Not available

7

Toro 37-5840

DISCONTINUED

$

$

Not available

8

Toro 30-0620

DISCONTINUED

$

$

Not available

9

Toro 30-0670

DISCONTINUED

$

$

Not available

10

Toro 30-0680

DISCONTINUED

$

$

Not available

11

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

12

Toro 30-0690

DISCONTINUED

$

$

Not available

13

Toro 30-0600

DISCONTINUED

$

$

Not available
