30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 000020001 - 000029999) (1982) Valve And Lever Assembly Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

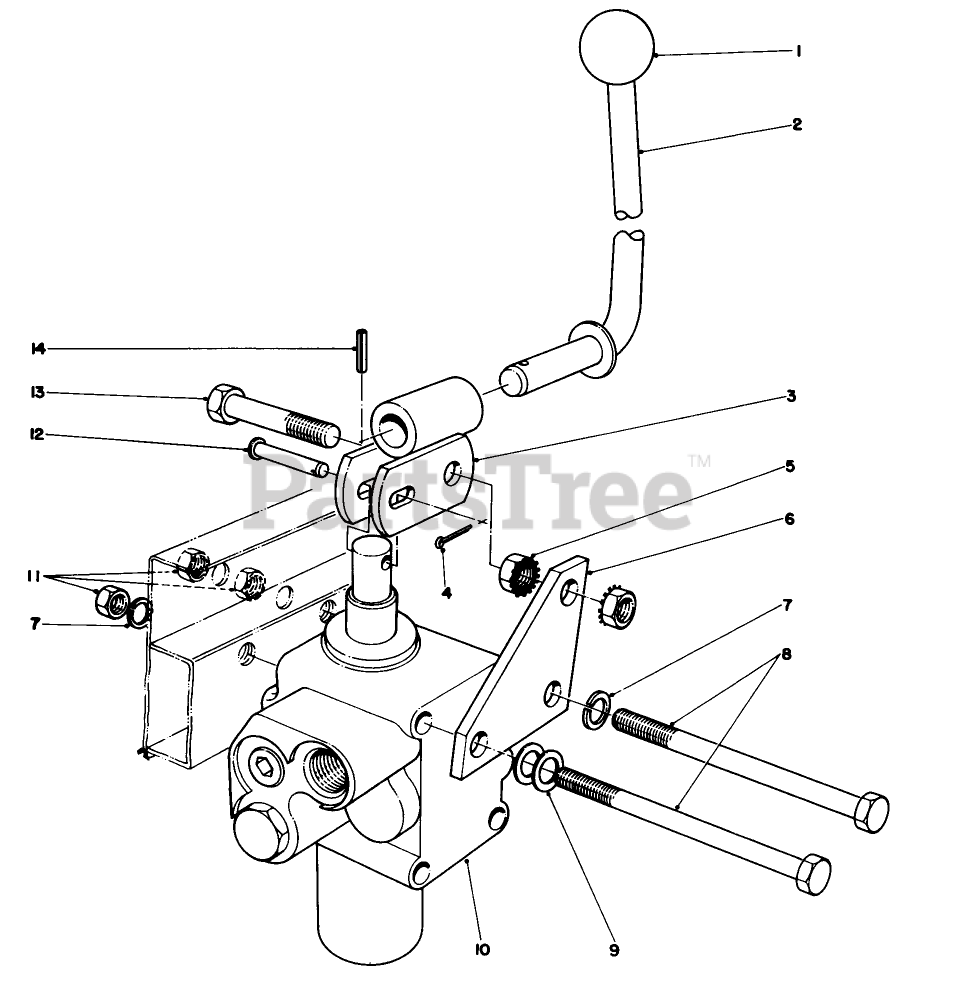

Valve And Lever Assembly Parts Diagram

  • Title

1

Toro 233-39

KNOB-CONTROL

$16.99

$

Usually ships in 3-6 days

0

2

Toro 27-4200

See Supercession: 27-4200-03
(Superseded to 27-4200-03)

$

$

Not available

3

Toro 27-4220

See Supercession: 27-4220-03
(Superseded to 27-4220-03)

$105.99

$

Usually ships in 3-6 days

0

4

Toro 327-26

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

5

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

6

Toro 27-4230

See Supercession: 27-4230-03
(Superseded to 27-4230-03)

$

$

Not available

7

Toro 325-33

SCREW-HH

$13.99

$

In Stock, only 4 left!

0

8

Toro 321-24

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 43-1700

DISCONTINUED

$

$

Not available

11

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

12

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

13

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0
