30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 000020001 - 000029999) (1982) Hydraulic Valve And Lift Arm And Cylinders Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

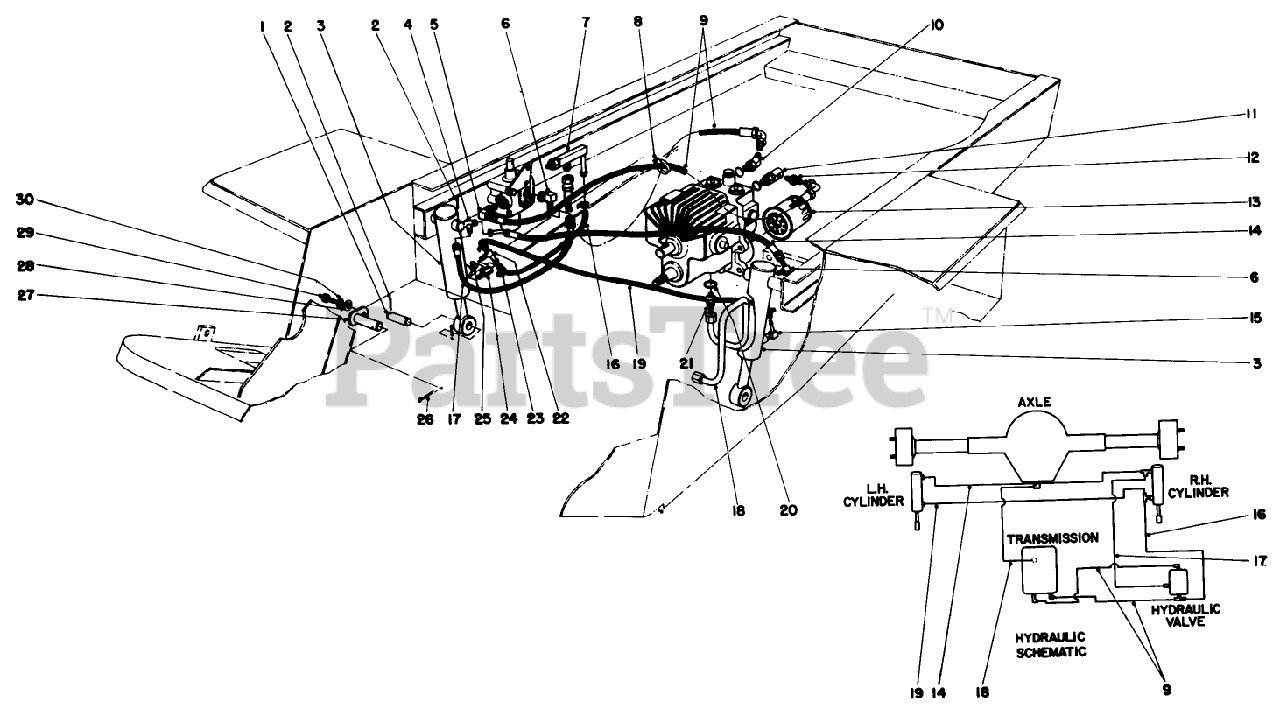

Hydraulic Valve And Lift Arm And Cylinders Parts Diagram

  • Title
1

Toro 27-4240

PIN-CYLINDER

$26.99

$

Usually ships in 3-6 days

0

2

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

3

Toro 43-5260

See Supercession: 83-7000
(Superseded to 83-7000)

$502.99

$

Usually ships in 3-6 days

0

4

Toro 353-566

FITTING-TEE, ADJ.

$

$

Not available

5

Toro 353-374

See Supercession: 103-1802
(Superseded to 103-1802)

$23.99

$

In Stock, only 2 left!

0

6

Toro 353-375

FITTING-ELBOW, 90

$57.99

$

Usually ships in 3-6 days

0

7

Toro 38-2550

DISCONTINUED

$

$

Not available

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 38-2560

DISCONTINUED

$

$

Not available

10

Toro 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

11

Toro 36-7960

DISCONTINUED

$

$

Not available

12

Toro 353-678

DISCONTINUE

$

$

Not available

13

Toro 23-2300

FILTER-OIL, TRANSMISSION

$13.99

$

In Stock, Qty 5

0

14

Toro 27-5010

DISCONTINUED

$

$

Not available

15

Toro 304-99

STEM-HOSE

$40.99

$

Usually ships in 3-6 days

0

16

Toro 27-4490

DISCONTINUED

$

$

Not available

17

Toro 27-5020

DISCONTINUED

$

$

Not available

18

Toro 27-3760

DISCONTINUED

$

$

Not available

19

Toro 27-4480

See Supercession: 109-0281
(Superseded to 109-0281)

$15.99

$

Usually ships in 3-6 days

0

20

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

21

Toro 353-385

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

22

Toro 353-567

DISCONTINUED

$

$

Not available

23

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

24

Toro 353-565

DISCONTINUED

$

$

Not available

25

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

26

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

27

Toro 27-4310

See Supercession: 27-4310-01
(Superseded to 27-4310-01)

$41.99

$

Usually ships in 3-6 days

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

30

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0
