30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 000020001 - 000029999) (1982) Cutting Unit Model No. 30562 Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

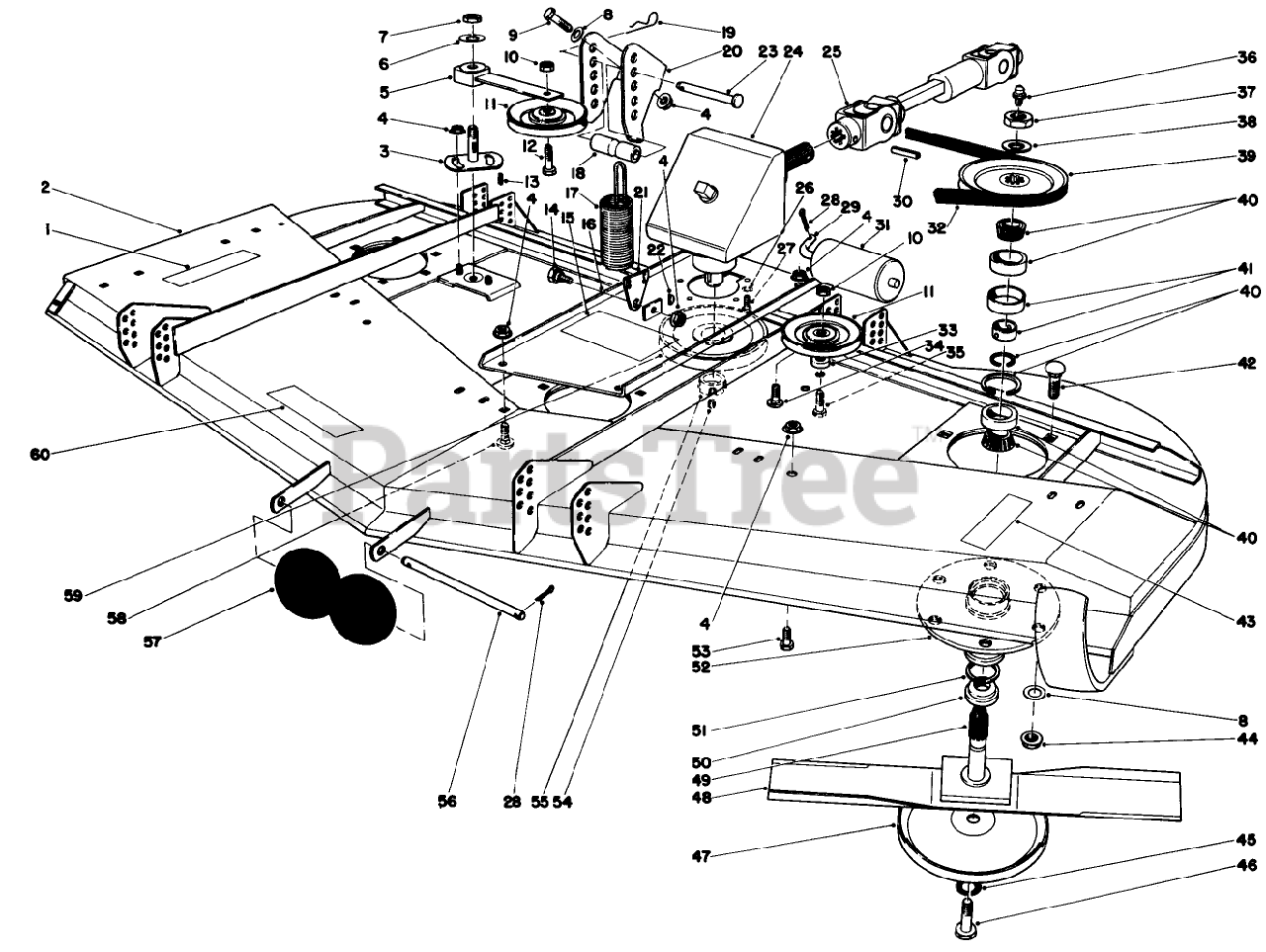

Cutting Unit Model No. 30562 Parts Diagram

  • Title

1

Toro 26-7980

DISCONTINUED

$

$

Not available

2

Toro 44-5960

See Supercession: 52-5780
(Superseded to 52-5780)

$

$

Not available

3

Toro 44-6300

PLATE-IDLER

$139.99

$

Usually ships in 3-6 days

0

4

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Toro 27-8580

See Supercession: 99-1297
(Superseded to 99-1297)

$160.99

$

In Stock, only 1 left!

0

6

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

7

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

9

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

11

Toro 27-1080

DISCONTINUED X-REF

$

$

Not available

12

Toro 321-16

See Supercession: 120-2011
(Superseded to 120-2011)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

14

Toro 46-3380

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

15

Toro 44-6470

See Supercession: 55-4300
(Superseded to 55-4300)

$14.99

$

Usually ships in 3-6 days

0

16

Toro 44-6380

DISCONTINUED

$

$

Not available

17

Toro 46-3200

See Supercession: 46-3200-01
(Superseded to 46-3200-01)

$99.99

$

Usually ships in 3-6 days

0

18

Toro 40-0300

SPACER

$

$

Not available

19

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

20

Toro 46-2620

SPRING BRACKET *R

$106.99

$

Usually ships in 3-6 days

0

21

Toro 46-3190

DISCONTINUED

$

$

Not available

22

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

23

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

24

Toro 8-0909

DISCONTINUED

$

$

Not available

25

Toro 27-4520

UNIVERSAL JOINT

$

$

Not available

26

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

27

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

28

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

29

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

30

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

31

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

32

Toro 44-6260

V-BELT

$68.99

$

In Stock, only 3 left!

0

33

Toro 44-6390

SPACER

$23.99

$

Usually ships in 3-6 days

0

34

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

35

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

36

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

37

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

38

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

39

Toro 44-6340

PULLEY AND HUB ASM

$70.99

$

In Stock, only 1 left!

0

40

Toro 27-0960

BEARING ASM

$69.99

$

In Stock, only 3 left!

0

41

Toro 27-5970

SPACER-SET, MATCHED

$71.99

$

In Stock, only 1 left!

0

42

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

43

Toro 26-7970

CAUTION DECAL (BLADE)

$

$

Not available

44

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

45

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

46

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

47

Toro 27-1000

See Supercession: 72-9361
(Superseded to 72-9361)

$42.99

$

Usually ships in 3-6 days

0

48

Toro 44-6250

See Supercession: 44-6250-03
(Superseded to 44-6250-03)

$26.99

$

In Stock, only 3 left!

0

49

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

50

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

51

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

52

Toro 27-0880

See Supercession: 61-4160
(Superseded to 61-4160)

$138.99

$

In Stock, only 1 left!

0

53

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

54

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

55

Toro 27-6140

BUSHING-LOCK, TAPER

$103.99

$

Usually ships in 3-6 days

0

56

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

57

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

58

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

59

Toro 27-6110

DISCONTINUED

$

$

Not available

60

Toro 26-7960

See Supercession: 68-7280
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0
