30560x99A - Briggs & Stratton 30" Rear-Engine Riding Mower (1998) (AAFES) Body Chassis Parts Diagram

30" Rear-Engine Riding Mower

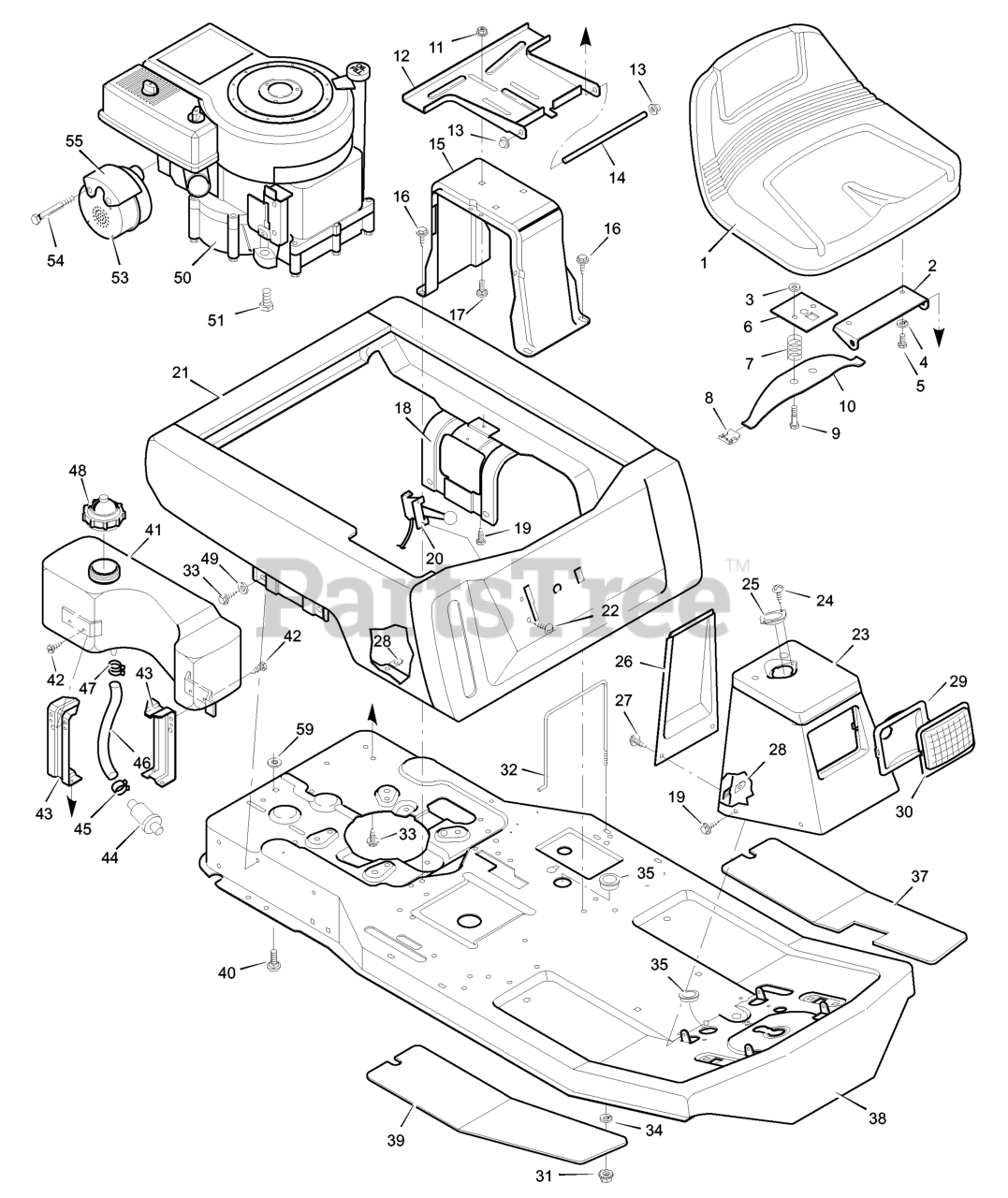

Body Chassis Parts Diagram

  • Title

$329.99

$

Usually ships in 2-12 days

0

2

Murray 056516E700

Hinge, Seat

$

$

Not available

3

Murray 028X64MA

Retainer
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

4

Murray 018X16MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

5

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

6

Murray 091963 Z

Plate, Seat Switch

$

$

Currently unavailable

7

Murray 164X26MA

Spring, Compression

$3.49

$

Usually ships in 2-12 days

0

8

Murray 091822MA

Glide, Seat Spring

$8.49

$

Usually ships in 2-12 days

0

9

Murray 009X38MA

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

10

Murray 091964MA

Spring, Seat

$

$

Not available

11

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Murray 056518E700

Bracket, Seat Pivot

$

$

Not available

13

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

14

Murray 056537 Z

Rod, Seat Hinge

$

$

Currently unavailable

15

Murray 056517E700

Support, Seat

$

$

Currently unavailable

16

$

$

Not available

17

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

18

Murray 055017E700

Support, Body

Note: (Included with Ref. No. 21)

$17.99

$

Usually ships in 2-12 days

0

19

$4.49

$

Usually ships in 2-12 days

0

20

Murray 056599

Throttle Control

$

$

Currently unavailable

$

$

Currently unavailable

22

$4.49

$

In Stock, only 2 left!

0

23

Murray 056570E245

Console Assembly

$

$

Currently unavailable

24

$4.49

$

In Stock, only 2 left!

0

25

Murray 056022MA

Bearing, Steering Post

$

$

Not available

26

Murray 055023E276

Console, Plate

$

$

Currently unavailable

27

$4.49

$

Usually ships in 2-12 days

0

28

$3.49

$

Usually ships in 2-12 days

0

29

Murray 056241 Z

Reflector

$

$

Currently unavailable

30

$

$

Not available

31

Murray 015X66MA

Locknut
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

32

Murray 054800 Z

Clamp, Battery

$

$

Currently unavailable

33

$4.49

$

In Stock, only 2 left!

0

34

$

$

Currently unavailable

35

Murray 021268

Grommet

$

$

Currently unavailable

37

Murray 056107

Mat, Left

$

$

Currently unavailable

38

Murray 56611E276

Frame Assembly

$

$

Currently unavailable

39

Murray 056106

Mat, Right

$

$

Currently unavailable

40

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

41

Murray 055805

Tank, Fuel

$

$

Not available

42

$4.49

$

In Stock, only 1 left!

0

43

Murray 1401271E701MA

Bracket, Fuel Tank

$19.99

$

Usually ships in 2-12 days

0

44

Murray 056002

Filter, Fuel

$

$

Currently unavailable

45

Murray 095197MA

Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

46

Murray 091022

Line, Fuel

$

$

Not available

47

Murray 023713MA

Clamp
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

48

Murray 092317MA

Cap, Fuel

$10.99

$

In Stock, Qty 7

0

49

Murray 0019X6

Washer

$3.49

$

Usually ships in 2-12 days

0

50

Engine *

$

$

Not available

51

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

53

Murray 090330

Muffler

$

$

Currently unavailable

54

$4.99

$

Usually ships in 2-12 days

0

55

Murray 090332

Shield, Heat

$

$

Currently unavailable

59

Murray 019X66

Washer

$

$

Currently unavailable

--

Murray F-99619

Instruction Book & Parts List

$

$

Currently unavailable

--

Murray 44X6664

Decal, Right Panel

$

$

Currently unavailable

--

Murray 44X6663

Decal, Left Panel

$

$

Currently unavailable

--

Murray 44X6651

Decal, Shift

$

$

Currently unavailable

--

Murray 44X6554

Decal, Clutch/Brake

$10.99

$

In Stock, only 1 left!

0

--

Murray 44X7325MA

Decal, Warning

$16.99

$

Usually ships in 2-12 days

0
