30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) V-PLOW MODEL NO. 30750 (OPTIONAL) Parts Diagram

52" Rear-Discharge Mower Deck

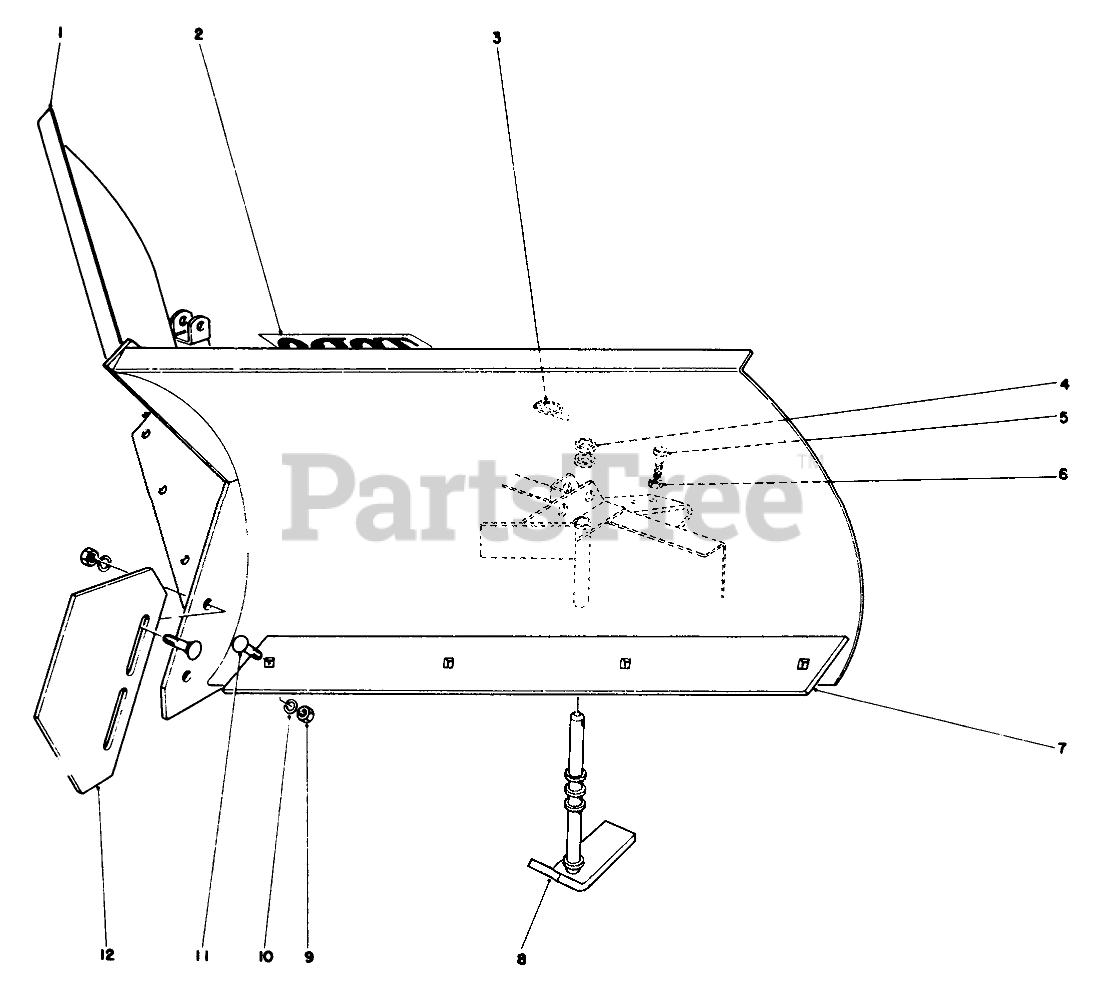

V-PLOW MODEL NO. 30750 (OPTIONAL) Parts Diagram

  • Title
1

Toro 23-9960

V-Plow

$

$

Not available

2

Toro 18-2180

Decal
(Superseded to 66-6140)

$27.99

$

In Stock, only 3 left!

0

3

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

4

Toro 20-4370

SPACER TUBE B

$32.99

$

Usually ships in 3-6 days

0

5

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

6

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

7

Toro 24-5570

Blade-Scraper
(Superseded to 24-5570-01)

$258.99

$

Usually ships in 3-6 days

0

8

Toro 24-5540

Skid
(Superseded to 24-5540-01)

$294.99

$

Usually ships in 3-6 days

0

9

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

11

Toro 3233-2

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

12

Toro 24-5530

Nose Skid
(Superseded to 24-5530-01)

$316.99

$

Usually ships in 3-6 days

0
