30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) V-PLOW INSTALLATION NO. 30755 (OPTIONAL) Parts Diagram

52" Rear-Discharge Mower Deck

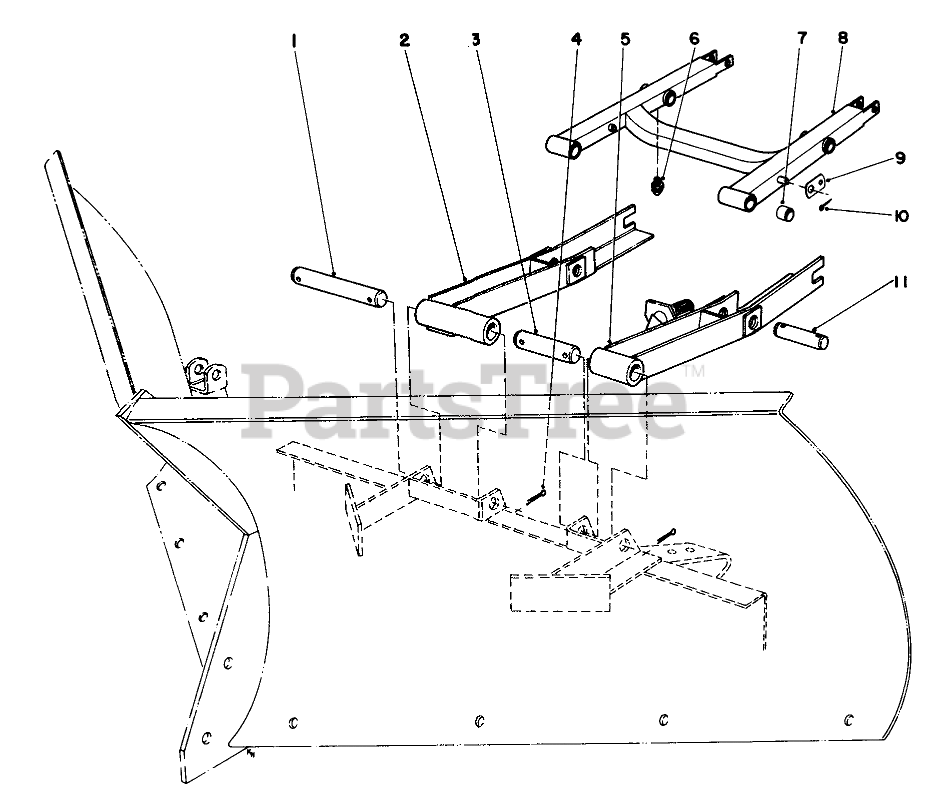

V-PLOW INSTALLATION NO. 30755 (OPTIONAL) Parts Diagram

  • Title

1

Toro 28-5490

PIN-PLAIN

$115.99

$

Usually ships in 3-6 days

0

2

Toro 28-5510

RH PUSH ARM WA R

$1381.99

$

Usually ships in 3-6 days

0

3

Toro 25-1350

PIN-PLAIN

$236.99

$

Usually ships in 3-6 days

0

4

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

5

Toro 28-5500

LH PUSH ARM WA R

$

$

Not available

6

Toro 302-53

GREASE FITTING

$

$

Not available

7

Toro 256-101

7/8 ID X 1.128 X 7/8 LG BSHG

$10.99

$

Usually ships in 3-6 days

0

8

Toro 27-4270

Lift Arm (Incl. Ref. #6 & 7)

Note: Parts must be ordered for mounting V-Plow on Model No. 30790 order parts separately.

$

$

Not available

9

Toro 27-5270

BRAKE SPRNG STRAP R

Note: Parts must be ordered for mounting V-Plow on Model No. 30790 order parts separately.

$

$

Not available

10

Toro 3272-12

PIN-COTTER

Note: Parts must be ordered for mounting V-Plow on Model No. 30790 order parts separately.

$0.99

$

In Stock, Qty 17

0

11

Toro 28-6460

PIN R

$

$

Not available

Toro 28-5470

TIRE CHAINS (1 PAIR)

Note: Not illustrated

$425.99

$

Usually ships in 3-6 days

0
