30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) SEAT KIT NO. 30764 Parts Diagram

52" Rear-Discharge Mower Deck

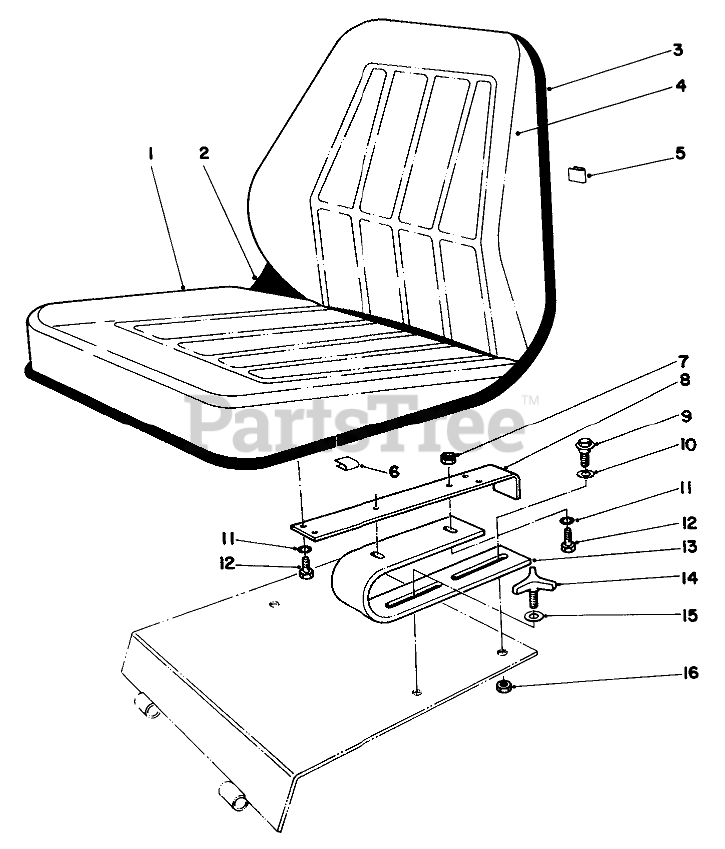

SEAT KIT NO. 30764 Parts Diagram

  • Title
1

Toro 351-76

Seat-Cushion (Incl. Ref. #5 & 6)
(Superseded to 104-4620)

$

$

Not available

2

Toro 351-77

Shell
(Superseded to 92-6534)

$

$

Not available

3

Toro 351-78

EDGING

$

$

Not available

4

Toro 351-75

Backrest (Incl. Ref. #5 & 6)

$

$

Not available

5

$

$

Not available

6

$

$

Not available

7

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

8

Toro 46-9120

Mount-Seat
(Superseded to 46-9120-03)

$

$

Not available

9

Toro 27-5240

BOLT-SHOULDER

$23.99

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 46-9110

Spring-Seat
(Superseded to 46-9110-03)

$162.99

$

Usually ships in 3-6 days

0

14

$

$

Currently unavailable

15

Toro 36-8020

WASHER

$

$

Not available

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

Toro 49-8130

Seat Assembly (Incl. Ref. #1-6)
(Superseded to 104-4620)

Note: Not illustrated

$

$

Not available
