30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) REAR AXLE ASSEMBLY Parts Diagram

52" Rear-Discharge Mower Deck

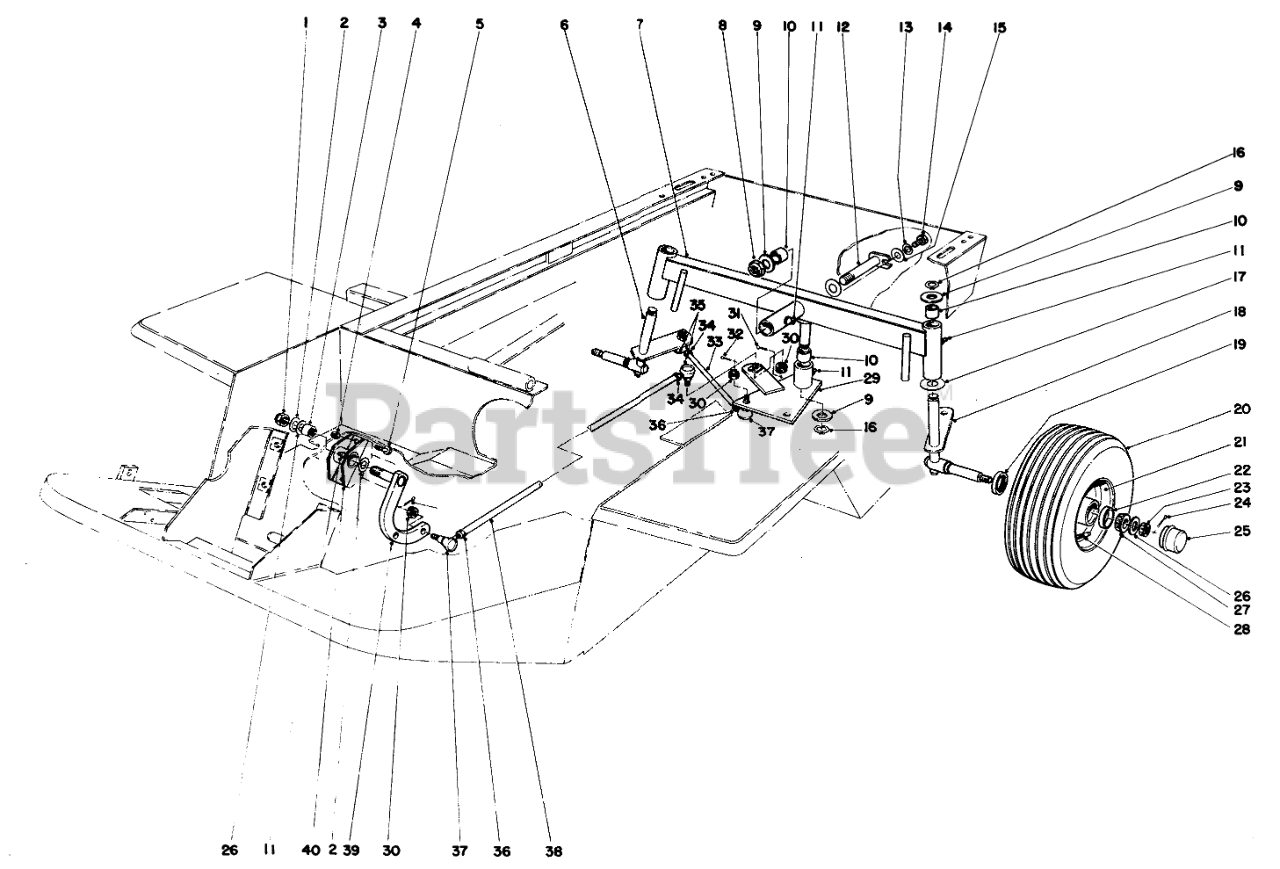

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 7

0

2

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

3

Toro 252-6

BEARING-NEEDLE

$13.99

$

In Stock, Qty 13

0

4

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

5

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

6

Toro 39-8900

Spindle R.H.
(Superseded to 39-8900-03)

$365.99

$

Usually ships in 3-6 days

0

7

Toro 44-9090

Rear Axle (Incl. Ref. #10 & 11)

$1016.99

$

Usually ships in 3-6 days

0

8

Toro 3296-49

NUT-LOCK, NI

$14.99

$

In Stock, only 2 left!

0

9

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 13

0

10

Toro 3-0348

BUSHING
(Superseded to 125-5196)

$7.49

$

In Stock, Qty 16

0

11

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

12

Toro 27-4060

Pin-RearAxle
(Superseded to 27-4060-01)

$

$

Not available

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

17

Toro 256-121

WASHER-THRUST

$5.99

$

Usually ships in 3-6 days

0

18

Toro 39-8850

Spindle L.H.
(Superseded to 39-8850-03)

$365.99

$

Usually ships in 3-6 days

0

19

Toro 253-129

SEAL

$23.99

$

Usually ships in 3-6 days

0

20

Toro 231-104

TIRE 4 PLY

$

$

Not available

Toro 232-39

TUBE-INNER

Note: Not illustrated

$31.99

$

In Stock, only 1 left!

0

21

Toro 217-108

Rim (Incl. Ref. #22)

$

$

Not available

22

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 11

0

23

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

24

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 9

0

25

Toro 241-119

CAP-DUST

$13.99

$

In Stock, only 2 left!

0

26

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

27

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

28

Toro 232-35

VALVE STEM AND CAP ASM
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

29

Toro 44-9120

Steering Plate (Incl. Ref. #10 & 11)

$

$

Not available

30

Toro 32136-4

NUT-SLOTTED

$2.49

$

In Stock, Qty 10

0

31

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

32

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

33

Toro 27-4090

STRG TIE ROD R

$

$

Not available

34

Toro 3220-12

NUT-HJ (LH THREAD)

$2.49

$

Usually ships in 3-6 days

0

35

Toro 21-0150

Socket Assembly L.H. (Incl. Ref. #30)
(Superseded to 99-5687)

$152.99

$

Usually ships in 3-6 days

0

36

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

37

Toro 21-0140

Socket Assembly R.H. (Incl. Ref. #30)
(Superseded to 99-5686)

$

$

Not available

38

Toro 44-9110

REAR STRG TUBE PP

$

$

Not available

39

Toro 27-5230

PIVOT ARM WA

$

$

Not available

40

Toro 27-3640

Pivot Mount (Incl. Ref. #3 & 11)

$

$

Not available
