30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) HYDRAULIC VALVE AND LIFT ARM AND CYLINDERS Parts Diagram

52" Rear-Discharge Mower Deck

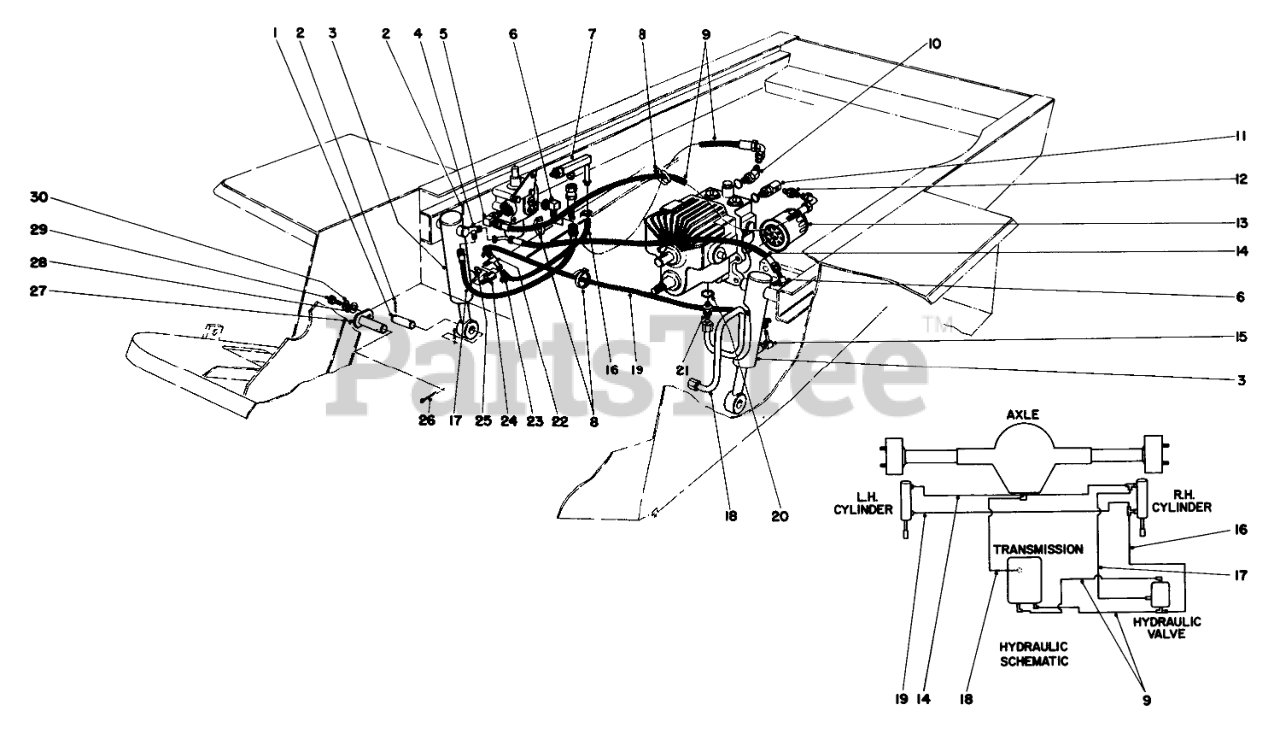

HYDRAULIC VALVE AND LIFT ARM AND CYLINDERS Parts Diagram

  • Title
1

Toro 27-4240

PIN-CYLINDER

$26.99

$

Usually ships in 3-6 days

0

2

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

3

Toro 43-5260

Lift Cylinder
(Superseded to 83-7000)

$502.99

$

Usually ships in 3-6 days

0

4

Toro 353-566

FITTING-TEE, ADJ.

$

$

Not available

5

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

6

Toro 353-375

FITTING-ELBOW, 90

$57.99

$

Usually ships in 3-6 days

0

7

Toro 38-2550

Fitting Assembly

$

$

Not available

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 38-2560

TRANS-VALVE HOSE

$

$

Not available

10

Toro 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

11

Toro 36-7960

SPECIAL FITTING PP

$

$

Not available

12

Toro 353-678

Adapter

$

$

Not available

13

Toro 23-2300

FILTER-OIL, TRANSMISSION

$13.99

$

In Stock, only 2 left!

0

14

Toro 27-5010

RH CYL HOSE

$

$

Not available

15

Toro 304-99

STEM-HOSE

$40.99

$

Usually ships in 3-6 days

0

16

$

$

Not available

17

Toro 27-5020

RH HOSE

$

$

Not available

18

Toro 27-3760

HYORAULIC TUBE

$

$

Not available

19

Toro 274480

Hose Low Pressure

$

$

Currently unavailable

20

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

21

Toro 353-385

Fitting (Incl. Ref. #20)

$25.99

$

Usually ships in 3-6 days

0

22

Toro 353-567

MALE TEE FITTING

$

$

Not available

23

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

24

Toro 353-565

CONN FITTING

$

$

Not available

25

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

26

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

27

Toro 27-4310

Pin-Pivot
(Superseded to 27-4310-01)

$41.99

$

Usually ships in 3-6 days

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

30

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
