30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) HYDRAULIC CYLINDER NO. 43-5260 Parts Diagram

52" Rear-Discharge Mower Deck

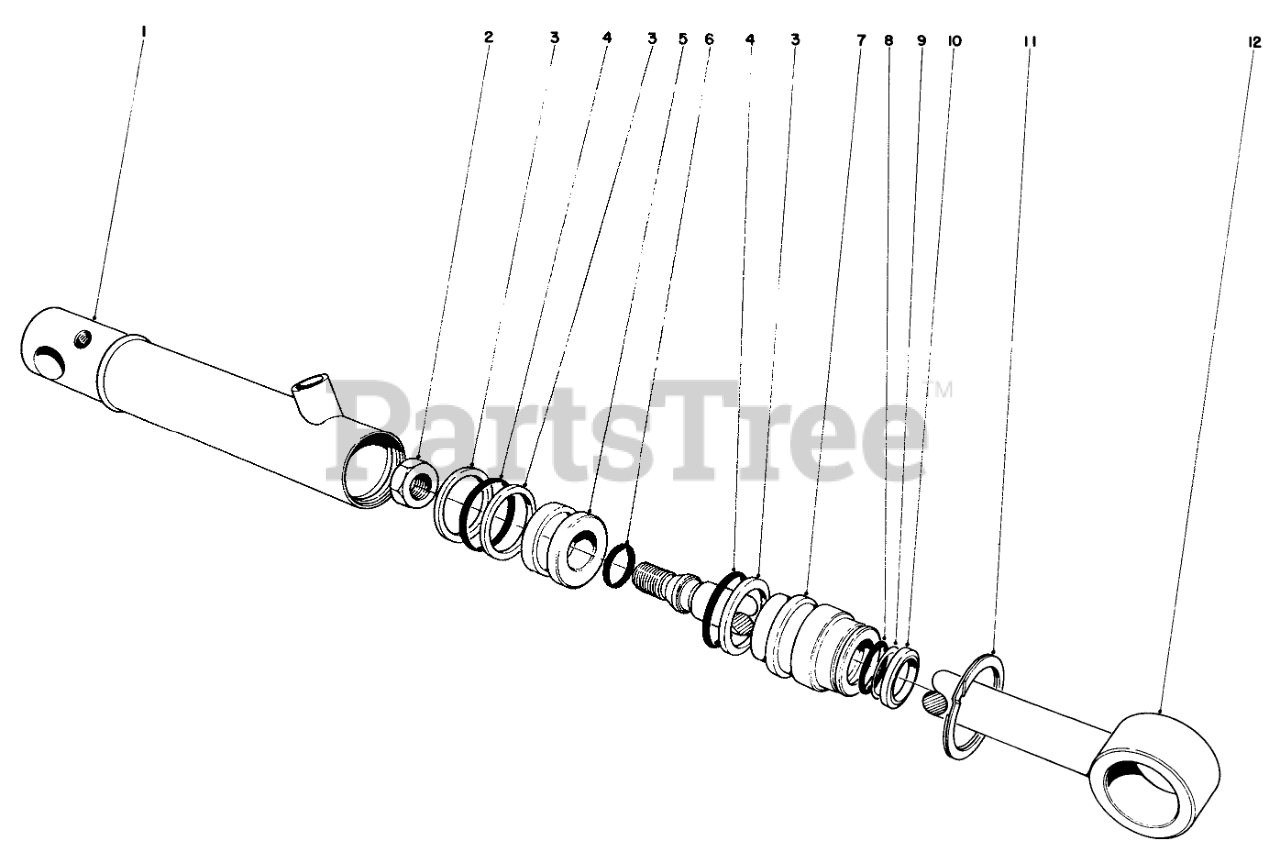

HYDRAULIC CYLINDER NO. 43-5260 Parts Diagram

  • Title

1

Tube Assembly

$

$

Not available

2

Toro 43-5130

Nut
(Superseded to 32152-10)

$0.99

$

Usually ships in 3-6 days

0

3

Back Up Washer

$

$

Not available

4

O-Ring Piston

$

$

Not available

5

Toro 43-5150

PISTON

$270.99

$

Usually ships in 3-6 days

0

7

Toro 43-5140

HEAD

$147.99

$

Usually ships in 3-6 days

0

8

0-Ring

$

$

Not available

9

Leather

$

$

Not available

10

Dust Seal

$

$

Not available

11

Toro 43-5220

RING-RETAINING

$81.99

$

Usually ships in 3-6 days

0

12

Toro 43-5230

SHAFT W/CLEVIS

$

$

Not available

Toro 43-5250

Seal Repair Kit (Incl. Ref. #3, 4, 6, 8, 9 & 10)

Note: Not illustrated

$

$

Not available
