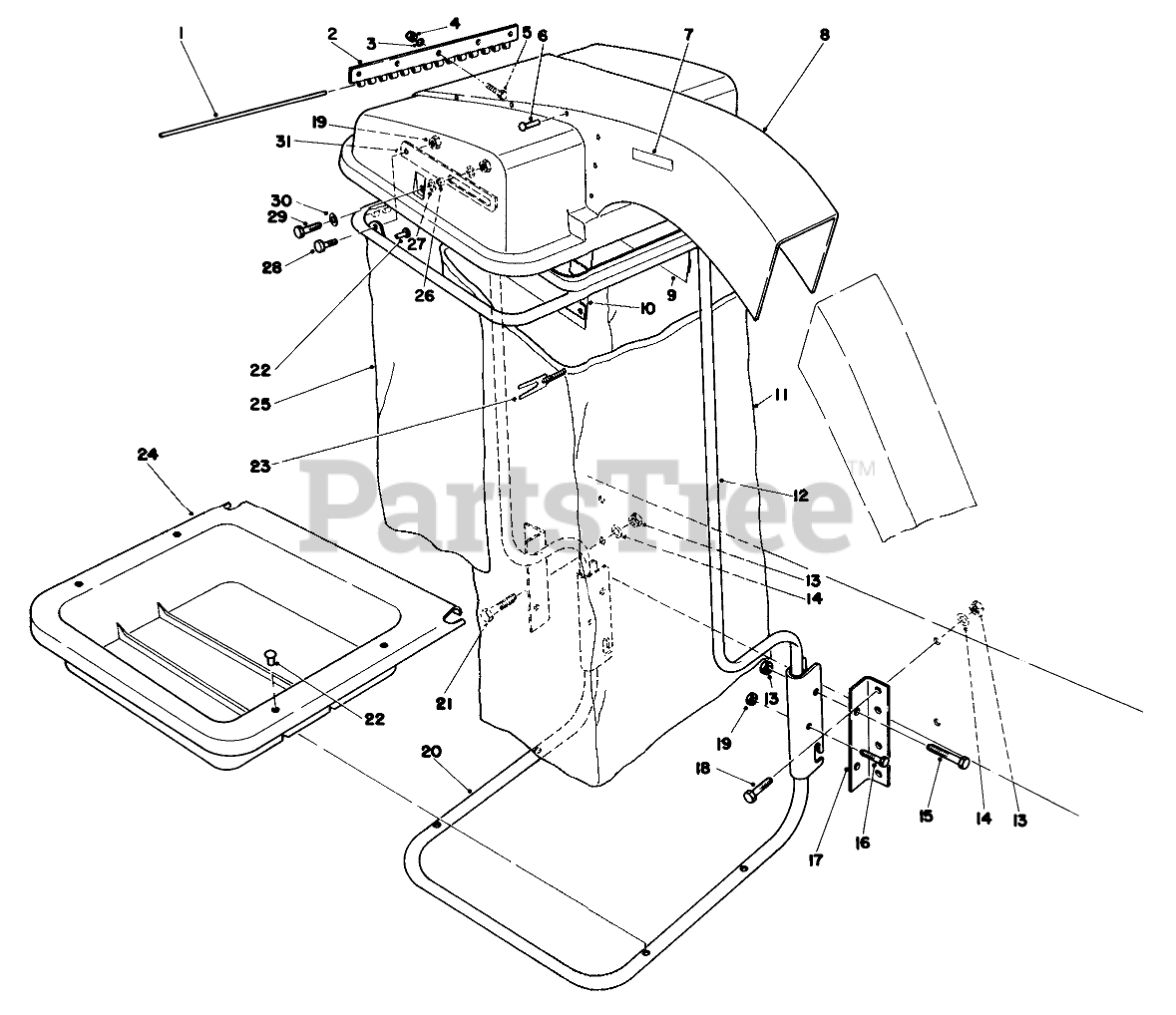

30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) GRASS COLLECTION SYSTEM MODEL NO. 30557 (FOR CUTTING UNIT MODEL 30555) Parts Diagram

52" Rear-Discharge Mower Deck

GRASS COLLECTION SYSTEM MODEL NO. 30557 (FOR CUTTING UNIT MODEL 30555) Parts Diagram

  • Title
1

Toro 43-1000

HOOD HINGE PIN

$

$

Not available

2

Hinge-Half

$

$

Not available

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

$0.99

$

In Stock, Qty 10

0

6

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

7

Toro 43-1100

Decal-Caution

$17.99

$

Usually ships in 3-6 days

0

8

Toro 11-2829

Hood Assembly (Incl. Ref. #2-7, 9 & 10)
(Superseded to 13-1649)

$922.99

$

Usually ships in 3-6 days

0

9

Toro 43-0600

Screen Left Hand
(Superseded to 43-0600-03)

$

$

Not available

10

Toro 43-0570

Screen Right Hand
(Superseded to 43-0570-03)

$

$

Not available

11

Toro 43-0990

BAG-CLOTH, 32"

$

$

Not available

Toro 43-0980

BAG-CLOTH, 38"

Note: Not illustrated

$

$

Not available

12

Toro 43-0620

Support Tube Assy. Upper (Incl. Ref. #22 & 25)
(Superseded to 67-7500)

$

$

Not available

13

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

14

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

17

Toro 43-1010

BRKT-FRAME B

$

$

Not available

18

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

20

Toro 43-0720

Support Tube Assy.-Lower (Incl. Ref. #22 & 24)

$1023.99

$

Usually ships in 3-6 days

0

21

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

$0.99

$

Usually ships in 3-6 days

0

23

Toro 3-2781

BAG CORD FASTENER

$

$

Not available

Toro 36-7770

RETAINER CORD

Note: Not illustrated

$

$

Not available

24

Tray Lower

$

$

Not available

25

Skirt-Bagging Frame

$

$

Not available

26

Toro 43-1020

SPACER - PIVOT ARM

$

$

Not available

27

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

29

Toro 3224

Screw

$

$

Currently unavailable

30

Toro 3256-56

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

31

Toro 43-1050

Stop-Hood

$

$

Not available

Toro 44-9720

Template Bracket

Note: Not illustrated

$

$

Not available
