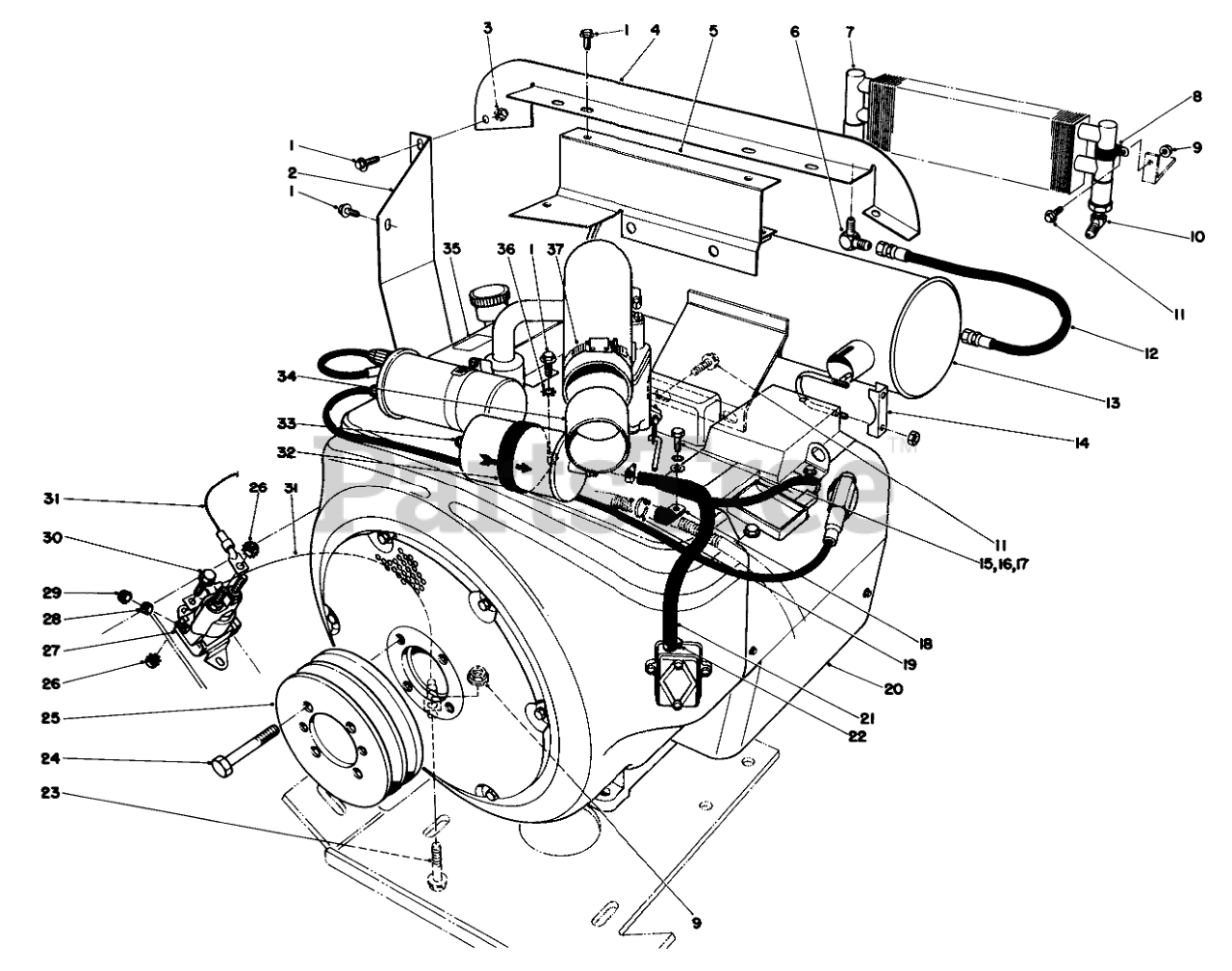

30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

52" Rear-Discharge Mower Deck

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

2

Toro 44-8690

Shield-Heat
(Superseded to 44-8690-03)

$

$

Not available

3

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

4

Toro 44-8710

Shroud-Engine
(Superseded to 44-8710-03)

$

$

Not available

5

Toro 44-9010

Bracket-Shield Support
(Superseded to 44-9010-03)

$99.99

$

Usually ships in 3-6 days

0

6

Toro 353-428

90DEG JIC FITTING

$

$

Not available

7

Toro 22-7320

OIL COOLER

$

$

Not available

8

Toro 2412-39

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 353-714

ELBOW

$37.99

$

Usually ships in 3-6 days

0

11

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

12

Toro 44-9020

OIL HOSE ASM

$

$

Not available

13

Toro 44-8960

Muffler
(Superseded to 99-5676)

$

$

Not available

Toro 46-2390

SPARK ARRESTOR MUFFLER

Note: Not illustrated

$

$

Not available

14

Toro 2412-37

MUFFLER CLAMP

$5.49

$

Usually ships in 3-6 days

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 2412-81

CLAMP-R

$4.49

$

Usually ships in 3-6 days

0

19

Toro 3290-336

Strap
(Superseded to 3290-379)

$0.99

$

In Stock, only 3 left!

0

20

Toro 221-765

Engine (Onan Model No. B48G-GA020 Type No. 4139F

$

$

Not available

21

Toro 44-9060

FUEL LINE

$

$

Not available

22

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

24

Toro 322-40

SCREW-HH

$

$

Not available

25

Toro 43-5340

Pulley-Engine
(Superseded to 43-5340-03)

$421.99

$

Usually ships in 3-6 days

0

26

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

27

Toro 44-9380

Solenoid
(Superseded to 99-5887)

$79.99

$

Usually ships in 3-6 days

0

28

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

29

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

30

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

31

Toro 10-7160

WIRE ASM

$65.99

$

Usually ships in 3-6 days

0

32

Toro 2412-44

1.875 ID HOSE CLAMP

$

$

Currently unavailable

33

Toro 18-1520

FiIter Gas
(Superseded to 108-3831)

$10.99

$

In Stock, only 1 left!

0

34

Toro 44-9450

AIR CLEANER ADAPTER

$

$

Not available

35

Toro 42-4180

SERVICE DECAL

$

$

Not available

36

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

37

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0
