30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) ELECTRICAL SCHEMATIC Parts Diagram

52" Rear-Discharge Mower Deck

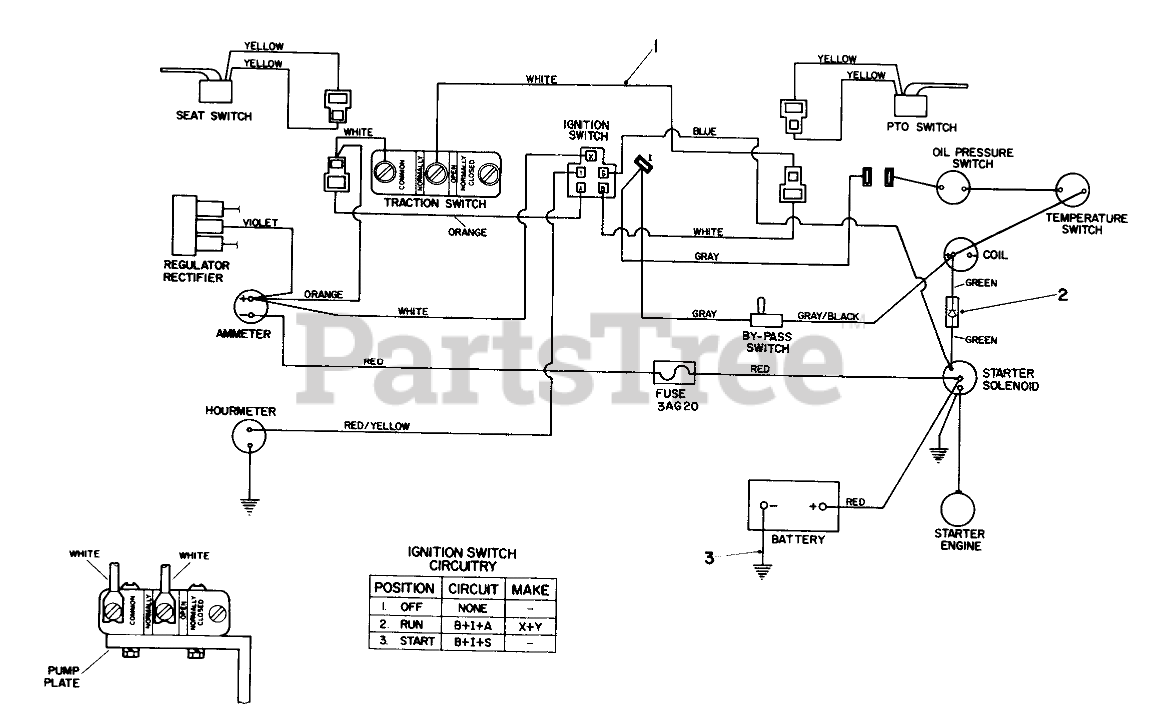

ELECTRICAL SCHEMATIC Parts Diagram

  • Title
1

Toro 44-9430

Wire Harness (Incl. Ref. #2)

$

$

Not available

2

Toro 44-9930

JUMPER WIRE ASM

$

$

Not available

3

Toro 27-5090

BATTERY GROUND WIRE

$52.99

$

Usually ships in 3-6 days
