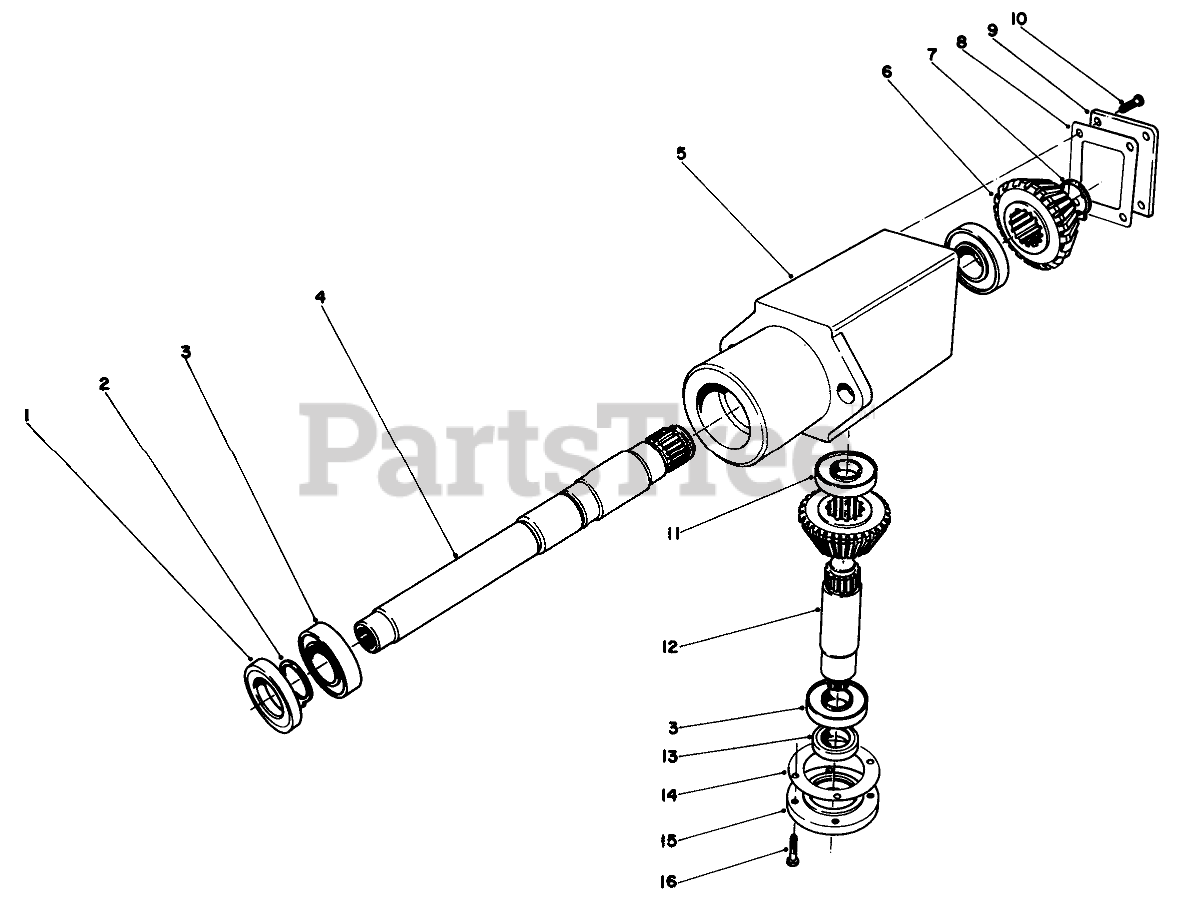

30560 - Toro 52" Rear-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) GRASS COLLECTION SYSTEM MODEL NO. 30557 (FOR CUTTING UNIT MODEL 30555) Parts Diagram

52" Rear-Discharge Mower Deck

GRASS COLLECTION SYSTEM MODEL NO. 30557 (FOR CUTTING UNIT MODEL 30555) Parts Diagram

  • Title
1

Toro 788020

Oil Seal

$

$

Currently unavailable

2

Toro 788019

Ring-Snap

$

$

Currently unavailable

3

Toro 780034

Bearing

$

$

Currently unavailable

4

Toro 776211

Shaft, Output

$

$

Currently unavailable

5

Toro 770026

Housing, Right Angle Drive

$

$

Currently unavailable

6

Toro 778046

Bevel Gear

$

$

Currently unavailable

7

Toro 788018

Ring-Snap

$

$

Currently unavailable

8

Toro 788028

Gasket

$

$

Currently unavailable

9

Toro 772035

Cover

$

$

Currently unavailable

10

Toro 702025

BRACKET

$

$

Not available

11

Toro 780024

Bearing

$

$

Currently unavailable

12

Toro 776210

Shaft, Input

$

$

Currently unavailable

13

Toro 788031

Oil Seal

$

$

Currently unavailable

14

Toro 788030

Gasket

$

$

Currently unavailable

15

Toro 786029

Cap & Seal Assembly (Incl. Ref. #13 & 16)

$

$

Currently unavailable

16

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Toro 43-0810

Gear Box Assembly-Complete (Incl. Ref. #1-16)

Note: Not illustrated

$

$

Not available
