30560 - Toro 52" Rear-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) ENGINE ONAN MODEL NO. B48G-GA020 TYPE NO. 4139E STARTER MOTOR Parts Diagram

52" Rear-Discharge Mower Deck

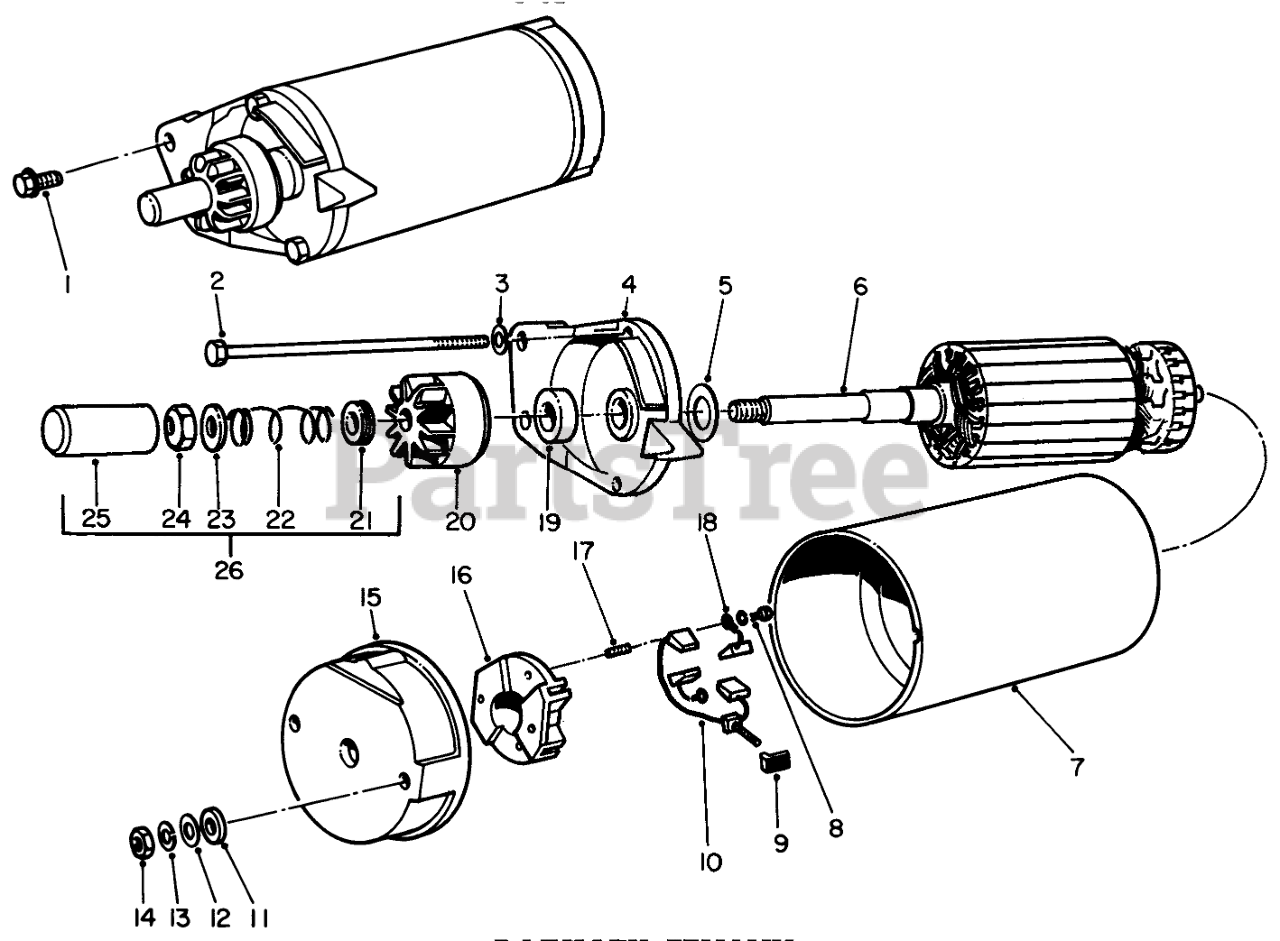

ENGINE ONAN MODEL NO. B48G-GA020 TYPE NO. 4139E STARTER MOTOR Parts Diagram

  • Title
1

Toro 850-0570

Screw-Cap, Hex Hd.

$

$

Currently unavailable

2

Toro 191-1048

Screw-Hex Hd.

$

$

Currently unavailable

3

Toro 850-0040

Washer, Lock

$

$

Currently unavailable

4

Toro 191-1597

Cap Assembly, Drive End

$

$

Currently unavailable

5

Toro 191-1038

Washer, Armature Thrust

$

$

Currently unavailable

6

Toro 191-1039

Armature

$

$

Currently unavailable

7

Housing, Starter Motor

Note: Not Sold Separately

$

$

Not available

8

Screw and Lockwasher

Note: Not Sold Separately

$

$

Not available

9

Bushing Insulation-Input Stud

Note: Not Sold Separately

$

$

Not available

10

Stud and Brush Assembly Input

Note: Not Sold Separately

$

$

Not available

11

Nut, Securing-Input Stud

Note: Not Sold Separately

$

$

Not available

12

Washer, Lock-Input Stud

Note: Not Sold Separately

$

$

Not available

13

Washer, Flat-Input Stud

Note: Not Sold Separately

$

$

Not available

14

Washer, Insulation-Input Stud

Note: Not Sold Separately

$

$

Not available

15

Toro 191-1532

Cap Assembly, Commutator (Incl. Ref. #9-14&16-18&20)

$

$

Currently unavailable

16

Brush Holder

Note: Not Sold Separately

$

$

Not available

17

Spring, Brush

Note: Not Sold Separately

$

$

Not available

18

Brush, Ground

Note: Not Sold Separately

$

$

Not available

19

Toro 191-1534

Cap, Dust

$

$

Currently unavailable

20

Toro 191-1156

Drive Assembly

$

$

Currently unavailable

21

Spacer, Dust Cover

Note: Not Sold Separately

$

$

Not available

22

Spring, Anti-Drift

Note: Not Sold Separately

$

$

Not available

23

Washer, Stop Nut

Note: Not Sold Separately

$

$

Not available

24

Nut, Stop

Note: Not Sold Separately

$

$

Not available

25

Cover, Dust

Note: Not Sold Separately

$

$

Not available

26

Toro 191-1359

Dust Cover Assembly (Incl. Ref. #21-25)

$

$

Currently unavailable

Toro 191-1533

Repair Kit, Brush, Spring and Stud (Incl. Ref. #10, 17-18)

Note: Not illustrated

$

$

Currently unavailable

Toro 191-1567

Motor Starter Complete

Note: Not illustrated

$

$

Currently unavailable
