30560 - Toro 52" Rear-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) ENGINE ONAN MODEL NO. B48G-GA020 TYPE NO. 4139E FUEL SYSTEM Parts Diagram

52" Rear-Discharge Mower Deck

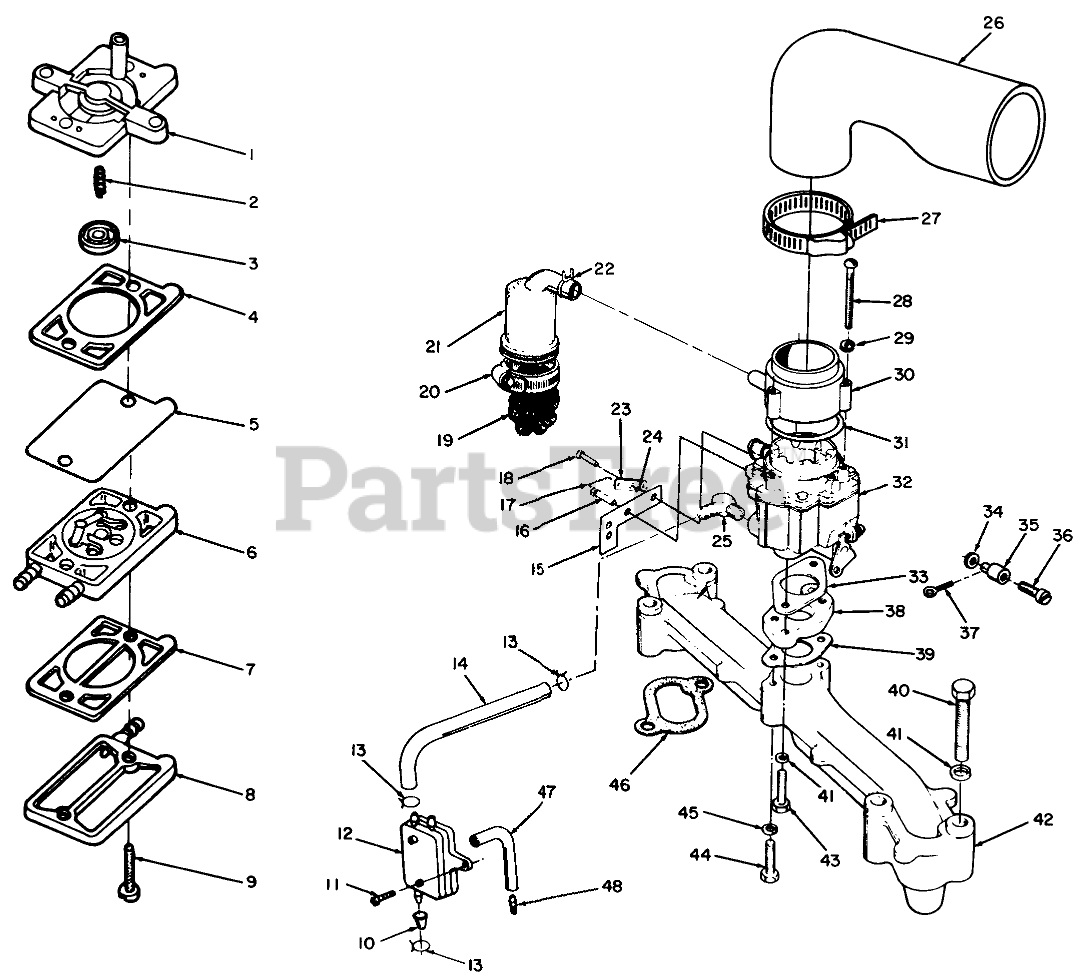

ENGINE ONAN MODEL NO. B48G-GA020 TYPE NO. 4139E FUEL SYSTEM Parts Diagram

  • Title

1

Toro 149-1324

Base, Pump

$

$

Currently unavailable

2

Toro 142-0545

Spring, Fuel Pump

$1.99

$

Usually ships in 3-6 days

0

3

Toro 142-0552

Plate, Drive-Fuel Pump

$

$

Currently unavailable

4

Toro 142-0541

Gasket-Pump Cover

$1.99

$

Usually ships in 3-6 days

0

5

Toro 142-0555

Diaphragm-Fuel Pump
(Superseded to 135-6320)

$1.99

$

In Stock, only 2 left!

0

6

Toro 142-0537

Valve Assembly, Reed-Fuel Pump (Includes Cap & Clamp)

$

$

Currently unavailable

7

Toro 149-1323

Gasket-Cover to Valve Assy.

$

$

Currently unavailable

8

Toro 149-1326

Cover-Pump

$

$

Currently unavailable

9

Toro 142-0540

Screw-Pump Cover to Body

$1.99

$

Usually ships in 3-6 days

0

10

Toro 149-1321

Cap, Fuel Outlet

$

$

Currently unavailable

11

Toro 815-0555

Screw, Tapping Pan Hd.

$

$

Currently unavailable

12

Toro 149-1322

Pump, Fuel-Vacuum Pluse (Incl. Ref. #1-9)

$

$

Currently unavailable

13

Toro 503-0301

Clamp, Hose

$

$

Currently unavailable

14

Toro 503-0874

Hose, Fuel (13")

$

$

Currently unavailable

15

Toro 153-0524

Bracket, Cable Choke

$

$

Currently unavailable

16

Toro 821-0002

Screw, Cap Hex Washer Hd.

$

$

Currently unavailable

17

Toro 153-0500

Link, Choke

$

$

Currently unavailable

18

Toro 815-0480

Screw, Shoulder

$

$

Currently unavailable

19

Toro 123-1428

Filter, Breather Tube

$

$

Currently unavailable

20

Toro 503-01071

Clamp, Breather Tube

$

$

Currently unavailable

21

Toro 123-1539

Tube, Crankcase Breather

$

$

Currently unavailable

22

Toro 503-0171

Camp, Hose

$

$

Currently unavailable

23

Toro 153-0523

Swivel, Choke

$

$

Currently unavailable

24

Toro 854-0010

Washer, Lock Internal Tooth

$

$

Currently unavailable

25

Toro 502-0313

Elbow-Hose

$

$

Currently unavailable

26

Toro 140-1428

Elbow Air Inlet

$

$

Currently unavailable

27

Toro 503-0274

Clamp Hose

$

$

Currently unavailable

28

Toro 813-0106

Screw-Machine Round Hd.

$

$

Currently unavailable

29

Toro 850-0030

Washer-Lock

$

$

Currently unavailable

30

Toro 140-1714

Adapter, Air Cleaner

$

$

Currently unavailable

31

Toro 509-0145

Seal, O-Ring

$

$

Currently unavailable

32

Toro 146-0348

Carburetor, Complete (Incl. Ref. #33)

$

$

Currently unavailable

33

Toro 154-0733

Gasket Carburetor Mounting

$

$

Currently unavailable

34

Toro 526-0140

Washer

$

$

Currently unavailable

35

Toro 152-0155

Swivel

$

$

Currently unavailable

36

Toro 815-0104

Screw

$

$

Currently unavailable

37

Toro 516-0059

Cotter Pin

$

$

Currently unavailable

38

Toro 154-1977

Adapter, Carburetor

$

$

Currently unavailable

39

Toro 145-0438

Gasket, Adapter to Manifold

$

$

Currently unavailable

40

Toro 800-0033

Screw, Cap-Hex Head

$

$

Currently unavailable

41

Toro 850-0045

Washer, Lock-Spring

$

$

Currently unavailable

42

Toro 154-2206

Manifold, Intake

$

$

Currently unavailable

43

Toro 800-0027

Screw Cap-Hex Hd.

$

$

Currently unavailable

44

Toro 800-0023

Screw Cap-Hex Hd.

$

$

Currently unavailable

45

Toro 850-0040

Washer, Lock

$

$

Currently unavailable

46

Toro 154-1744

Gasket, Manifold to Block

$

$

Currently unavailable

47

Toro 503-0663

Hose, Fuel Pump Vacuum

$

$

Currently unavailable

48

Toro 149-1299

Tube, Vacuum Port

Note: Part included in 103-0669 Gear Case Assembly

$

$

Currently unavailable
