30560 - Toro 52" Rear-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4139E CYLINDER BLOCK AND OIL SYSTEM Parts Diagram

52" Rear-Discharge Mower Deck

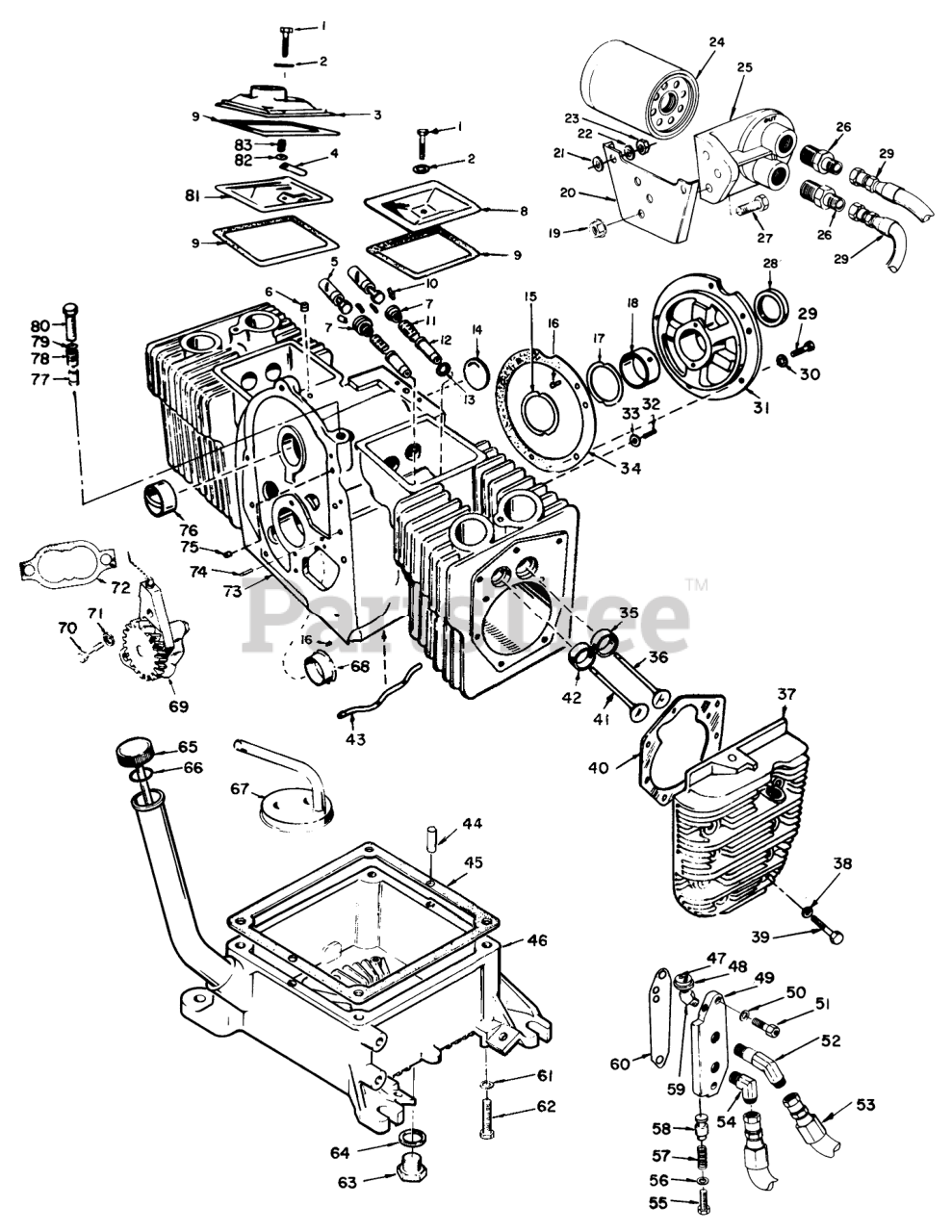

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4139E CYLINDER BLOCK AND OIL SYSTEM Parts Diagram

  • Title

1

Toro 800-0010

Screw-Cap Hex Hd.

$

$

Currently unavailable

2

Toro 526-0063

Washer, Flat-Copper

$

$

Currently unavailable

3

Toro 110-2274

Cover-Valve

$

$

Currently unavailable

4

Toro 123-1175

Reed-Breather Valve

$

$

Currently unavailable

5

Toro 115-0006

Tappet, Valve (Standard)

$

$

Currently unavailable

Toro 115-0006-02

Tappet, Valve (.002 Oversize)

Note: Not illustrated

$

$

Currently unavailable

6

Toro 517-0120

Plug, Breather Hole

$

$

Currently unavailable

7

Toro 110-0904

HYD MOTOR ASM

$

$

Currently unavailable

8

Toro 110-1879

RH LEVER / GRIP ASM
(Superseded to 103-0632)

$105.99

$

Usually ships in 3-6 days

0

9

Toro 110-1921

Gasket, Valve Cover

$

$

Currently unavailable

10

Toro 110-0639

Lock, Valve Spring

$

$

Currently unavailable

11

Toro 110-0539

Spring Valve

$

$

Currently unavailable

12

Toro 110-1807

Guide, Valve

$

$

Currently unavailable

13

Toro 110-0068

Gasket, Intake Valve Guide

$

$

Currently unavailable

14

Toro 517-0048

Plug, Welch-Camshaft Opening

$

$

Currently unavailable

15

Toro 104-0575

Washer-Thrust

$

$

Not available

16

Toro 516-0072

Pin, Drive-Bearing stop

$

$

Currently unavailable

17

Toro 104-0776

Shim, Crankshaft End Play (.005)

$

$

Currently unavailable

18

Toro 101-0450

Bearing, Crankshaft Rear Standard (Incl. Ref. #15)

$

$

Currently unavailable

Toro 101-0450-02

Bearing, Crankshaft Rear. 002 Undersize (Incl. Ref. #15)

Note: Not illustrated

$

$

Currently unavailable

Toro 101-0450-10

Bearing, Crankshaft Rear .010 Undersize (Incl. Ref. #15)

Note: Not illustrated

$

$

Currently unavailable

Toro 101-0450-20

Bearing, Crankshaft Rear .020 Undersize (Incl. Ref. #15)

Note: Not illustrated

$

$

Currently unavailable

Toro 101-0450-30

Bearing, Crankshaft Rear .030 Undersize (Incl. Ref. #15)

Note: Not illustrated

$

$

Currently unavailable

19

Toro 870-0257

Nut, Self-Lock

$

$

Currently unavailable

20

Toro 122-0559

Bracket, Remote Oil Filter

$

$

Currently unavailable

21

Toro 526-0174

Washer, Over Bracket

$

$

Currently unavailable

22

Toro 526-0030

Washer, Under Bracket

$

$

Currently unavailable

23

Toro 862-0003

Nut, Hex

$

$

Currently unavailable

24

Toro 122-0469

Filter Oil

$

$

Currently unavailable

25

Toro 122-0476

Base, Remote Oil Filter

$

$

Currently unavailable

26

Toro 502-0804

Connector, Male

$

$

Currently unavailable

27

Toro 800-0027

Screw Cap-Hex Hd.

$

$

Currently unavailable

28

Toro 509-0041

Seal, Oil-Crankshaft Rear

$

$

Currently unavailable

29

Toro 800-0051

Screw Cap-Hex Hd.

$

$

Currently unavailable

30

Toro 850-0050

Washer, Lock-Spring

$

$

Currently unavailable

31

Toro 101-0439

Plate, Bearing-Rear

$

$

Currently unavailable

32

Toro 520-0820

Stud

$

$

Currently unavailable

33

Toro 526-0066

Washer, Flat

$

$

Currently unavailable

34

Toro 101-0415

Gasket, Bearing Plate

$

$

Currently unavailable

35

Toro 110-0197

Insert, Valve Seat-Intake (Standard)

$

$

Currently unavailable

Toro 110-0197-02

Insert, Valve Seat-Intake (.002 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 110-0197-05

Insert, Valve Seat-Intake (.005 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 110-0197-10

Insert, Valve Seat-Intake(.010 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 110-0197-25

Insert, Valve Seat-Intake (.025 Oversize)

Note: Not illustrated

$

$

Currently unavailable

36

Toro 110-2368

BRUSH-SCRAPER, WIDE (18 INCH)

$

$

Currently unavailable

37

Toro 110-3214

LEVER-ACTUATING

$

$

Currently unavailable

Toro 110-3213

PIN-DOWEL

Note: Not illustrated

$

$

Currently unavailable

38

Toro 526-0122

Washer, Flat

$

$

Currently unavailable

39

Toro 800-0540

Screw, Cap-Hex Head (Special)(5/16-18x 1-5/8")

$

$

Currently unavailable

Toro 80045-41

Screw, Cap-Hex Head (Special) 5/16-18 x 2")

Note: Not illustrated

$

$

Currently unavailable

40

Toro 110-3181

SPACER

$

$

Currently unavailable

41

Toro 110-1955

Valve Exhaust

$

$

Currently unavailable

42

Toro 110-1824

GAS-LINE

$

$

Not available

Toro 110-1824-02

Insert, Valve Seat-Exhaust (.002 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 110-1824-05

Insert, Valve Seat-Exhaust (.005 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 110-1824-10

Insert, Valve Seat-Exhaust(.010 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 110-1824-25

Insert, Valve Seat-Exhaust (.025 Oversize)

Note: Not illustrated

$

$

Currently unavailable

43

Toro 120-0735

Tube, Oil-Cylinder Block

$

$

Currently unavailable

44

Toro 516-0212

Pin Dowel-Oil Base

$

$

Currently unavailable

45

Toro 102-1200

Gasket, Oil Base

$

$

Currently unavailable

46

Toro 102-1216

Base, Oil

$

$

Currently unavailable

47

Toro 336-8117

Lead, Low Oil Pressure Cut Off

$

$

Currently unavailable

48

Toro 309-0105

Switch, Low Oil Pressure Cut Off

$

$

Currently unavailable

49

Toro 122-0369

Adapter, Oil Filter

$

$

Currently unavailable

50

Toro 526-0065

Washer, Flat Copper

$

$

Currently unavailable

51

Toro 802-0057

Screw, Cap-Socket Head

$

$

Currently unavailable

52

Toro 502-0806

Elbow, Male (To Filter)

$

$

Currently unavailable

53

Toro 501-0440

Hose, Oil

$

$

Currently unavailable

54

Toro 502-0805

Elbow, Male (From Filter)

$

$

Currently unavailable

55

Toro 801-0046

Screw, Cap Hex Hd.

$

$

Currently unavailable

56

Toro 526-0066

Washer, Flat

$

$

Currently unavailable

57

Toro 120-0140

Spring, By-Pass

$

$

Currently unavailable

58

Toro 120-0398

Plunger, Bypass Valve

$

$

Currently unavailable

59

Toro 502-0053

Elbow, Street 45 Deg.

$

$

Currently unavailable

60

Toro 122-0375

Gasket, Oil Filter Adapter

$

$

Currently unavailable

61

Toro 850-0050

Washer, Lock-Spring

$

$

Currently unavailable

62

Toro 800-0061

Screw, Cap-Hex Head

$

$

Currently unavailable

63

Toro 102-0938

Plug, Oil Drain

$

$

Currently unavailable

64

Toro 102-0743

Gasket, Oil Drain

$

$

Currently unavailable

65

Toro 123-1402

Cap and Indicator,Oil Fill

$

$

Currently unavailable

66

Toro 509-0142

O-Ring, Oil Fill Cap

$

$

Currently unavailable

67

Toro 120-0713

Cup, Intake-Oil Pump

$

$

Currently unavailable

68

Toro 101-0432

Bearing, Crankshaft-Front(Flanged) Standard

$

$

Currently unavailable

Toro 101-0432-02

Bearing, Crankshaft-Front (Flanged .002 Undersize

Note: Not illustrated

$

$

Currently unavailable

Toro 101-0432-10

Bearing, Crankshaft-Front(Flanged) .010 Undersize

Note: Not illustrated

$

$

Currently unavailable

Toro 101-0432-20

Bearing, Crankshaft-Front(Flanged) .020 Undersize

Note: Not illustrated

$

$

Currently unavailable

Toro 101-0432-30

Bearing, Crankshaft-Front(Flanged) .030 Undersize

Note: Not illustrated

$

$

Currently unavailable

69

Toro 120-0491

Pump, Oil

$

$

Currently unavailable

70

Toro 800-0007

Screw, Cap-Hex Hd.

$

$

Currently unavailable

71

Toro 850-0040

Washer, Lock

$

$

Currently unavailable

72

Toro 120-0161

Gasket Kit, Oil Pump

$

$

Currently unavailable

73

Toro 110-3029

Block Assy. (Incl. Ref. #6, 12-18, 29-31, 34-35, 42-43, 68, 74 & 76)

$

$

Currently unavailable

74

Toro 5164141

Pin, Gear Cover Alignment

$

$

Currently unavailable

75

Toro 5174067

Plug,Core Hole

$

$

Currently unavailable

76

Toro 1014405

Bearing, Camshaft

$

$

Currently unavailable

77

Toro 1204398

Plunger, Bypass Valve

$

$

Currently unavailable

78

Toro 1204140

Spring, Bypass Valve

$

$

Currently unavailable

79

Toro 5264066

Washer, Flat-Copper

$

$

Currently unavailable

80

Toro 8014049

Screw, Cap-Hex Head

$

$

Currently unavailable

81

Toro 123-1173

Baffle, Breather Valve

$

$

Currently unavailable

82

Toro 5264018

Washer, Flat

$

$

Currently unavailable

83

Toro 123-1174

Spring, Breather Valve

$

$

Currently unavailable
