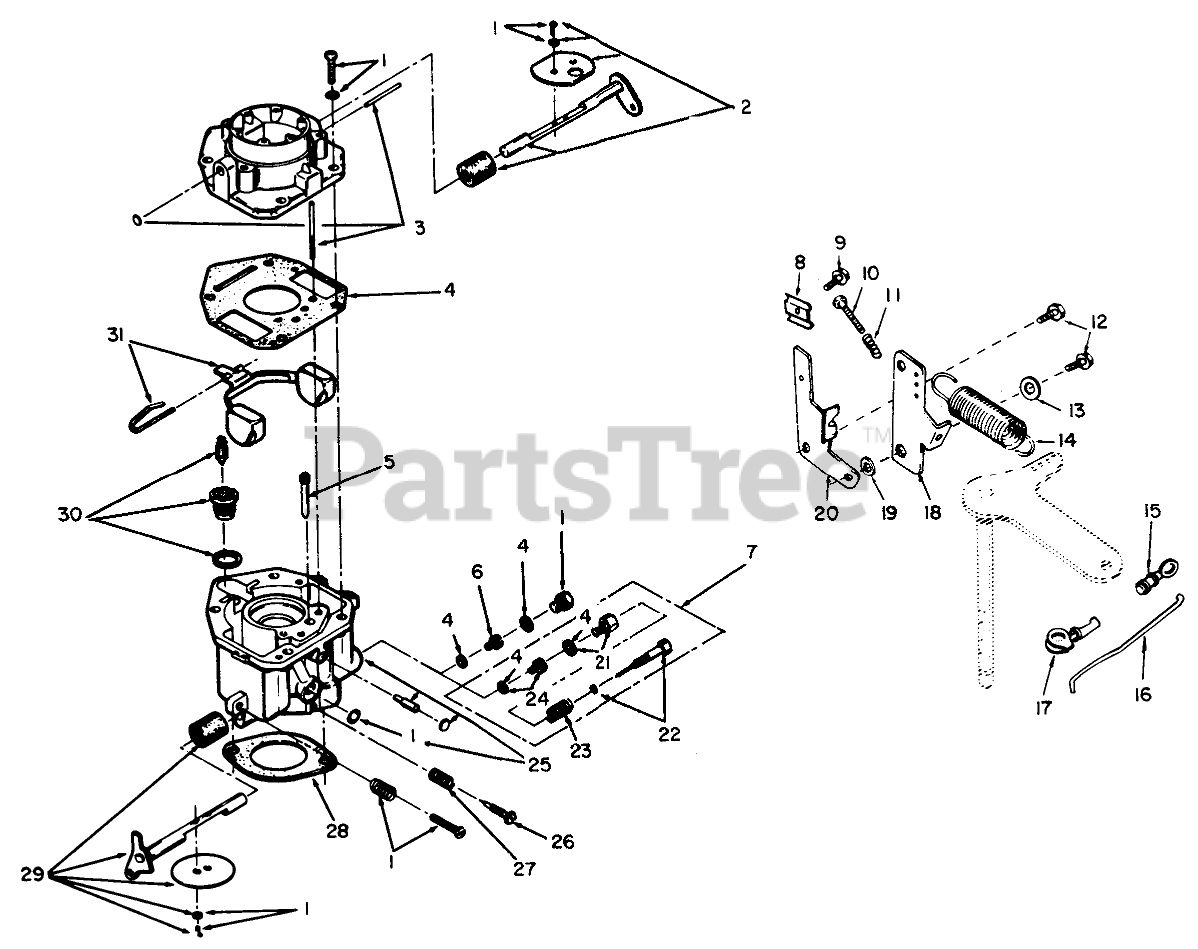

30560 - Toro 52" Rear-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) ENGINE ONAN MODEL NO. B48G-GA020 TYPE NO. 4139E CARBURETOR AND GOVERNOR CONTROL-VARIABLE SPEED (SIDE PULL) Parts Diagram

52" Rear-Discharge Mower Deck

ENGINE ONAN MODEL NO. B48G-GA020 TYPE NO. 4139E CARBURETOR AND GOVERNOR CONTROL-VARIABLE SPEED (SIDE PULL) Parts Diagram

  • Title

1

Toro 146-0322

Screw and Plug Kit

$

$

Currently unavailable

2

Toro 146-0323

Choke, Shaft Kit

$

$

Currently unavailable

3

Intake, Air

Note: Not Sold Separately

$

$

Not available

4

Toro 146-0326

Gasket Kit

$

$

Currently unavailable

5

Toro 146-0337

Jet, Idle

$

$

Currently unavailable

6

Toro 146-0334

Jet, Power

$

$

Currently unavailable

7

Toro 146-0349

Variable Speed Jet Kit-Optional (High Altitude Application)

$

$

Currently unavailable

8

Toro 153-0514

Clamp, Cable

$

$

Currently unavailable

9

Toro 815-0391

Screw, Tapping Hex. Hd.

$

$

Currently unavailable

10

Toro 815-0510

Screw, Tapping Hex Head

$

$

Currently unavailable

11

Toro 150-1398

Spring Idle Setting

$

$

Currently unavailable

12

Toro 815-0436

Screw-Cap Hex Washer Hd.

$

$

Currently unavailable

13

Toro 526-0214

Washer, Flat

$

$

Currently unavailable

14

Toro 150-1214

Spring, Governor

$

$

Currently unavailable

15

Toro 518-0004

Clip, Retaining-Control Rod

$

$

Currently unavailable

16

Toro 150-1924

Rod, Governor Control

$

$

Currently unavailable

17

Toro 518-0406

Clip, Retaining-Control Rod

$

$

Currently unavailable

18

Toro 150-1576

Arm-Governor Control

$

$

Currently unavailable

19

Toro 150-1269

Bushing Control Arm

$

$

Currently unavailable

20

Toro 150-1725

Bracket Cable

$

$

Currently unavailable

21

Toro 146-0340

Retainer, Power Needle (Incl. Gasket)

$

$

Currently unavailable

22

Toro 146-0342

Needle Complete Power

$

$

Currently unavailable

23

Toro 146-0341

Spring, Power Needle

$

$

Currently unavailable

24

Toro 146-0343

PowerJet, Variable (Incl. Gasket)

$

$

Currently unavailable

26

Toro 146-0335

Needle, Idle Adjusting

$

$

Currently unavailable

27

Toro 146-0331

Spring, Idle Adjusting Needle

$

$

Currently unavailable

28

Toro 154-0733

Gasket Carburetor Mounting

$

$

Currently unavailable

29

Toro 146-0324

Throttle Shaft Kit

$

$

Currently unavailable

30

Toro 146-0329

Valve & Seat Kit

$284.99

$

Usually ships in 0 days

0

31

Toro 146-0325

Float Kit

$

$

Currently unavailable

Toro 146-0348

Carburetor, Complete (Incl. Mounting Gasket)

Note: Not illustrated

$

$

Currently unavailable
