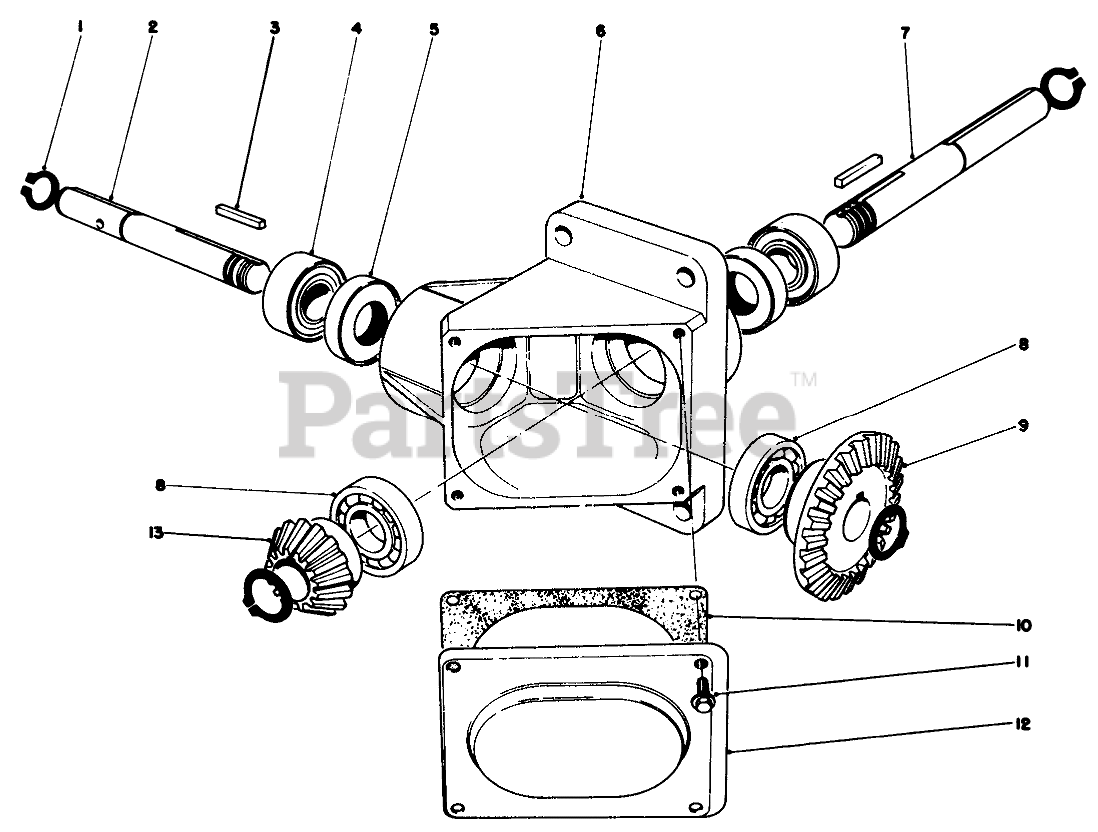

30560 - Toro 52" Rear-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) 48" SNOWTHROWER MODEL NO. 30570 (OPTIONAL) Parts Diagram

52" Rear-Discharge Mower Deck

48" SNOWTHROWER MODEL NO. 30570 (OPTIONAL) Parts Diagram

  • Title
1

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

2

Toro 30-0590

GEAR BOX SHAFT (60120

$

$

Not available

3

Toro 30-0660

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 20+

0

4

Toro 30-0630

ROLLER BEAR (60124)

$

$

Not available

5

Toro 30-0640

Oil Seal
(Superseded to 253-122)

$7.49

$

Usually ships in 3-6 days

0

6

Toro 30-0650

GEAR BOX HSG

$

$

Not available

7

Toro 37-5840

SHAFT-GEAR BOX

$

$

Not available

8

Toro 30-0620

BEARING (R-12)

$

$

Not available

9

Toro 30-0670

BEVEL GEAR (60128)

$

$

Not available

10

Toro 30-0680

GASKET (60129)

$

$

Not available

11

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

12

Toro 30-0690

Cover Plate

$

$

Not available

13

Toro 30-0600

BEVEL GEAR (60121)

$

$

Not available
