30560 - Toro 52" Rear-Discharge Mower Deck (SN: 003000001 - 003999999) (1983) INSTRUMENT PANEL AND STEERING POST ASSEMBLY Parts Diagram

52" Rear-Discharge Mower Deck

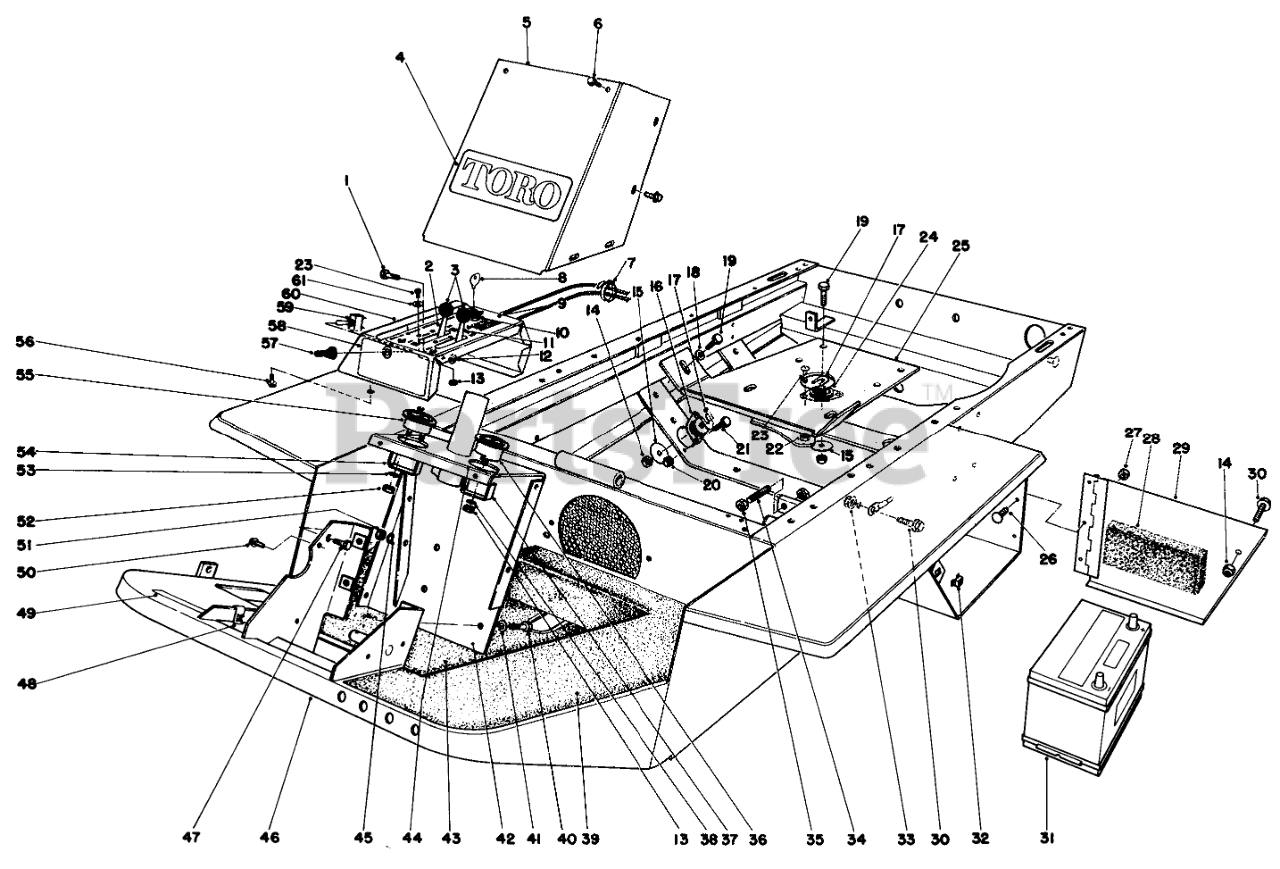

INSTRUMENT PANEL AND STEERING POST ASSEMBLY Parts Diagram

  • Title
1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 44-9300

CHOKE CONTROL

$

$

Not available

3

$9.99

$

Usually ships in 3-6 days

0

4

Toro 43-5110

Decal
(Superseded to 67-1300)

$31.99

$

In Stock, only 2 left!

0

5

Toro 41-8900

Tower Cover
(Superseded to 41-8900-01)

$224.99

$

Usually ships in 3-6 days

0

6

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

9

Toro 44-9370

Decal-Instrument Panel
(Superseded to 68-7350)

$

$

Not available

10

Toro 27-2360

SWITCH

$49.99

$

In Stock, only 1 left!

0

11

Toro 44-9250

THROTTLE CONTROL

$97.99

$

Usually ships in 3-6 days

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 28-1140

WASHER

$6.49

$

Usually ships in 3-6 days

0

16

Toro 44-9390

ENGINE RUBBER MT

$

$

Not available

17

Toro 42-6080

SHIM-AXLE

$38.99

$

Usually ships in 3-6 days

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3251-3

10-24 X 5/8 PAN HD MS

$0.99

$

In Stock, only 2 left!

0

24

Toro 18-8000

RUBBER MOUNT

$

$

Not available

25

Toro 44-9320

Base-Engine
(Superseded to 44-9320-03)

$

$

Not available

26

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Toro 44-9460

BATT BOX FOAM

$

$

Not available

29

Toro 44-8920

Battery Cover
(Superseded to 44-8920-01)

$

$

Not available

30

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

31

Toro 44-9260

Battery Assy.

$

$

Currently unavailable

32

Toro 3290-433

RETAINER NUT

$

$

Not available

33

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

34

Toro 27-6940

STOP PIN PP

$

$

Not available

35

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

36

Toro 12-9990

HOUR METER
(Superseded to 66-2950)

$

$

Not available

37

Toro 218-515

BRACKET F/W

$

$

Not available

38

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

39

Toro 27-3250

NON SKID (TUNNEL)

$

$

Not available

40

Toro 324-6

SCREW-HH
(Superseded to 1-800811)

$11.99

$

In Stock, only 3 left!

0

41

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

42

Toro 42-2580

Steering Post
(Superseded to 42-2580-01)

$

$

Not available

43

Toro 27-3260

NON-SKID-FLOOR

$

$

Not available

44

Toro 41-8910

INSTRUCTION DECAL

$

$

Not available

45

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

46

Toro 44-9170

FRAME WA

$

$

Not available

47

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

48

Toro 3290-192

SPEED NUT

$

$

Not available

49

Toro 27-7320

DECAL-PEDAL, TRACTION
(Superseded to 93-7836)

$

$

Not available

50

Toro 32104-60

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

51

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

52

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

53

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

54

Toro 39-9600

MTG CLAMP F/W GUAGE

$

$

Not available

55

Toro 33-0990

AMMETER GAUGE ASSY

$

$

Not available

56

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

57

Toro 218-473

BOOT-SWITCH

$21.99

$

Usually ships in 3-6 days

0

58

Toro 46-3460

BY-PASS DECAL

$

$

Not available

59

Toro 6-1659

Switch-Toggle (Incl. Ref.#57)

$83.99

$

Usually ships in 3-6 days

0

60

Toro 46-3350

Instrument Panel
(Superseded to 46-3350-01)

$150.99

$

Usually ships in 3-6 days

0

61

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0
