30560 - Toro 52" Rear-Discharge Mower Deck (SN: 003000001 - 003999999) (1983) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4051C CRANKSHAFT AND FLYWHEEL Parts Diagram

52" Rear-Discharge Mower Deck

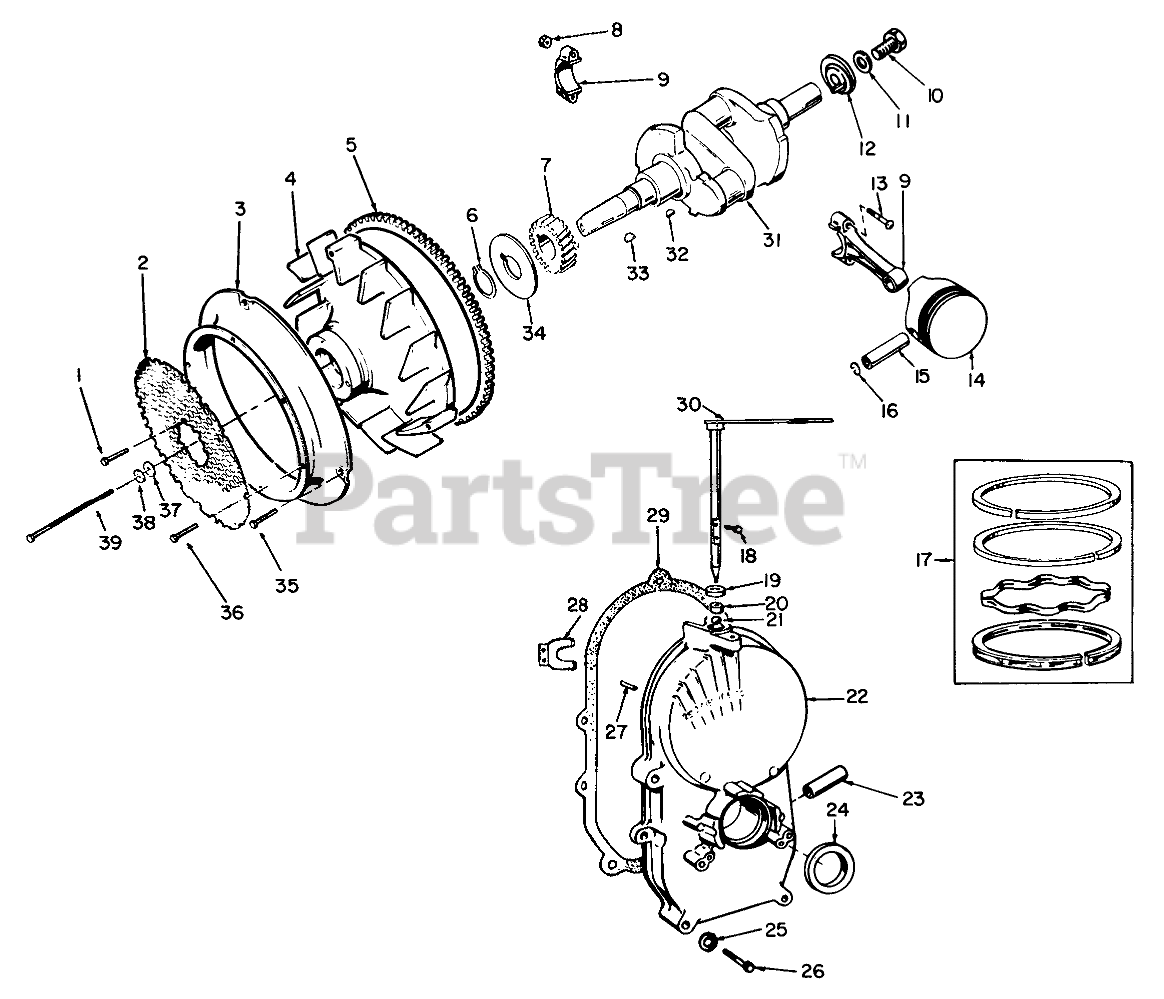

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4051C CRANKSHAFT AND FLYWHEEL Parts Diagram

  • Title

1

Toro 821-0014

Screw, Cap-Hex Head Locking

$

$

Currently unavailable

2

Toro 134-4120

Guard, Flywheel

$

$

Currently unavailable

3

Toro 1343847

Venture, Blower Wheel

$

$

Currently unavailable

4

Toro 1343912

Flywheel (Incl. Ref. #5)

$

$

Currently unavailable

5

Toro 104-0779

Gear, Ring

$

$

Currently unavailable

6

Toro 518-0014

Ring Retaining

$

$

Currently unavailable

7

Toro 1040032

Gear Crankshaft

$

$

Currently unavailable

8

Toro 870-0302

Nut, Hex-Crown Lock

$

$

Currently unavailable

9

Toro 1140257

Rod, Connecting-Standard (Incl. Ref. #8 & 13)

$

$

Currently unavailable

Toro 114-0257-10

Rod Connecting (.010 Undersize)(Incl. Ref. #8 & 13)

Note: Not illustrated

$

$

Currently unavailable

Toro 114-0257-20

Rod Connecting (.020 Undersize)(Incl. Ref. #8 & 13)

Note: Not illustrated

$

$

Currently unavailable

Toro 114-0257-30

Rod, Connecting (.030 Undersize)(Incl. Ref. #8 & 13)

Note: Not illustrated

$

$

Currently unavailable

10

Toro 801-0050

Screw, Cap Hex Hd.

$

$

Currently unavailable

11

Toro 850-0050

Washer, Lock-Spring

$

$

Currently unavailable

12

Toro 104-1156

SPACER

$7.49

$

In Stock, only 2 left!

0

13

Toro 114-0240

Bolt, Special-Connecting Rod

$

$

Currently unavailable

14

Toro 112-0186

Piston and Pin-Standard (Incl. Ref. #15 & 16)

$

$

Currently unavailable

Toro 112-0186-05

Piston and Pin (.005 Oversize) (Incl. Ref. #15 & 16)

Note: Not illustrated

$

$

Currently unavailable

Toro 112-0186-10

Piston and Pin (.010 Oversize) (Incl. Ref. #15 & 16)

Note: Not illustrated

$

$

Currently unavailable

Toro 112-0186-20

Piston and Pin (.020 Oversize) (Incl. Ref. #15 & 16)

Note: Not illustrated

$

$

Currently unavailable

Toro 112-0186-30

Piston and Pin (.030 Oversize) (Incl. Ref. #15 & 16)

Note: Not illustrated

$

$

Currently unavailable

Toro 112-0186-40

Piston and Pin (.040 Oversize) (Incl. Ref. #15 & 16)

Note: Not illustrated

$

$

Currently unavailable

15

Toro 112-0122

Pin, Piston

$

$

Currently unavailable

16

Toro 518-0311

Ring, Retaining

$

$

Currently unavailable

17

Toro 113-0189

Ring Set, Piston-Standard

$

$

Currently unavailable

Toro 113-0189-05

Ring Set, Piston (.005 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 113-0189-10

Ring Set, Piston (.010 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 113-0189-20

Ring Set, Piston (.020 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 113-0189-30

Ring Set, Piston (.030 Oversize)

Note: Not illustrated

$

$

Currently unavailable

Toro 113-0189-40

Ring Set, Piston (.040 Oversize)

Note: Not illustrated

$

$

Currently unavailable

18

Toro 815-0046

Screw, Machine-Pan Hd.

$

$

Currently unavailable

19

Toro 510-0014

Ball, Bearing-Governor Shaft

$

$

Currently unavailable

20

Toro 510-0105

Bearing, Governor Shaft

$

$

Currently unavailable

21

Toro 509-0008

Seal, Oil-Governor Shaft

$

$

Currently unavailable

22

Toro 103-0669

Gear Case Assembly (Incl. Ref. #1 8-21, 23-24, 27-28 & 30)

$

$

Currently unavailable

23

Toro 149-1299

Tube, Vacuum Port

$

$

Currently unavailable

24

Toro 509-0040

Seal, Oil-Crankshaft

$

$

Currently unavailable

25

Toro 526-0065

Washer, Flat Copper

$

$

Currently unavailable

26

Toro 800-0032

Screw Cap Hex Hd.

$

$

Currently unavailable

Toro 800-0545

Screw Cap Hex Hd. Special

Note: Not illustrated

$

$

Currently unavailable

27

Toro 516-0130

Pin, Dowel-Governor Cup Stop

$

$

Currently unavailable

28

Toro 150-1187

Yoke, Governor Shaft

$

$

Currently unavailable

29

Toro 103-0408

Gasket, Gearcase Mounting

$

$

Currently unavailable

30

Toro 150-1470

Shaft and Arm, Governor

$

$

Currently unavailable

31

Toro 104-1419

STRIP-BULB

$

$

Currently unavailable

32

Toro 515-0001

Key Crankshaft Gear

$

$

Currently unavailable

33

Toro 515-0227

Key Flywheel

$

$

Currently unavailable

34

Toro 104-0043

Washer, Gear Retaining

$

$

Currently unavailable

35

Toro 821-0010

Screw Cap Hex Washer Hd.

$

$

Currently unavailable

36

Toro 815-0518

Screw Tapping Hex Washer Hd.

$

$

Currently unavailable

37

Toro 526-0017

Washer, Flat

$

$

Currently unavailable

38

Toro 850-0055

Washer, Lock-Spring

$

$

Currently unavailable

39

Toro 104-0170

Screw, Cap-Hex Head

$

$

Currently unavailable
