30560 - Toro 52" Rear-Discharge Mower Deck (SN: 003000001 - 003999999) (1983) CUTTING UNIT MODEL NO. 30562 Parts Diagram

52" Rear-Discharge Mower Deck

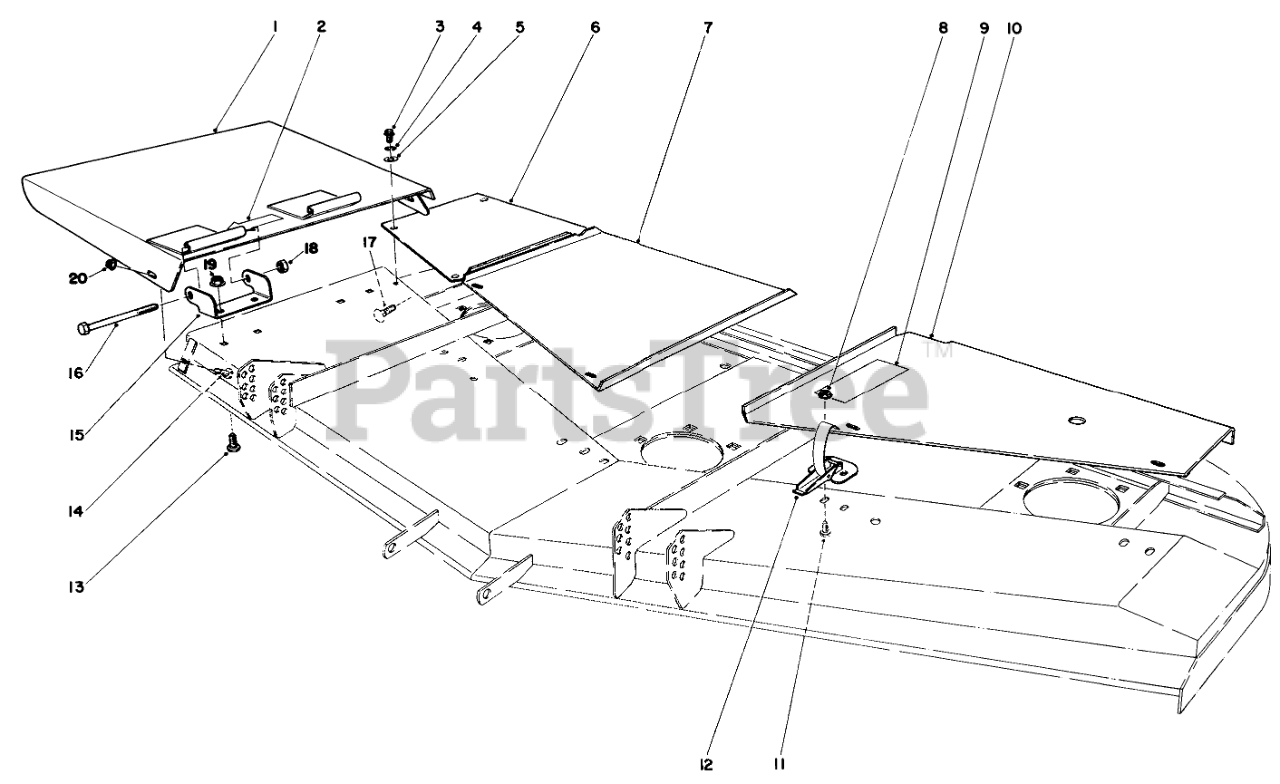

CUTTING UNIT MODEL NO. 30562 Parts Diagram

  • Title

1

Toro 44-6320

Deflector
(Superseded to 14-0909)

$403.99

$

Usually ships in 3-6 days

0

2

Toro 26-7120

DECAL - BLADE LINE

$

$

Not available

3

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

4

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 44-6280

RH DECK COVER R

$

$

Not available

7

Toro 44-6270

CTR DECK COVER R

$

$

Not available

8

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

9

Toro 42-6860

DECAL

$

$

Not available

10

Toro 44-6290

Cover-Deck L.H.
(Superseded to 44-6290-01)

$

$

Not available

11

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

12

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

13

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

15

Toro 26-1950

HINGE BRKT

$

$

Not available

16

Toro 325-17

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

17

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

18

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

19

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
