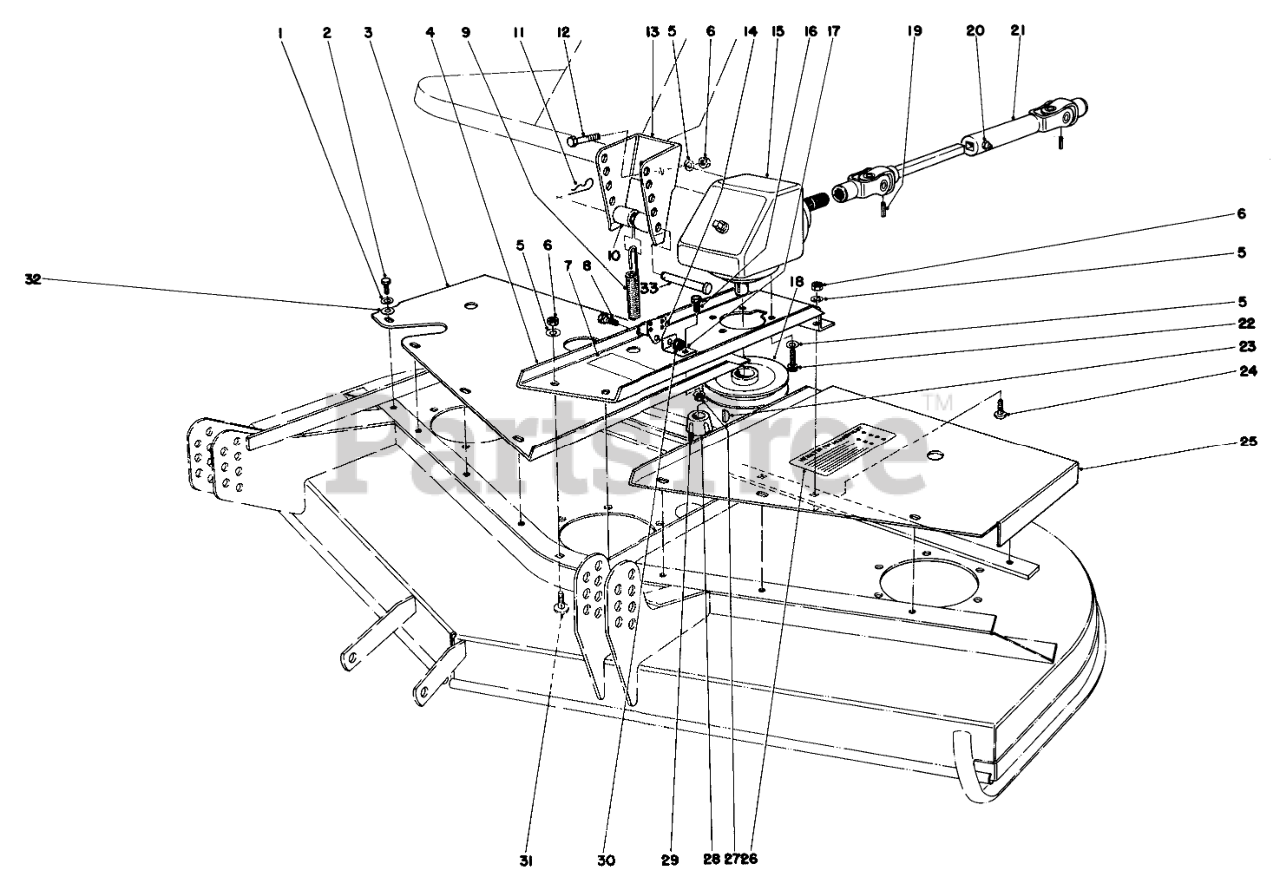

30560 - Toro 52" Rear-Discharge Mower Deck (SN: 003000001 - 003999999) (1983) CUTTING UNIT MODEL NO. 30560 Parts Diagram

52" Rear-Discharge Mower Deck

CUTTING UNIT MODEL NO. 30560 Parts Diagram

  • Title
1

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

3

Toro 40-0410

RH COVER WA R

$

$

Not available

4

Toro 40-0360

Base-Bear Box

$

$

Not available

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

7

Toro 44-6470

Decal-Caution
(Superseded to 55-4300)

$14.99

$

Usually ships in 3-6 days

0

8

Toro 46-3380

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

9

Toro 46-3200

Spring-Extension
(Superseded to 46-3200-01)

$99.99

$

Usually ships in 3-6 days

0

10

Toro 40-0300

SPACER

$

$

Not available

11

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

12

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 46-2620

SPRING BRACKET R

$106.99

$

Usually ships in 3-6 days

0

14

Toro 46-3190

SPRING END R

$

$

Not available

15

Toro 8-0909

GEAR BOX ASM

$

$

Not available

16

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 46-3590

EXTENSION BRKT R

$47.99

$

Usually ships in 3-6 days

0

18

Toro 27-6110

PULLEY WA BO

$

$

Not available

19

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

20

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

21

Toro 27-4520

UNIVERSAL JOINT

$

$

Not available

22

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

23

Toro 3257-5

KEY-WOODRUFF

$5.99

$

Usually ships in 3-6 days

0

24

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

25

Toro 424660

Cover L.H.

$

$

Currently unavailable

26

Toro 42-6860

DECAL

$

$

Not available

27

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 27-6140

BUSHING-LOCK, TAPER

$103.99

$

Usually ships in 3-6 days

0

29

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 20+

0

30

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

31

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

32

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0
