30560 - Toro 52" Rear-Discharge Mower Deck (SN: 002000001 - 002999999) (1982) 48" SNOWTHROWER MODEL NO. 30570 (OPTIONAL) Parts Diagram

52" Rear-Discharge Mower Deck

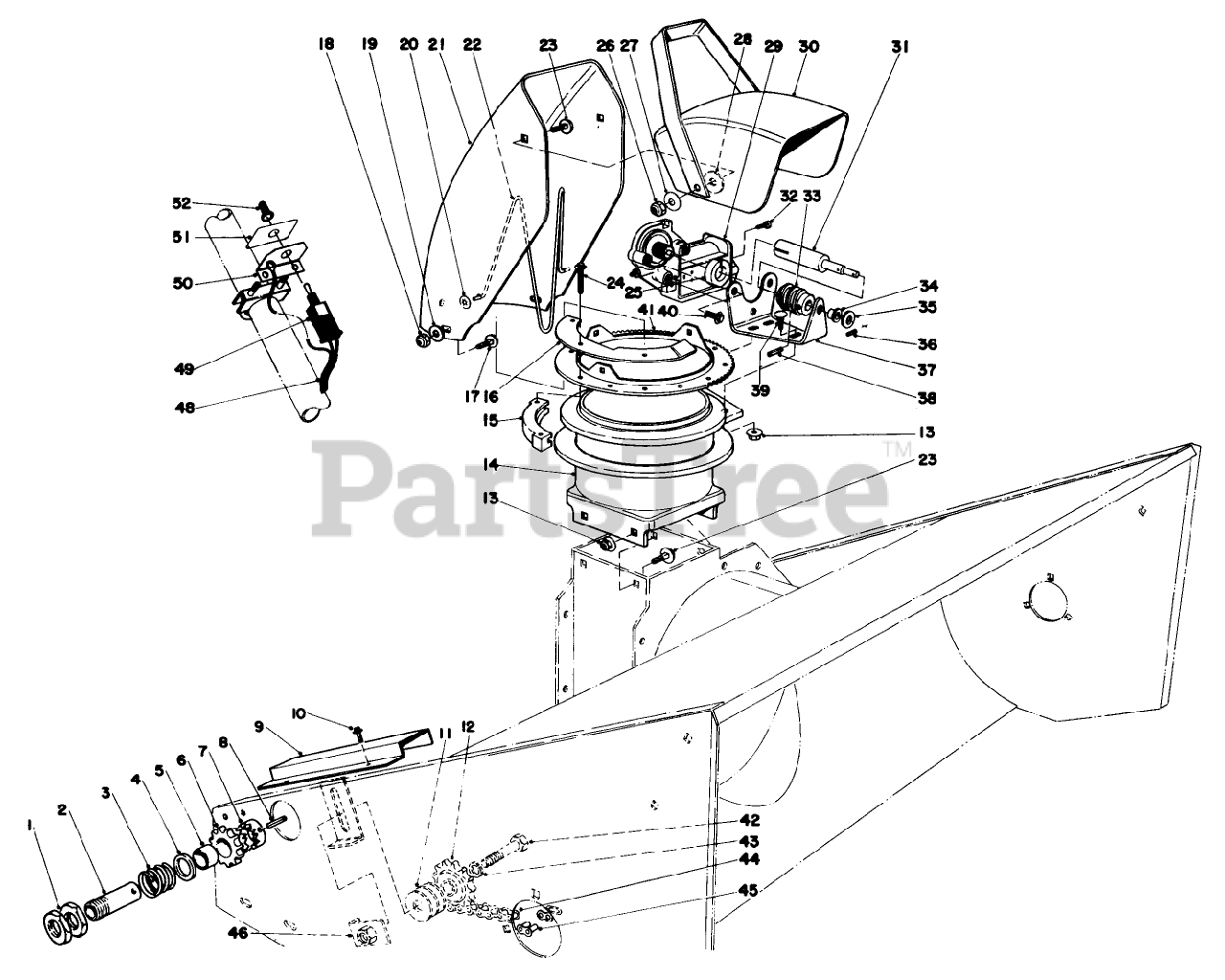

48" SNOWTHROWER MODEL NO. 30570 (OPTIONAL) Parts Diagram

  • Title

1

Nut-Thin

$

$

Not available

2

Clutch Sleeve

$

$

Not available

3

Spring Compression

$

$

Not available

6

Clutch Sprocket

$

$

Not available

7

Clutch Collar

$

$

Not available

8

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

9

Toro 32-1620

Chain Cover

$

$

Not available

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 30-0090

IDLER SPRKT (60016)

$209.99

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 39-4870

Chute Transition

$

$

Not available

15

Toro 25-5450

RETAINER-CHUTE

$36.99

$

In Stock, only 2 left!

0

16

Toro 39-4900

Stop-Chute Rotator

$

$

Not available

17

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

18

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

21

Toro 25-5440

Upper Chute
(Superseded to 92-6335-01)

$189.99

$

Usually ships in 3-6 days

0

22

Toro 12-2040

WIRE-CHUTE

$

$

Not available

23

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

24

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

25

Toro 39-4940

SPLIT COLLAR

$

$

Not available

26

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

27

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

28

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

29

Toro 39-4920

ELEC GEAR MOTOR

$

$

Not available

30

Toro 11-7120

Deflector
(Superseded to 11-7120-01)

$117.99

$

Usually ships in 3-6 days

0

31

Toro 39-4930

WORM GEAR SHAFT

$

$

Not available

32

Toro 3274-26

SCREW-HSH

$2.49

$

Usually ships in 3-6 days

0

33

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

34

Toro 256-255

FLANGE BSHG #FF-310-3

$

$

Not available

35

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 32121-20

3/32 X 9/16 ROLL PIN

$0.99

$

Usually ships in 3-6 days

0

37

Toro 39-4910

Motor Mount

$

$

Not available

38

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

39

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

40

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

41

Toro 39-4890

RING - CHUTE SWIVEL

$

$

Not available

42

Toro 327-6

SCREW-HH

$13.99

$

In Stock, only 1 left!

0

43

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

44

Toro 30-0160

ROLLER CHAIN (60023)

$

$

Not available

45

Toro 2710-11

LINK-CHAIN

$5.99

$

In Stock, only 1 left!

0

46

Toro 30-0450

NUT PLATE WA (60095)

$

$

Not available

48

Toro 39-4990

WIRE HARNESS

$

$

Not available

49

Toggle Switch

$

$

Not available

50

Toggle Switch Mount

$

$

Not available

51

Toro 39-4970

DECAL

$

$

Not available

52

Toro 218-473

BOOT-SWITCH

$20.99

$

Usually ships in 3-6 days

0

Toro 37-5640

Slip Clutch (Incl. Ref. #1-8)

Note: Not illustrated

$

$

Not available

Toro 394950

Toggle Switch Assembly (Incl. Ref. #49-52)

Note: Not illustrated

$

$

Currently unavailable
