30560 - Toro 52" Rear-Discharge Mower Deck (SN: 002000001 - 002999999) (1982) 48" SNOWTHROWER MODEL NO. 30570 (OPTIONAL) Parts Diagram

52" Rear-Discharge Mower Deck

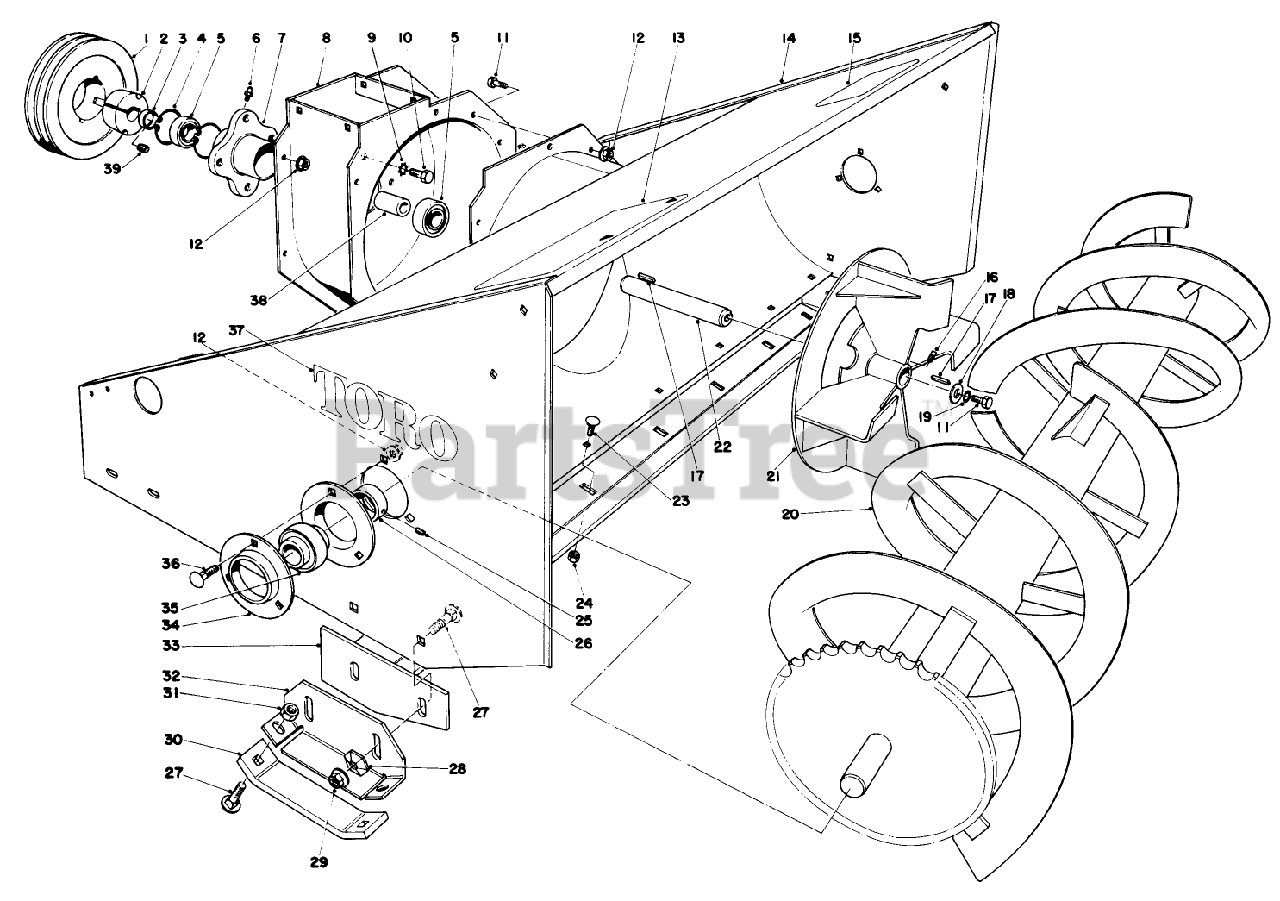

48" SNOWTHROWER MODEL NO. 30570 (OPTIONAL) Parts Diagram

  • Title
1

Toro 37-5100

TAPERLOCK PULLEY

$

$

Not available

2

Toro 37-5150

Taper Lock Bushing

$

$

Not available

3

Toro 37-5170

SPACER

$

$

Not available

4

Toro 32151-20

RETAINING RING

$

$

Not available

5

Toro 251-276

BEARING

$89.99

$

Usually ships in 3-6 days

0

6

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

7

Toro 32-4950

SPINDLE HOUSING

$

$

Not available

8

Toro 39-5030

BLOWER HSG WA

$

$

Not available

9

Toro 3255-2

WASHER-LOCK, EXT

$1.49

$

Usually ships in 3-6 days

0

10

Toro 3213-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 39-5020

Decal-Rear Weight

$

$

Not available

14

Toro 39-5010

Auger Housing

$

$

Not available

15

Toro 29-6350

Decal-Warning
(Superseded to 54-9910)

$

$

Not available

16

Toro 3243-1

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

17

Toro 31-0700

Square Key
(Superseded to 3-6168)

$12.99

$

In Stock, only 2 left!

0

18

Toro 3-6715

WASHER

$

$

Not available

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 32-6140

Auger

$

$

Not available

21

Toro 32-6130

IMPELLER WA 60096

$

$

Not available

22

Toro 37-5240

IMPELLER SHAFT

$

$

Not available

23

Toro 3230-19

SCREW-CARR

$6.49

$

In Stock, only 3 left!

0

24

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

25

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

26

Toro 251-77

COLLAR-LOCK, BEARING

$12.99

$

Usually ships in 3-6 days

0

27

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 3290-224

LOCKWASHER-PYRAMID

$38.99

$

Usually ships in 3-6 days

0

29

Toro 32128-18

FLANGE NUT W/LG FLG

$

$

Not available

30

Toro 37-5110

SKID SHOE R

$

$

Not available

31

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

32

Toro 374950

Skid-Mount Plate

$

$

Currently unavailable

33

Toro 37-5380

SCRAPER WA

$

$

Not available

34

Toro 251-287

FLANGE

$

$

Not available

35

Toro 251-253

Bearing (Incl. Ref. #25 & 26)

$24.99

$

Usually ships in 3-6 days

0

36

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

37

Toro 27-4600

DECAL

$

$

Not available

38

Toro 31-0540

SLEEVE 16107

$

$

Not available

39

Toro 3247-4

SCREW-SET

$5.99

$

Usually ships in 3-6 days

0
