30558 - Toro 52" Bag Kit (SN: 006000001 - 006999999) (1986) IDLER PULLEY & DEFLECTOR ASSEMBLY Parts Diagram

52" Bag Kit

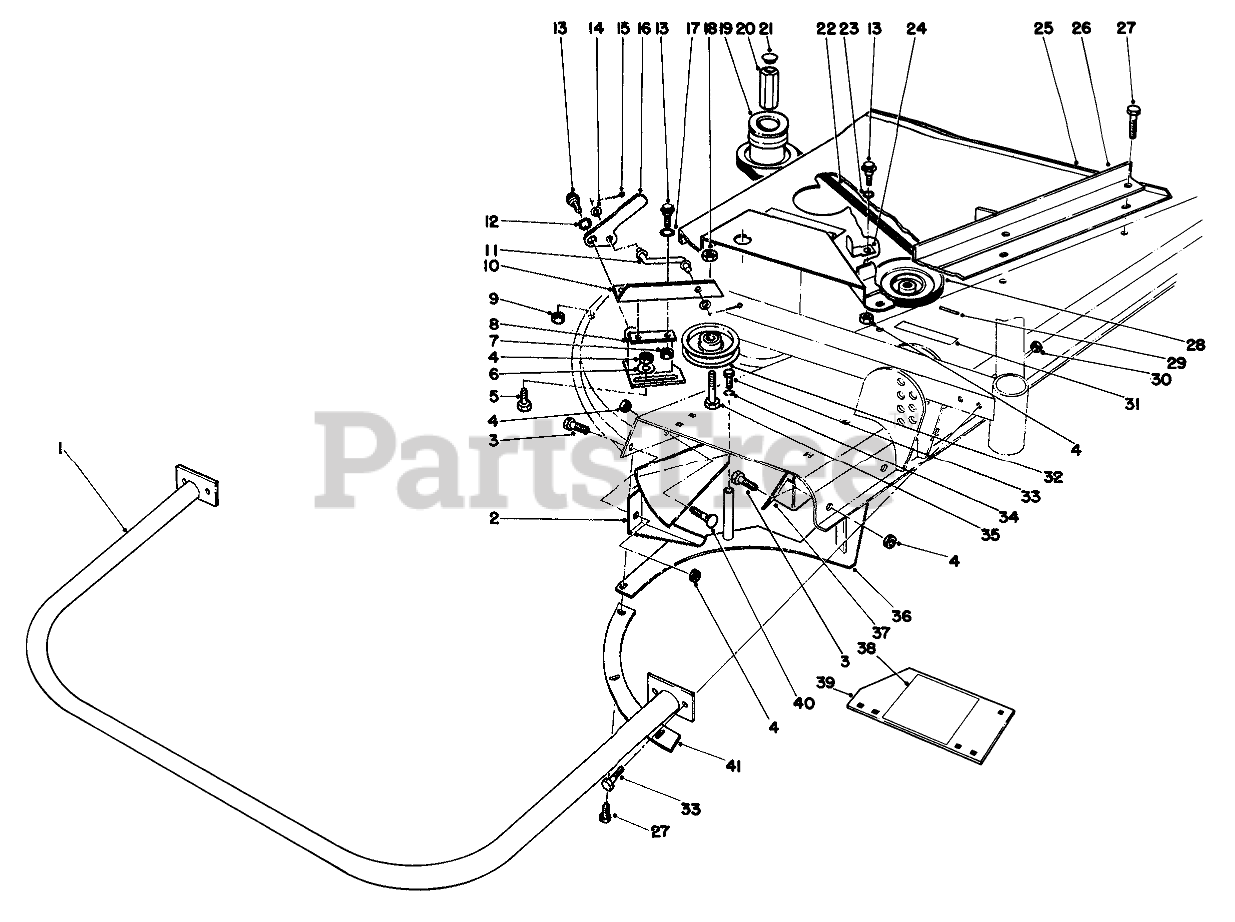

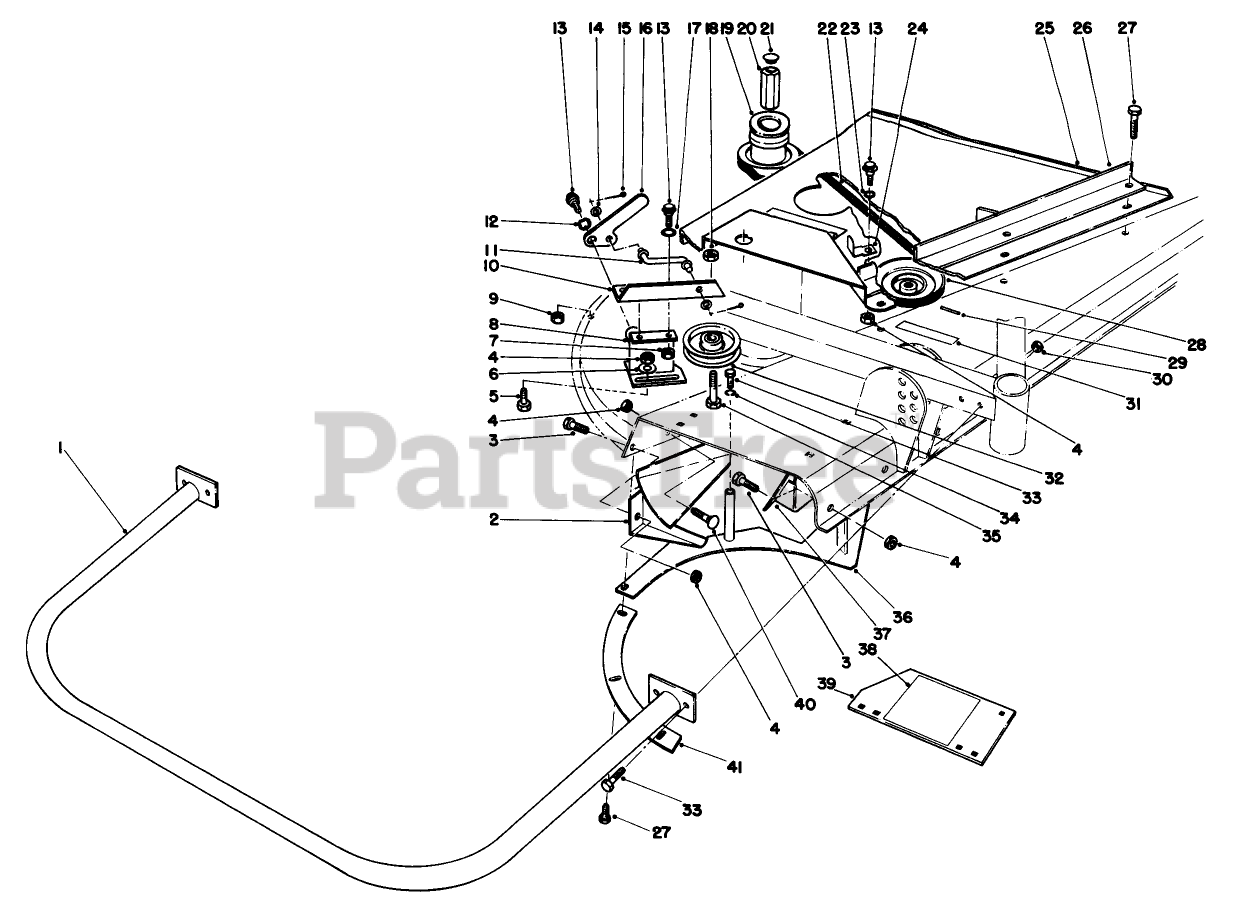

IDLER PULLEY & DEFLECTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 44-7570

Bumper

$

$

Not available

2

Toro 59-5350

Deflector-Rear
(Superseded to 59-5350-01)

$262.99

$

Usually ships in 3-6 days

0

3

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-56

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 59-4920

Bracket-Idler
(Superseded to 59-4920-01)

$278.99

$

Usually ships in 3-6 days

0

9

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

10

Toro 59-4930

Slide-Idler
(Superseded to 59-4930-01)

$90.99

$

Usually ships in 3-6 days

0

11

Toro 59-4940

Idler Rod
(Superseded to 59-4940-01)

$167.99

$

Usually ships in 3-6 days

0

12

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

13

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 56-4900

Lever-Idler
(Superseded to 56-4900-01)

$33.99

$

Usually ships in 3-6 days

0

17

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

18

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

19

Toro 59-5170

Pulley (Splined)
(Superseded to 59-5170-03)

$574.99

$

Usually ships in 3-6 days

0

20

Toro 59-5190

NUT-PULLEY

$171.99

$

Usually ships in 3-6 days

0

21

Toro 59-5310

NUT-COVER

$1.99

$

Usually ships in 3-6 days

0

22

Toro 59-5270

V-BELT

$37.99

$

Usually ships in 3-6 days

0

23

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

24

Toro 59-5290

Latch
(Superseded to 59-5290-01)

$32.99

$

Usually ships in 3-6 days

0

25

Toro 59-5280

RH COVER WA R

$

$

Not available

26

Toro 43-1130

Spring Bracket

$

$

Not available

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 56-4810

Pulley-Gear Box
(Superseded to 56-4810-03)

$270.99

$

Usually ships in 3-6 days

0

29

Toro 32121-8

PIN-ROLL, SLOTTED

$1.49

$

Usually ships in 3-6 days

0

30

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

31

Toro 43-1120

WARNING DECAL

$

$

Not available

32

Toro 56-4920

PULLEY-IDLER

$88.99

$

Usually ships in 3-6 days

0

33

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

34

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

35

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Toro 44-7770

Rear Shelf
(Superseded to 44-7770-01)

$524.99

$

Usually ships in 3-6 days

0

37

Toro 46-2350

Front Deflector
(Superseded to 92-6297-01)

$142.99

$

Usually ships in 3-6 days

0

38

Toro 40-5730

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 3 left!

0

39

Toro 44-5750

Cover Plate Assembly (Incl. Ref. #38)

$

$

Not available

40

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

41

Toro 44-7780

Shelf-RH
(Superseded to 44-7780-01)

$34.99

$

Usually ships in 3-6 days

0

Toro 44-5480

BLADE-HIGH SAIL

Note: Not illustrated

$25.99

$

Usually ships in 3-6 days

0
